Airport perimeter 358 security mesh durable for military sites ISO SGS approved
Airport perimeter 358 security mesh durable for military sites ISO SGS approved
Specifications
Brand Name :
Alon
Model Number :
DQ-WF2
Certification :
ISO SGS
Place of Origin :
Chin
MOQ :
200 square meter
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 square meter one week
Delivery Time :
10 days also according to the order
Packaging Details :
Pallets or bulk or as clients' need
Material :
steel
Height*Width :
2007*2515 mm
O/A Length :
2700 mm
Color :
Green or as your need
opening :
12.7*76.2(3"*1/2") mm
Size :
can be customized
Description

Anti-cutting steel airport perimeter 358 security mesh welded wire mesh panels

Description:

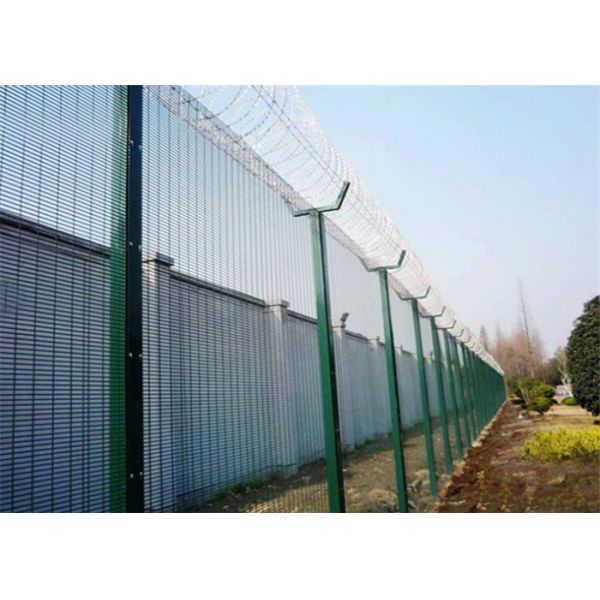

358 mesh – as known airport fence , prison fence , is a high security mesh system widely used on high security installations such as prisons and military sites. Its has small apertures making it extremely difficult to cut the wires and near impossible to climb

Specification:

specification for 358 Security System

MESH PANELS POST
Wire Opening Height*Width Section O/A Length Total Number of Fixings
mm mm mm mm mm Inters-1 Clamp Bar Comers-2 Clamp Bar
4 12.7*76.2(3"*1/2") 2007*2515 60*60*2.5 2700 7 14
4 12.7*76.2(3"*1/2") 2004*2515 60*60*2.5 3100 9 18
4 12.7*76.2(3"*1/2") 2997*2515 80*80*2.5 3800 11 22
4 12.7*76.2(3"*1/2") 3302*2515 80*80*2.5 4200 12 24
4 12.7*76.2(3"*1/2") 3607*2515 100*60*3 4500 13 26
4 12.7*76.2(3"*1/2") 3607*2515 100*100*3 4500 13 26

specification for 358 Maximum Security System

MESH PANELS POST
Wire Opening Height*Width Section O/A Length Total Number of Fixings
mm mm mm mm mm Inters-1 Clamp Bar Comers-2 Clamp Bar
4 12.7*76.2(3"*1/2") 4204*2515 100*100*4 5200 15 30
4 12.7*76.2(3"*1/2") 4496*2515 100*100*5 5500 16 32
4 12.7*76.2(3"*1/2") 5207*2515 120*120*5 6200 18 36

The surface treatment

1)Hot dipped galvanized
Hot-dip galvanizing is the process of dipping fabricated steel in a bath of molten zinc to

form a tightly-bonded alloy coating that provides superior corrosion protection to steel.

Advantages of Hot Dip Galvanizing

*More cost effective for long term

*Long service life

*Low maintenance

*Corrosion resistant - a protective coat of armor

*Less inspection required on job sites

*Self healing (scratches and cuts in coating)

2)Electro-galvanized and Powder coated
Electric galvanizing takes place before manufacture the product. This generally results in a better appearance.

Powder coating is a dry finishing method in which electrically charged particles of pigmented resins are

sprayedonto a product, makes the product become colorful. We can do powder coated based on RAL color card.

Advantages of Electro-galvanized and Powder coated

*Economics

*Safety

*Environmental

*Saves money

*Elegant appearance

Feature:

1.Anti-climb:more small openings,no toe or finger holds.
2.Anti-cut:robust wir and welded joints make cutting very different
3. High-strength:the superior welding technique and process control create a stronger fusion between the wires.

Application:

1. Play ground anti-climb anti-cut high-strength
2.Prison
3. airport
4.Municipal
5. Greening
Airport perimeter 358 security mesh durable for military sites ISO SGS approved
