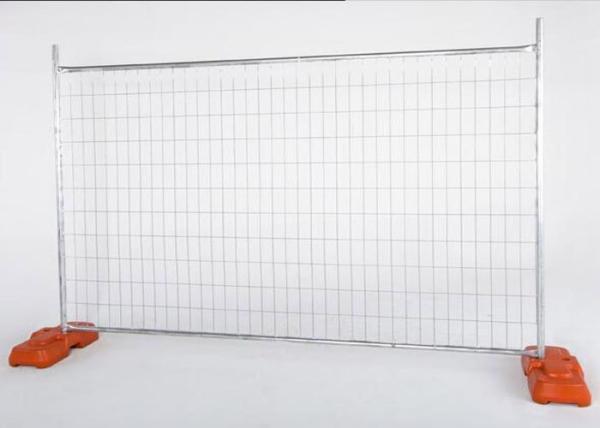

Hot Dipped Galvanized Welded Mesh Temporary Fence Panel for Outdoor Building Site
Temporary fence is also known as mobile fence, portable fence and removable fence. it’s consist of welded mesh
panel, v mesh panel, anti-climb mesh panel or chain link wire with fence feet ,metal clamp to make a fence system.
it is perfect for a variety of different uses as the panels are easy and fast to erect. It is ideal for any project,
including: Special Events, Domestic Housing Sites, Exhibitions, Concerts.
Fence Top Clips
One side solid square bar, one side solid round bar with solid square bar connector.
Cold galvanized and powder coated.

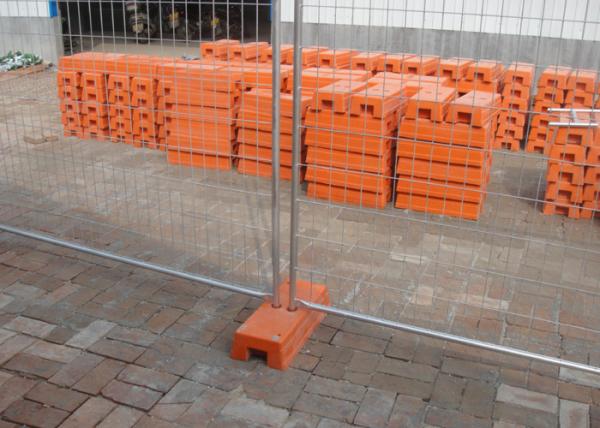

Fence Feet:
Plastic Feet & Metal Feet
Plastic Feet: Injection Plastic Feet & Blow Moulded Plastic Feet (Can be filled with concrete)
Hand welded with hot dip galvanised coating.
We supply the highest quality temporary fence brace; each designed for easy installation by using:
Two clamps Three bases All of our fence stays:
Hot Dip Galvanised coat – 42 microns
Lightweight for installing or moving , while giving strong performance.
.
Temporary Fence | |
Wire Gauge | 3.2mm, 3.5mm, 4.0mm, 4.5mm or as request |
Opening Mesh | 60*150mm, 75*75mm, 75*100mm, 50*100mm etc |
Fence Frame Pipe | 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc |
Regular Size | 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as request |
Plastic Feet | 600*220*150mm, or 580*245*130mm |
Surface Treatment | Hot-dipped galvanized or electric galvanized,PVC coated |
Part | Welded mesh Panel, Square Tube Frames,Plastic feet Clamp,StaySupport |
Application:
1 Temporary fence panel to secure construction sites and private property.
2 Temporary fencing panel of residential housing sites.
3 Temporary fencing panel and crowd control barriers for major public. events, , concerts, festivals,
4 Temporary fence panel safety fencing for swimming pools
Panel Size | Infill Mesh Size | Wire Diameter | Frame Pipe | Surface Treatment |
1.8X2.4m | 50X150mm 60X150mm 75X150mm 50X200mm 100X300mm | 3.0-5.0mm | OD. 25mm 32mm 38mm 40mm 42mm 48mm | Hot Dipped Galvanized Powder Coated |
2.1X2.4m | ||||
1.8X2.1m | ||||
1.8X2.9m | ||||
2.1X2.9m | ||||
2.25X2.4m | ||||
2.1X3.3m |
