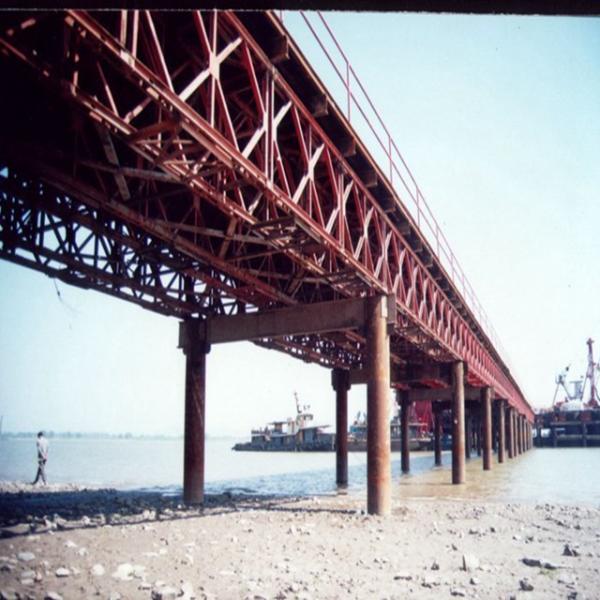

Type 100 Steel Suspension Emergency Bailey Bridge
Type 100 Steel Suspension Emergency Bailey Bridge
Specifications
Brand Name :
Harzone
Certification :
ISO9001:2015
Place of Origin :
CHINA HUBEI WUHAN
MOQ :
1set
Price :
Negotiated
Supply Ability :
50000 Ton/Tons per Year
Grade :
Q345
Type :
Steel Girder Bridges
Application :
Emergency Bridges
Processing Service :
Bending, Cutting, Welding, Decoiling,Punching
Certificate :
ISO9001
Color :
any color you want
Structure type :
Steel Truss Bridge
Installation :
Engineers Guidance
Description

Type 100 Steel Bailey Bridge Bailey Suspension Bridge

Type 100 Steel Bailey Bridge Bailey Suspension Bridge Description:

Type 100 Steel Bailey Bridge Bailey Suspension Bridge is convenient steel bridge , the bridge maximum important feature is to reach a range of spans, bear carrying capacity, bright and handy components, easygoing to demolish and strong adaptability can be quickly accomplished with humble tools and manpower.

Type 100 Steel Bailey Bridge Bailey Suspension Bridge adopts prefabricated design, featuring a great span, small construction period, fast erection, many reuses of bridge components. It has outstanding interchangeability and connection performance. The bridge structure can be designed according to the bridge span and load requirement, which can quickly construct a temporary or semi-permanent bridge, and the bridge surface protection can be paint or hot-dip galvanized.

Type 100 Steel Bailey Bridge Bailey Suspension Bridge Specifications:

Type CB100
Panel Dimension 1.448*3.048m
Carriageway Width 4.2m/7.35m
Deck type steel deck/ wood deck
Designed Span 6-60m
Designed Load HS25-44,Axle Load 20t,tracked load 50t

Type 100 Steel Bailey Bridge Bailey Suspension Bridge contains of girder, deck, frame connecting structure, bridge end structure and gateway structure. The girder is combined of panel, panel pin (include safety circlip) and chord reinforcement. The deck is combined of transom, bridge plate and kerb. The frame structure is combined of raker, bracing frame, vertical frame, sway brace and vertical component. The bridge end section is combined of end post, lower bearing and frame plate. The gateway structure is combined of ramp, ramp bearing and end plate.

Type 100 Steel Suspension Emergency Bailey Bridge

Type 100 Steel Suspension Emergency Bailey Bridge
