Product Description:

Product Description:

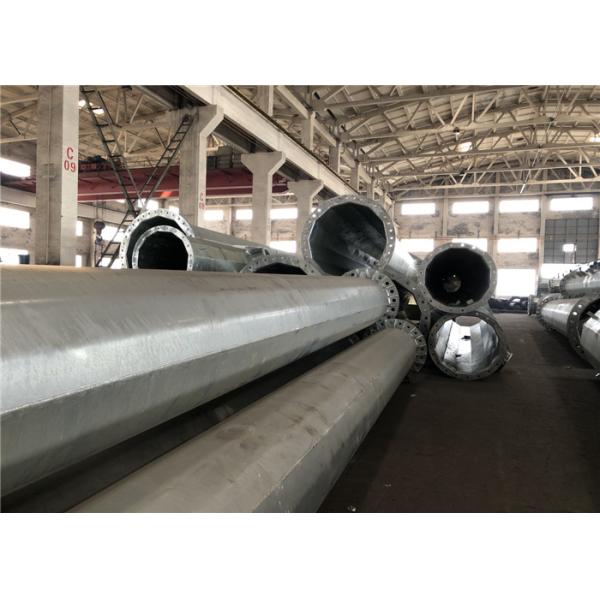

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.

Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.

Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.

In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.

Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.

Quality Control Manegement:

JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.
