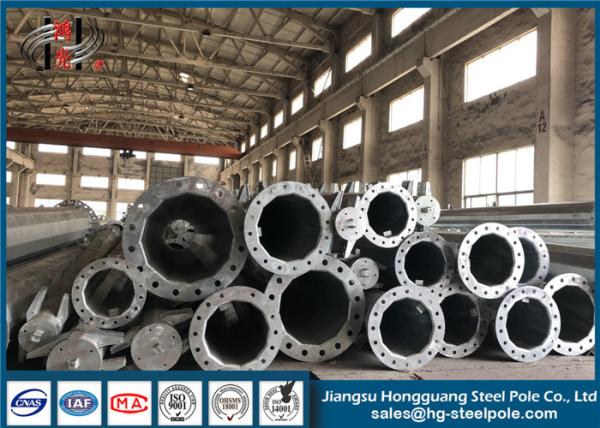

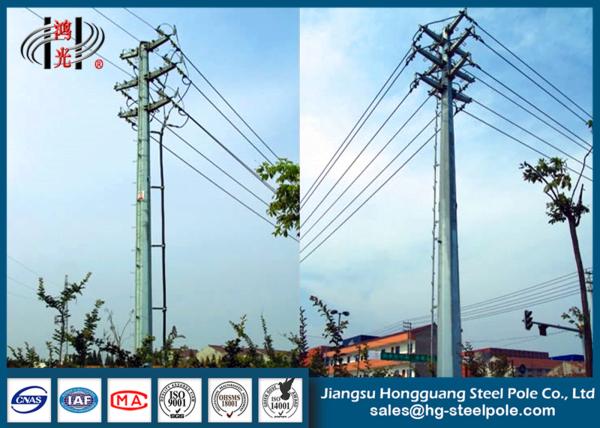

Q460 ISO 460MPa Steel Electrical Power Line Pole With Cross Arm Galvanization
Q460 ISO 460MPa Steel Electrical Power Line Pole With Cross Arm Galvanization
Q460 ISO 460MPa Steel Electrical Power Line Pole With Cross Arm Galvanization
Q460 ISO 460MPa Steel Electrical Power Line Pole With Cross Arm Galvanization
Specifications
Brand Name :
JSHG
Model Number :
HG-SP
Certification :
ISO/CNAS/IAF/CA
Place of Origin :
China
MOQ :
One 40 HQ Container
Price :
negotiation
Payment Terms :
L/C, T/T or Western Union
Supply Ability :
3,000 Metric Tons per Month
Delivery Time :
2 weeks per container after PO/drawing/prepayment confirmed
Packaging Details :
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Voltage Grade :
10-220KV
Welding :
submerged arc auto methods
Material :
Q460
Galvanization :
ASTM A 123
Appearance Treatment :
Hot dip galvanized
Application :
Transmission Line
Description

460MPa Steel Electrical Power Pole with Cross Arm Galvanization

Product Specification:

Products

  • 460MPa Steel Electrical Power Pole with Cross Arm Galvanization

Application

  • Overhead Transmission Line Project

Voltage Grade

  • 10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV

Galvanization

  • Hot dip galvanization in accordance with American standard ASTM A123.

Marks

  • Name palte through rivert,engrave ,paint

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Joint

  • Joint with insert mode

Life Period

  • More than 25 years, it is according to installing environment

Export Country

  • Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania , Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of the Congo

Base plate

  • Base plate is square with slotted holes for anchor bolts installation.

Production Process Flow Chat

  • Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery

Product Description:

Transmission Line steel electrical power pole includes suspension electrical power pole, tensile electrical power pole, strain electrical power pole, angle electrical power pole which covers voltage 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ). Generally electrical power poles are connected with outer flange and burried with anchor bolt. In order to protect it from weather and corrosion, electrical power poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

Q460 ISO 460MPa Steel Electrical Power Line Pole With Cross Arm Galvanization

Product Advantages:

In order to meet the increasingly higher demand for steel electrical power pole, our company design and produce many kinds of electrical power pole for the power transmission and distribution system. Besides, our electrical power pole have been tested and approved by the Power Industry Power Equipment and Transmission Material Inspection Test Center.

Steel electrical power pole needs shoter construction cycle and lower overall cost. Compared with steel tower, steel electrical power pole is easier for workers to install and maintain. Due to hot dip galvanization, the pole has weather resistance and anti-corrosion features. Our company is capable to handle volume orders and provide professional design by our experienced R&D engineer. In addition, ODM&OEM are available.

Product Welding:

Steel tubular pole adopt CO2 welding or submerged arc auto methods which complies with AWS D1.1 standard. No fissure, scar, overlap, layer or other defects will be left after hot dip galvanization. In addition, our internal and external welding technique makes the pole more beautiful in shape. If customers need any other requirements of welding, we also can make adjustment ad your request.

Our Services:

1).Reply within 24 Working Hours
2).Factory Direct Sale
3).More than 15 Years Design & Manufacture Experience
4).Capable to Handle Volume Orders
5).High-Quality and Low-Price Products
6).Provide Professional Design by Our Experienced R&D Engineers
7).Rich Exporting Experience
8).ODM, OEM Acceptable
9).Technical Support by E-mail
10).Calling service

Contact Us:

Jiangsu Hongguang Steel Pole Co., Ltd.
Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
Telphone: +86 510 878 441 56
Fax: +86 510 878 435 28
Trade manager ID: cnhgsteelpole
Skype: tangjia870124

Please feel free to contact us!
