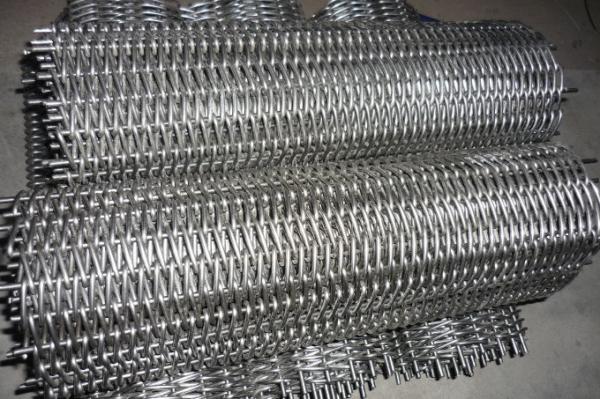

Balance Weave Mesh Conveyor Belt High Temperature Resistance Argon Welding
Balance Weave Mesh Conveyor Belt High Temperature Resistance Argon Welding
Balance Weave Mesh Conveyor Belt High Temperature Resistance Argon Welding
Balance Weave Mesh Conveyor Belt High Temperature Resistance Argon Welding
Specifications
Brand Name :
Guangya
Model Number :
GY-F11
Certification :
ISO9001-2008
Place of Origin :
Shenzhen, China
MOQ :
20 meters
Price :
negociable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 square meters per month
Delivery Time :
5-10 days
Packaging Details :
Thin film and wooden box
Material :
High temperature resistance stainless steel
Wire Diameter :
1.5mm~5.0mm
Belt type :
Tempering furnace conveyor belt
Size :
By client side requirement
Edge treatment :
Argon welding
Application :
Heat treatment, drying & curing furnace
Chemical resistance :
Acid & alkali resisting
Custom design :
Custom design available
Description

2017 China Best Quality Stainless Steel 304 Balance Weave Wire Mesh Conveyor Belt

Our Company Shenzhen GuangYa Machinery Co, Ltd. is a mainly producing stainless steel wire belts ,

provide all kinds belts what you need , welcome your message for consultation detail .

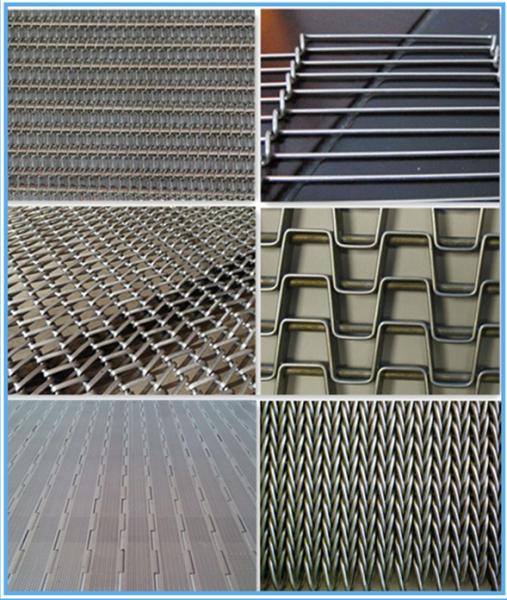

Type

1) Balanced weave,double balanced weave.

2) Conventional Weave,Compound Balanced Weave /cormel weave.

3) Flat wire belt,flat-flex belt,rod reinforced belt.

4) Ladder link belt,flex-link belt,chain driven belt.with upturned edges belt mesh.

The Belts Feature And Usage

1. tight wire mesh for flexibility and conveying small parts
2. special smooth surface belts for easy accurate transfer
3. wire belts with large openings for easy flow of air or water and for simplified cleaning of your product
4. convey metal parts through copper and aluminum brazing furnaces
5. bronze and iron parts through sintering furnaces
6. textiles and chemicals through oven dryers as well as applications that involve washing, annealing, quenching and polishing
7. the food processing industry our belts are used to clean dry, bake, cook, freeze, salt

Furnace belt general properties table

MESH BELT
Spcification Customerization according customer requirement
Advantage To prevent the workpiece rolled out mesh belt edge
Can put a small wokrpiece on the mesh belt directly , don't need the workpiece tray
Workpieces Light and weight wokrpieces , and others
Apply the furnace type Muffle mesh belt heat treatment line , continuous annealing
furnace , continuous tempering furnace,Continuous aging furnace, conveyor belt heat treatment furnace, and so on .
Working
Temperature		 Working temperature Material
Below 650°C 304
Below 800°C 321
Below 800°C 316L(Corrosion prevention)
Below 1100°C 310S
Below 1200°C 314

General specifications

  1. open mesh construction for quick drainage and free air circulation
  2. a smooth, flat surface
  3. sanitary-easily clean
  4. replacement available of damaged sections
  5. endless splicing
  6. high strength to weight ratio
  7. positive sprocket drive

Different grade stainless steel properties

Grade
Composition(%)
Temperature
resisting
Specifications
C
Si
Mn
Ni
Cr
Mo
1Cr13
≤0.15
≤0.6
≤0.6
-
12-14
-
650℃
Normal conveyor use
1Cr17
≤0.15
≤0.6
≤0.6
-
12-18
-
650℃
Normal conveyor use
304M
≤0.06
≤1.0
≤0.6
8.9-10
18-20
-
920℃
Normal conveyor use
304L
≤0.03
≤1.0
≤0.6
9-13
18-20
-
920℃
intercrystalline corrosion
316
≤0.08
≤1.0
≤0.6
10-14
16-18
2-3
920℃
 Anti corrosion
316L
≤0.03
≤1.0
≤0.6
12-15
16-18
2-3
920℃
 intercrystalline corrosion
309S
≤0.08
≤1.0
≤0.6
12-15
22-14
-
1000℃
 Continuous high temperature
310s
≤0.08
≤1.5
≤0.6
19-22
24-26
-
1100℃
High temperature & heavy hit resisting
314
≤0.25
1.5-3.0
≤0.6
19-22
23-26
-
1200℃
Antioxidant plus all 310S
Cr20Ni80
≤0.15
0.4-1.3
≤0.6
72-78
20-23
-
1200℃
 Antioxidant & high temperature resisting

Wire conveyor belt

Balance Weave Mesh Conveyor Belt High Temperature Resistance Argon Welding

Wire Conveyor Belt FAQ

Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total quantity. Each belt is custom made based customer side exact parameters.

Q: What's the available stainless steel model?
A: We can produce by all available stainless steel models upon customer requirements such as SUS201/202/304/310S/314/316L/430 etc. We will also help choose the right model according to customer side production requirement.

Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.

Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.

Q: How do I make installation?

A: We will provide detailed instructions about installation process and offer necessary suggestions based our exact working experience.
