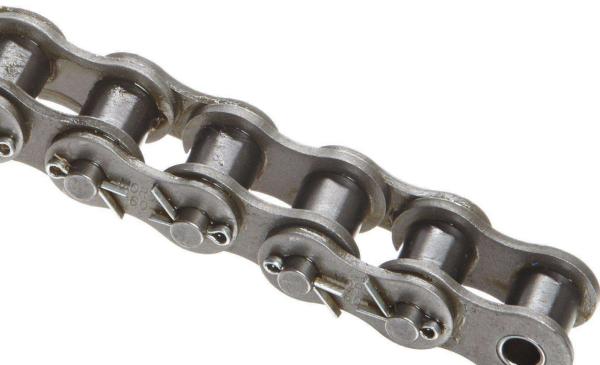

Short Double Pitch Roller Chain , Precision Ss Conveyor Chain B Series
Short Double Pitch Roller Chain , Precision Ss Conveyor Chain B Series
Short Double Pitch Roller Chain , Precision Ss Conveyor Chain B Series
Short Double Pitch Roller Chain , Precision Ss Conveyor Chain B Series
Specifications
Brand Name :
Guangya
Model Number :
GY-RC06
Certification :
ISO9001-2008
Place of Origin :
Shenzhen, China
MOQ :
10 pcs
Price :
negociable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
5-10 days
Packaging Details :
Thin film and wooden box
Material :
Stainless steel 201/304/310/316
Model :
04C-48A
Application :
Conveyor system
Manufacturing method :
Forged and then machined, hobbed
Heat treatment :
High frequency quenching
Packing :
Plywood Case/Pallet
OEM :
Yes
Standard :
ANSI ,DIN ,JIS ,BS
Description

Short Pitch Transmission Precision Roller Chain, B Series

B series short pitch precission roller chain is precise mould production over each part, it can be produced from any grade stainless steel by short lead time. Custom production supported!

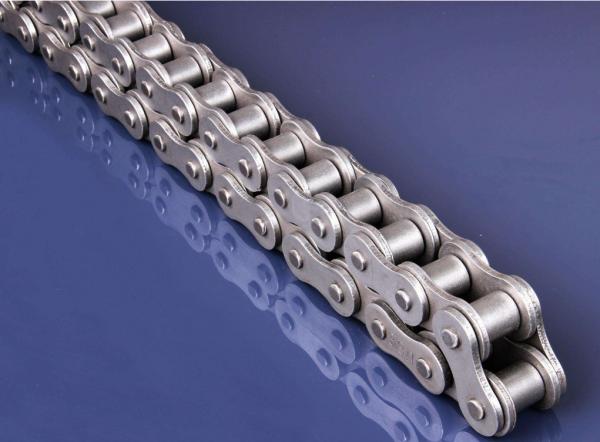

Short Double Pitch Roller Chain , Precision Ss Conveyor Chain B Series

Roller conveyor chain advantages


1.Material: steel or stainless steel, C45, A3, Q235,Q345, S235JR,C22, C40,42CRMO4,PA6, POM
2.Drawing as standard or approved by client before production
3.Standard: ANSI ,DIN ,JIS ,BS, ( SATI, CHIARAVALLI, BEA,MARTIN, BROWNING,KANA)
4. Heat treatment: Harden teeth, tempering, queching
5. Process: Forging( casting)---lathe- teeth shaping---finishing---oil washing---Packing, made by CNC machine
6. Inspection: All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product enter into the market.
7. Durable, bad condition Resistance

B series short pitch precision roller chain properties

ISO BS chain

No.

Pitch

Roller

diameter

Width

between

Inner plates

Bearing pin

body

diameter

Width

over

bearing

pin

Length over connecting pin

inner

piate

depth

Transverse pitch

Ultimate

tensile

strength

Average

tensile strength

Weight

per

meter
P

dl

max

bl

min

d2

max

L

max

Lc

max

h2

max

 Pt

Q

min

-

Q

 q
mm mm mm mm mm mm mm mm KN KN kg/m
*06B-1 9.525 6.35 5.72 3.28 13.15 15.15 8.26 - 8.9 10.3 0.41
08B-1 12.7 8.51 7.75 4.45 16.95 19.05 11.81 - 17.8 19.6 0.69
10B-1 15.875 10.16 9.65 5.08 19.5 22.0 14.73 - 22.2 27.5 0.93
12B-1 19.05 12.07 11.68 5.72 22.5 25.1 16.13 - 28.9 33.3 1.15
16B-1 25.4 15.88 17.02 8.28 36.1 41.5 21.08 - 60.0 71.0 2.71
20B-1 31.75 19.05 19.58 10.19 42.4 47.6 26.42 - 95.0 101.8 3.70
24B-1 38.1 25.4 25.40 14.63 53.4 60.0 33.40 - 160.0 176.0 7.10
28B-1 44.45 27.94 30.99 15.9 65.1 72.5 37.08 - 200.0 215.6 8.50
32B-1 50.8 29.21 30.99 17.81 66.91 73.6 42.29 - 250.0 280.3 10.25
40B-1 63.5 39.37 38.10 22.89 82.6 91.3 52.96 - 355.0 392.0 16.35
48B-1 76.2 48.26 45.72 29.24 99.1 109.6 63.88 - 560.0 599.2 25.0
*06B-2 9.525 6.35 5.72 3.28 23.4 27.1 8.26 10.24 16.9 18.1 0.74
08B-2 12.7 8.51 7.75 4.45 31.0 33.0 11.81 13.92 31.1 37.4 1.34
10B-2 15.875 10.16 9.65 5.08 36.1 38.6 14.73 16.59 44.5 54.2 1.84
12B-2 19.05 12.07 11.68 5.72 42.0 44.4 16.13 19.46 57.8 66.6 2.31
16B-2 25.4 15.88 17.02 8.28 68.0 73.4 21.08 31.88 106.0 126.5 5.42
20B-2 31.75 19.05 19.58 10.19 79.7 83.6 26.42 36.45 170.0 210.0 7.20
24B-2 38.1 25.4 25.40 14.63 101.4 108.4 33.40 48.36 280.0 305.0 13.4
28B-2 44.45 27.94 30.99 15.9 124.7 132.1 37.08 59.56 360.0 390.0 16.60
32B-2 50.8 29.21 30.99 17.81 125.46 132.4 42.29 58.55 450.0 487.5 21.0
40B-2 63.5 39.37 38.10 22.89 154.5 163.8 52.96 72.29 630.0 680.2 32.0
48B-2 76.2 48.26 45.72 29.24 192.4 200.9 63.88 91.21 1000.0 1070.0 20.0
*06B-3 9.525 6.35 5.72 3.28 33.5 37.3 8.26 10.24 24.9 29.8 1.16
08B-3 12.7 8.51 7.75 4.45 44.9 47.2 11.81 13.92 44.5 50.2 2.03
10B-3 15.875 10.16 9.65 5.08 52.7 55.6 14.73 16.59 66.7 79.8 2.77
12B-3 19.05 12.07 11.68 5.72 61.5 65.2 16.13 19.46 86.7 101.8 3.46
16B-3 25.4 15.88 17.02 8.28 99.8 105.3 21.08 31.88 160.0 190.0 8.13
20B-3 31.75 19.05 19.58 10.19 114.55 121.2 26.42 36.45 250.0 276.2 10.82
24B-3 38.1 25.4 25.40 14.63 150.2 156.8 33.40 48.36 425.0 480.0 20.10
28B-3 44.45 27.94 30.99 15.9 184.3 191.7 37.08 59.56 530.0 580.0 24.92
32B-3 50.8 29.21 30.99 17.81 184.01 191.0 42.29 58.55 670.0 720.2 31.56
40B-3 63.5 39.37 38.10 22.89 226.8 236.1 52.96 72.29 950.0 1020.0 48.1
48B-3 76.2 48.26 45.72 29.24 281.6 292.1 63.88 91.21 1500.0 1590.0 75.0

Product FAQ

Q: What's the lead time?
A: It takes 5-15 days for production in factory depends the total quantity. Each sprocket can be custom made based customer side exact parameters.

Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003 and only dedicated to stainless steel wire belt production.

Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.

Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.
