Self Tracking Stainless Steel Wire Belt Conveyor High Flexibility For Industries
Self Tracking Stainless Steel Wire Belt Conveyor High Flexibility For Industries
Self Tracking Stainless Steel Wire Belt Conveyor High Flexibility For Industries
Self Tracking Stainless Steel Wire Belt Conveyor High Flexibility For Industries
Specifications
Brand Name :
Guangya
Model Number :
GY-W10
Certification :
ISO9001-2008
Place of Origin :
Shenzhen, China
MOQ :
10 meters
Price :
negociable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 square meters per month
Delivery Time :
5-10 days
Packaging Details :
Thin film and wooden box
Material :
First class stainless steel
Wire Diameter :
1.0mm~6.0mm
Belt type :
wire mesh conveyor belt
Size :
by requirement
Edge treatment :
Argon welding
Application :
Heat treatment, cooling, drying & cleaning conveyor
Chemical resistance :
Acid & alkali resisting
Custom design :
custom design available
Description

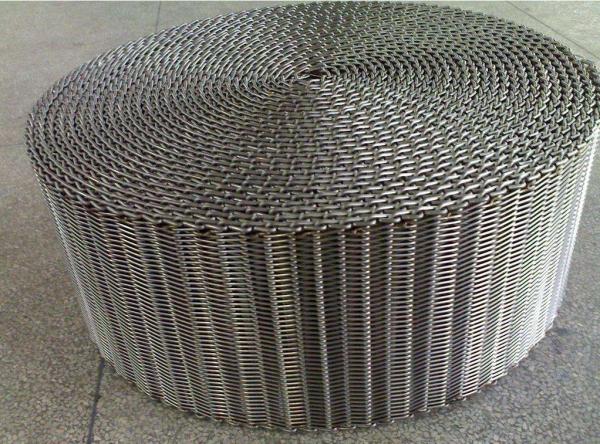

Self-Tracking Belt Stainless Steel Mesh Conveyor Belt In Wide Variety Of Industries

Self-Tracking Belt is a very versatile type of belting.

This type of belting is used in a wide variety of industries, including food and pharmaceuticals, chemicals, plastics and polymers.

Process applications that can be accomplished include washing, draining, drying, curing, cooking and freezing.

Feature :

1.Self-Tracking; the belt does not need any tracking or steering device as this is built into the design of the belt itself
2.No stretching; the longitudinal wires are made from pretensioned cables, therefore the stretching of the belt is reduced even under high tensioning
3.No wear; the more sensitive cable wires do not touch the rollers, they are safely located in the V-shaped sections of the solid cross wires.
4.High Flexibility; the flexibility of the cable in the running direction considerably improves the resistance to metal fatigue, even at high speed on small diameter pulleys

Self -Tracking Metal Conveyor Belts Application

Our metal wire conveyor belt is widely used for different conveyor systems like cooling, frozen, cleaning and heat treatment etc. We have plenty experience of different conveyor belt design to work with different conditions. Either from electronics or food, printing or coating, our belt is powering a huge industry for smooth production.

Self -Tracking Wire Mesh Belt Properties
Material Any class stainless steel upon requirement
Standrad DIN, JIS
Type Wire mesh conveyor belt
Mesh size Choose from over 50 available models
Thickness 10-40mm in total
Width 300-2000mm
Length By customer requirement
Application industry mainly used in heating/tempering equipments.

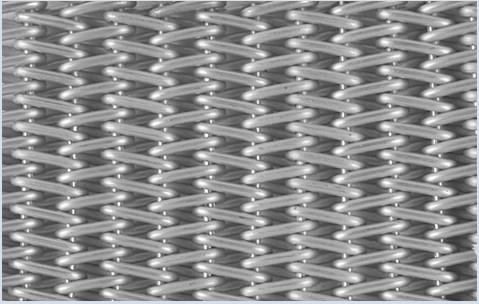

Introduction Wire mesh conveyor belt is spiral coils connection
Features

Acid-resisting, alkali-resisting, high temperature resisting, strong tension and good abrasion performance
It also has advantage of stable, fine and high precision filtering performance.
Long service life


Self -Tracking Stainless steel general properties table

Grade
Composition(%)
Temperature
resisting
Specifications
C
Si
Mn
Ni
Cr
Mo
1Cr13
≤0.15
≤0.6
≤0.6
-
12-14
-
650℃
Normal conveyor use
1Cr17
≤0.15
≤0.6
≤0.6
-
12-18
-
650℃
Normal conveyor use
304M
≤0.06
≤1.0
≤0.6
8.9-10
18-20
-
920℃
Normal conveyor use
304L
≤0.03
≤1.0
≤0.6
9-13
18-20
-
920℃
intercrystalline corrosion
316
≤0.08
≤1.0
≤0.6
10-14
16-18
2-3
920℃
 Anti corrosion
316L
≤0.03
≤1.0
≤0.6
12-15
16-18
2-3
920℃
 intercrystalline corrosion
309S
≤0.08
≤1.0
≤0.6
12-15
22-14
-
1000℃
 Continuous high temperature
310s
≤0.08
≤1.5
≤0.6
19-22
24-26
-
1100℃
High temperature & heavy hit resisting
314
≤0.25
1.5-3.0
≤0.6
19-22
23-26
-
1200℃
Antioxidant plus all 310S
Cr20Ni80
≤0.15
0.4-1.3
≤0.6
72-78
20-23
-
1200℃
 Antioxidant & high temperature resisting

Self Tracking Stainless Steel Wire Belt Conveyor High Flexibility For Industries

Self Tracking Stainless Steel Wire Belt Conveyor High Flexibility For Industries
Why Choose Us

1. Quick Production
We have a solid production team with over 12 years, each operator has been working in this industry for more than 5 years. Plus, we have more than 50 existing moulds to use directly.


2. Direct Manufacturer
We're direct manufacturer since 2003, we're also very close to sea port & airport. We are the earliest manufacturer from south China.


3. Custom design
We have a professional engineering department for quick design upon customer requirements.


4. Competitive price
We are running mass production model and have built up advanced partnership with source material providers. We can save much cost and provide very promotional offer to clients.


5. Best After-sale Service
We have professional after-sales service team, which consist of five people, and each has more than three years experience. If you have any questions after you receive the cargo, you can call us or send email all day.


6. Supply free samples
As we have above advantages, we can supply you free samples for your trial to test if you have great intention to order
