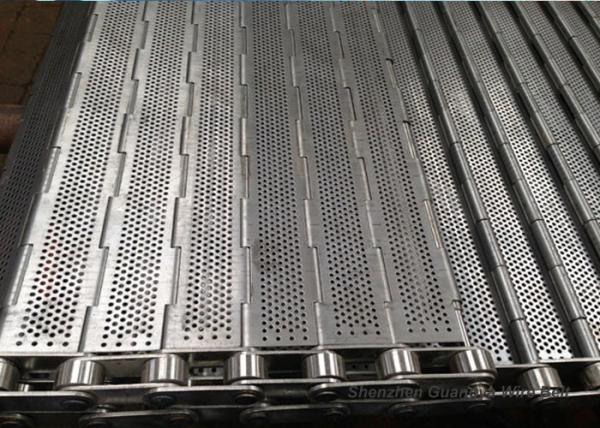

Flat Surface Plate Conveyor Belt High Load With Roller Chain ISO9001
Flat Surface Plate Conveyor Belt High Load With Roller Chain ISO9001
Flat Surface Plate Conveyor Belt High Load With Roller Chain ISO9001
Flat Surface Plate Conveyor Belt High Load With Roller Chain ISO9001
Specifications
Brand Name :
Guangya
Model Number :
GY-LP03
Certification :
ISO9001-2008
Place of Origin :
Shenzhen, China
MOQ :
20 meters
Price :
negociable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 square meters per month
Delivery Time :
5-10 days
Packaging Details :
Thin film and wooden box
Material :
Stainless steel
Link plate thickness :
1.0mm~2.0mm
Belt type :
chain plate conveyor belt
Size :
by client side requirement
Chain type :
roller chain
Application :
any kind conveyor system
Chemical resistance :
Acid & alkali resisting
Custom design :
custom design available
Description

Stainless Steel Chain Plate Conveyor Belt, Flat Surface & High Load Strength!

Chain plate conveyor belt is a very robust belt with tight structure & extremely smooth surface. The light weight and strong structure is pefect for carring small products, smooth running. The simple belt structure makes it easy to maintain for long life cycle.

We have perfect equipment and moulds for different chain plate production upon customer specific requirements. Different design & any grade stainless steel support!

Chain plate conveyor belt properties

Material stainless steel & carbon stee
Standrad DIN, JIS
Belt ype Food conveyor belt
Link plate type with or without holes
Thickness 1.5-2.0mm
Width 300-2000mm
Length 20-100m
Application industry can be used in almost every conveyor solution
Introduction link plate conveyor belt is light weight but high load resisting belt solution
Features

Acid-resisting, alkali-resisting, high temperature resisting, strong tension and good abrasion performance

It also has advantage of stable, fine and high precision filtering performance.

Long service life

Link plate conveyor belt Application

  • Cleaning, conveying machinery conveyor.
  • Ultrasonic cleaning conveyor.
  • Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.

Stainless steel properties

Grade
Composition(%)
Temperature
resisting
Specifications
C
Si
Mn
Ni
Cr
Mo
1Cr13
≤0.15
≤0.6
≤0.6
-
12-14
-
650℃
Normal conveyor use
1Cr17
≤0.15
≤0.6
≤0.6
-
12-18
-
650℃
Normal conveyor use
304M
≤0.06
≤1.0
≤0.6
8.9-10
18-20
-
920℃
Normal conveyor use
304L
≤0.03
≤1.0
≤0.6
9-13
18-20
-
920℃
intercrystalline corrosion
316
≤0.08
≤1.0
≤0.6
10-14
16-18
2-3
920℃
 Anti corrosion
316L
≤0.03
≤1.0
≤0.6
12-15
16-18
2-3
920℃
 intercrystalline corrosion
309S
≤0.08
≤1.0
≤0.6
12-15
22-14
-
1000℃
 Continuous high temperature
310s
≤0.08
≤1.5
≤0.6
19-22
24-26
-
1100℃
High temperature & heavy hit resisting
314
≤0.25
1.5-3.0
≤0.6
19-22
23-26
-
1200℃
Antioxidant plus all 310S
Cr20Ni80
≤0.15
0.4-1.3
≤0.6
72-78
20-23
-
1200℃
 Antioxidant & high temperature resisting

Wire Conveyor Belt FAQ

Q: What's the lead time?
A: It takes 5-10 days for production in factory depends the total quantity. Each belt is custom made based customer side exact parameters.

Q: How long is your company in business?
A: We shenzhen guangya wire belt company started business in 2003 and only dedicated to stainless steel wire belt production.

Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.

Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.
