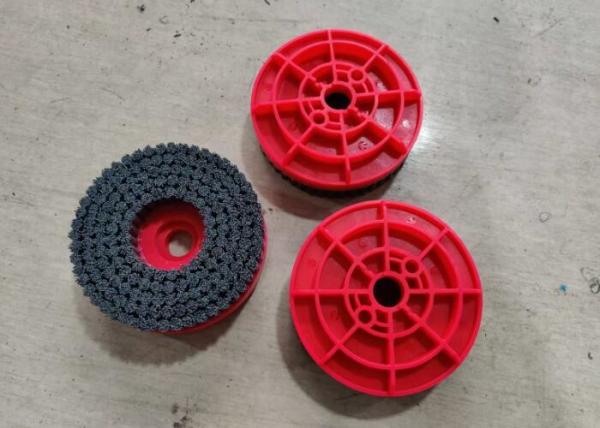

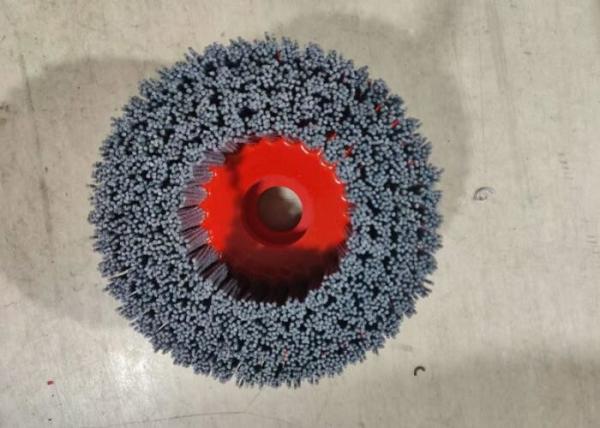

Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Specifications
Brand Name :
L&W
Model Number :
DMS15025
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T,paypal
Supply Ability :
800 piece / day
Delivery Time :
10 working days after received your payment
Packaging Details :
1 piece / CTN, 25 Piece / CTN
Item name :
Nylox Rotary Deburring Brushes
OD :
150MM
ID :
25.4MM
Bristle trim length :
25mm
base thickness :
20mm
base color :
Red
material :
SIC
sandpaper grits :
500
Description

Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal

1. Abrasive Disc Brushes are composed of hard-wearing abrasive nylon filaments bonded to a fibre reinforced thermoplastic base.

2. These abrasive disc brushes materials can be ceramic, diamond, silicon carbide abrasives, aluminum oxide abrasives that produce maximum burr removal rates and provides optimum surface finishing effect.

3. We have 2 styles disc brushes: Dot style and Turbine style. Dot style usually for general purpose deburring and surface finish applications and the Turbine style brush is good in medium and heavy deburring applications.

4. Abrasive grains are embedded in the entire length of the bristles so the sides act like flexible files. These brushes remove workpiece material as well as surface contamination in a single step.

5. The nylon bristles do not scratch and are appropriate for cleaning and wood polishing, stainless steel and aluminium treatment.

6.These disc brushes won't leave behind debris that could cause rust on your workpiece. Also they are good for acids and alkalies application.
Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal
Application Industry
- woodworking
- electronics
- engine block
- cylinder
- pneumatic part
- hydraulic part
- hardware

Dimensions:

Outer Diameter

 150mm

ID diameter

 25.4mm

Base thickness

 20MM

Bristle height

 20mm

grits

 120 grits

Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal

Full Sector:

1. Big sector brushes are heavily filled with filaments, used for heavy duty application where radiusing is not required or less required.

2. Only Face DeBurring.
3. Toughest in the whole range but require lots of coolant or water supply.
4. Cost – effective, longer life and less cycle duration required
5. Can be made more aggressive by opting for flat filaments instead or round filaments
6. Ideal for Heavy DeBurring.

Vertical Sector:

1. The vertical Sector compensates for the need for a planetary head machine.
2. Space between two slots help easy swaying moments of the filament.
3. Covers wide surface area and therefore gives Fast out-put and longer life.

Circular Sector:

Only brush useful for planetary action
Goes with linear movement ( side to side) of the head but not with straight up and down movement of the head

Heavy Sector:

1. Heavy-sector application – edge deburring and surface finishing esp. for medium to heavy job
2. Restricted for small holes and cut-outs
3. Cost-effective with less cycle timing compared to CS
4. Two variants –
One circle – available in small dia.
Two circles: More aggressive with better cutting action and life.
5. Available in larger brush diameter
6. Ideal for Medium to Heavy DeBurring.

Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal

Customizable 150mm Abrasive Nylox Rotary Deburring Brushes for Sheet Metal

Application:

Medium DeBurring for Class II and Class III types of Burr’s.
Edge Radiusing / Rounding and DeBurring Surfaces
Good for Flat surfaces – where all burr’s are in one plane.
Industry: Engineering, Automobile, Aeronautic, Turbine.
