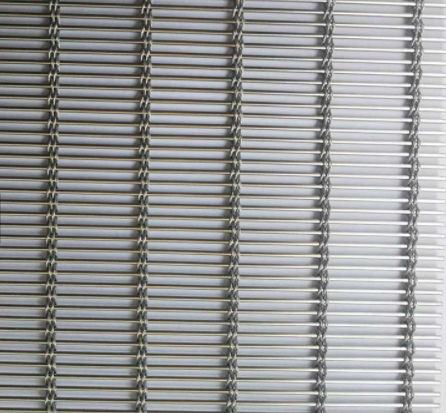

Woven Stainless Steel Architectural 2mm Wire Mesh Curtain
Woven Stainless Steel Architectural 2mm Wire Mesh Curtain
Woven Stainless Steel Architectural 2mm Wire Mesh Curtain
Woven Stainless Steel Architectural 2mm Wire Mesh Curtain
Woven Stainless Steel Architectural 2mm Wire Mesh Curtain
Woven Stainless Steel Architectural 2mm Wire Mesh Curtain
Woven Stainless Steel Architectural 2mm Wire Mesh Curtain
Woven Stainless Steel Architectural 2mm Wire Mesh Curtain
Specifications
Brand Name :
Hangshun
Model Number :
HS-MC006
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
100 Square Meters
Price :
$24-$65
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sqm per week
Delivery Time :
7-10 Days, negotiable
Packaging Details :
Inside bubble wrap and outside wooden box
Product Name :
Stainless Steel Architectural Decorative Cable Wire Mesh Chain Curtain
Material :
Stainless Steel
colour :
Silver, or customized
Technique :
Woven
Wire Diameter :
1mm-2mm
Aperture :
8mm-50mm, Customized
Height :
Customized
Length :
Customized
Weave Style :
Plain Weave
Application :
Decorative Screen
Description

Stainless Steel Architectural Decorative Cable Wire Mesh Chain Curtain



Stainless Steel Architectural Decorative Cable Wire Mesh Chain Curtain Description

This wire mesh combines aesthetics and functionality by delivering striking visual appeal, increased comfort, safety and

energy savings. Architectural wire mesh is one of the most effective forms of solar shading available and can be configured

to withstand strong winds. It can be painted any color or laser cut to any size you want.

Stainless Steel Architectural Decorative Cable Wire Mesh Chain Curtain Specifications
Design
Open area
Cable wire dia.
Cable pitch
Bar dia.
Bar pitch
Thickness
Weight
1
40%
1x1.8 mm
4 mm
1.5 mm
5.5 mm
5.1 mm
7.74kg/m2
2
43%
1x2.5 mm
6 mm
2 mm
8 mm
5.5 mm
7.87kg/m2
3
62%
2x2.75 mm
40 mm
4 mm
14.5 mm
9.5 mm
9.41kg/m2
4
37.20%
3x0.5 mm
3.5 mm
0.5 mm
1.4 mm
1.3 mm
2.4kg/m2
5
71%
3x1.6 mm
80 mm
2.5 mm
10 mm
5.7 mm
4.58kg/m2
6
65%
3x2 mm
80 mm
3 mm
10 mm
7 mm
6.67kg/m2
7
65.90%
3x2.75 mm
110 mm
4 mm
14.5 mm
10 mm
8.5kg/m2
8
67%
3x3 mm
110 mm
4 mm
14.2 mm
10 mm
8.6kg/m2
9
44.30%
4x0.75 mm
26.4 mm
1.5 mm
3 mm
3 mm
5.2kg/m2
10
62%
4x1 mm
36 mm
2 mm
6.6 mm
4 mm
4.55kg/m2
11
40%
4x2 mm
50 mm
3 mm
6 mm
7mm
11.2kg/m2
12
42%
4x2 mm
50 mm
3 mm
6 mm
7 mm
11.8kg/m2

Stainless Steel Architectural Decorative Cable Wire Mesh Chain Curtain Applications

Mainly used for filter and sieving, extensively used in petroleum, chemical industry, environment protection, mine,

airspace, paper-making, electronic, metallurgy, etc.

Stainless Steel Architectural Decorative Cable Wire Mesh Chain Curtain Fetures


1.Fireproof: Its melting point is far higher than that of cloth curtain.

2.Stable: No shrinks or stretches when used.

3.Mildew proof: It will be fine when used in humidity conditions.

4.UV proof: No matter how strong sun shine is,metal ring curtain will not be affected.

5.Light diffusing: Light filtration is controlled by curtain fullness and light conditions.

6. Maintenance free: Stains can be washed off by mild soap water.

7.Permanent: It will last longer than your life except you don't like to hang it any more.

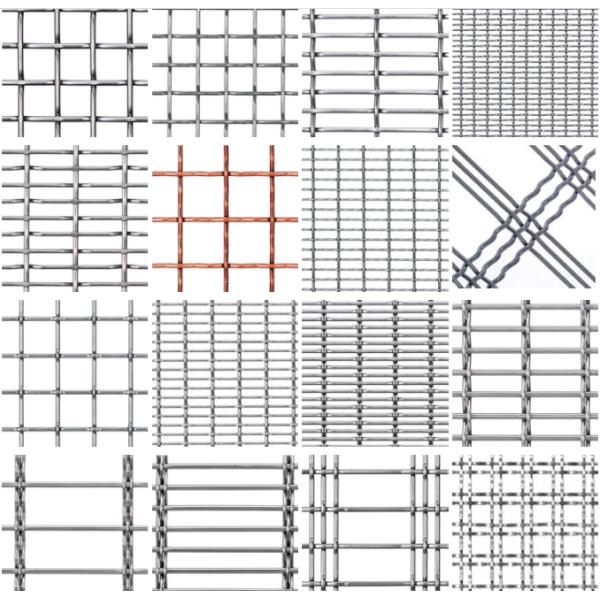

Product Show
Woven Stainless Steel Architectural 2mm Wire Mesh CurtainWoven Stainless Steel Architectural 2mm Wire Mesh Curtain

Woven Stainless Steel Architectural 2mm Wire Mesh Curtain

Woven Stainless Steel Architectural 2mm Wire Mesh CurtainWoven Stainless Steel Architectural 2mm Wire Mesh Curtain

Woven Stainless Steel Architectural 2mm Wire Mesh CurtainWoven Stainless Steel Architectural 2mm Wire Mesh Curtain




Package

Woven Stainless Steel Architectural 2mm Wire Mesh CurtainWoven Stainless Steel Architectural 2mm Wire Mesh Curtain

Woven Stainless Steel Architectural 2mm Wire Mesh CurtainWoven Stainless Steel Architectural 2mm Wire Mesh Curtain
Our Company
Woven Stainless Steel Architectural 2mm Wire Mesh CurtainWoven Stainless Steel Architectural 2mm Wire Mesh Curtain
Woven Stainless Steel Architectural 2mm Wire Mesh CurtainWoven Stainless Steel Architectural 2mm Wire Mesh Curtain

Why Choose Us

1. 100% QC inspection before shipment.

2. Competitive price- we can provide you the best quality with competitive price.

3. Quick response

4. Provide OEM customize

5. We provide sample for free , you only need to pay for the delivery charge.

6. More than 10years export experience.
7.Best after sale service: we assure you that we will be responsible to the end once our service starts.
