MachineU > China Products > Minerals & Metallurgy > Wire Mesh > Steel Wire Mesh
OEM 1mm Ss Wire Mesh Room Dividers
OEM 1mm Ss Wire Mesh Room Dividers
OEM 1mm Ss Wire Mesh Room Dividers
OEM 1mm Ss Wire Mesh Room Dividers
OEM 1mm Ss Wire Mesh Room Dividers
OEM 1mm Ss Wire Mesh Room Dividers
OEM 1mm Ss Wire Mesh Room Dividers
OEM 1mm Ss Wire Mesh Room Dividers
Specifications
Brand Name :
Hangshun
Model Number :
HS-MC007
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
100 Square Meters
Price :
$16-$49
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sqm per week
Delivery Time :
7-10 Days, negotiable
Packaging Details :
Inside bubble wrap and outside wooden box
Product Name :
OEM Customized Metal Wall Panels Room Divider Curtain Woven Wire Rope Mesh
Material :
Stainless Steel, Steel, Aluminum Alloy
colour :
Silver, Golden, blue, etc
Technique :
Woven
Wire Diameter :
1mm-2mm
Aperture :
8mm-50mm, Customized
Height :
Customized
Length :
Customized
Application :
Decorative Screen
Surface Treatment :
Paint Spray
Description

OEM Customized Metal Wall Panels Room Divider Curtain Woven Wire Rope Mesh



OEM Customized Metal Wall Panels Room Divider Curtain Woven Wire Rope Mesh Description


Wire rope mesh - cable and rod combination mesh (HCR mesh) is produced by special weaving machine with single or multiple

cable wire (warp wire ) and straight rod (weft wire), the cable wire create flexibility, while the rod provide stability for the metal

mesh. The Wire rope mesh is widely used in large facades and wall cladding installations.

OEM Customized Metal Wall Panels Room Divider Curtain Woven Wire Rope Mesh Specifications
Design
Open area
Cable wire dia.
Cable pitch
Bar dia.
Bar pitch
Thickness
Weight
1
40%
1x1.8 mm
4 mm
1.5 mm
5.5 mm
5.1 mm
7.74kg/m2
2
43%
1x2.5 mm
6 mm
2 mm
8 mm
5.5 mm
7.87kg/m2
3
62%
2x2.75 mm
40 mm
4 mm
14.5 mm
9.5 mm
9.41kg/m2
4
37.20%
3x0.5 mm
3.5 mm
0.5 mm
1.4 mm
1.3 mm
2.4kg/m2
5
71%
3x1.6 mm
80 mm
2.5 mm
10 mm
5.7 mm
4.58kg/m2
6
65%
3x2 mm
80 mm
3 mm
10 mm
7 mm
6.67kg/m2
7
65.90%
3x2.75 mm
110 mm
4 mm
14.5 mm
10 mm
8.5kg/m2
8
67%
3x3 mm
110 mm
4 mm
14.2 mm
10 mm
8.6kg/m2
9
44.30%
4x0.75 mm
26.4 mm
1.5 mm
3 mm
3 mm
5.2kg/m2
10
62%
4x1 mm
36 mm
2 mm
6.6 mm
4 mm
4.55kg/m2
11
40%
4x2 mm
50 mm
3 mm
6 mm
7mm
11.2kg/m2
12
42%
4x2 mm
50 mm
3 mm
6 mm
7 mm
11.8kg/m2

OEM Customized Metal Wall Panels Room Divider Curtain Wire Rope Mesh Applications

In addition to be used in interior building decoration, cable metal mesh is also suitable for building exterior facade decoration.

cable mesh exterior facade can offer certain protection.in addition to the good decorative effects.
For example, cable wire mesh facades are used on office buildings, exhibition halls,shopping malls for the internal and external
decorations to create a unique texture and accentuate lighting effects.

OEM Customized Metal Wall Panels Room Divider Curtain Woven Wire Rope Mesh Fetures


1.Fireproof: Its melting point is far higher than that of cloth curtain.

2.Stable and environmental protection.

3.Anti corrosion and mildew proof: It will be fine when used in humidity conditions.

4.UV resistance and fire proof.

5.Light diffusing: Light filtration is controlled by curtain fullness and light conditions.

6. Maintenance free: Stains can be washed off by mild soap water.

7.Durable: It will last longer than your life except you don't like to hang it any more.


Product Show
OEM 1mm Ss Wire Mesh Room DividersOEM 1mm Ss Wire Mesh Room Dividers

OEM 1mm Ss Wire Mesh Room Dividers

OEM 1mm Ss Wire Mesh Room DividersOEM 1mm Ss Wire Mesh Room Dividers

OEM 1mm Ss Wire Mesh Room DividersOEM 1mm Ss Wire Mesh Room Dividers

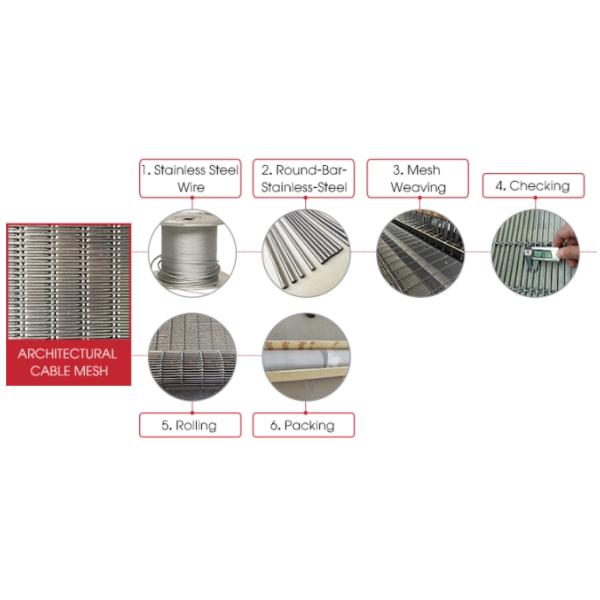

Production Process

OEM 1mm Ss Wire Mesh Room Dividers


Package

OEM 1mm Ss Wire Mesh Room DividersOEM 1mm Ss Wire Mesh Room Dividers

OEM 1mm Ss Wire Mesh Room DividersOEM 1mm Ss Wire Mesh Room Dividers

Our Company
OEM 1mm Ss Wire Mesh Room DividersOEM 1mm Ss Wire Mesh Room Dividers
OEM 1mm Ss Wire Mesh Room DividersOEM 1mm Ss Wire Mesh Room Dividers

Why Choose Us

1. 100% QC inspection before shipment.

2. Competitive price- we can provide you the best quality with competitive price.

3. Quick response

4. Provide OEM customize

5. We provide sample for free , you only need to pay for the delivery charge.

6. More than 10years export experience.
7.Best after sale service: we assure you that we will be responsible to the end once our service starts.
