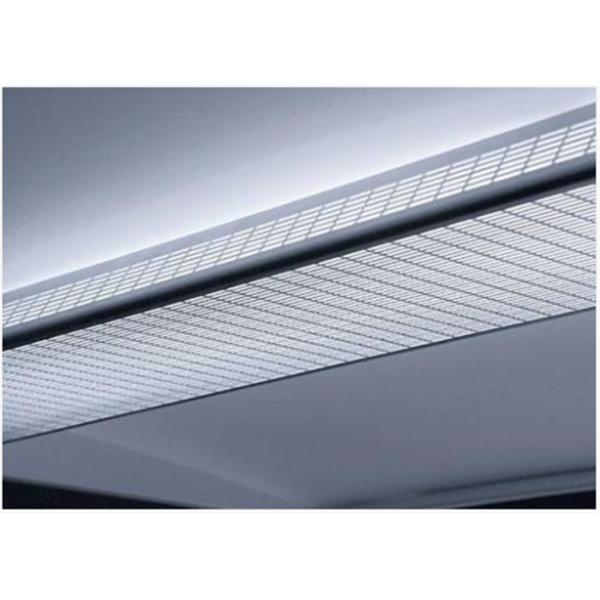

Balconies Slot Hole Perforated Aluminum Panels Liquids And Solids Filtration
Balconies Slot Hole Perforated Aluminum Panels Liquids And Solids Filtration
Balconies Slot Hole Perforated Aluminum Panels Liquids And Solids Filtration
Balconies Slot Hole Perforated Aluminum Panels Liquids And Solids Filtration
Specifications
Brand Name :
H&F
Model Number :
HF-PS0012
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
200 Square Meters
Price :
USD5-15 per square meter
Payment Terms :
T/T, MoneyGram
Supply Ability :
20000 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
Wrapped with air bubble film, then on pallet or in wooden box
Product Name :
Slot Hole Perforated Sheet
Material :
Stainless Steel, carbon steel, Aluminum
Sheet Thickness :
0.5-30mm
Hole distance :
10-50mm
Hole size :
20-100mm
Feature :
multifunctional safety and ventilation
Application :
Balconies and balustrades
Technic :
Punched
Description

High Open Area Square Hole Perforated Metal Sheet For Ventilation

Product Description

Slot hole perforated sheet is a versatile sheet or coil punched for elongated holes with round or square ends.

Compared to similar perforated sheet with other hole pattern, this one proves to be the best solution to filtrate

and sieve liquids and solids, such as water, wine, grain and seeds, etc.

Optional material:


The materials most frequently used of the slot hole perforated sheet include mild steel, carbon steel, stainless steel,

aluminum, brass and any other material suitable for perforation.

Aesthetic hole patterns:


According to the desired application, there are many arrangements of slot holes including straight or staggered type.

Hole size:

The slot hole should be punched with a width that at least the same size as the sheet thickness. When the slot width
is the twice as much as the sheet thickness, the sheet performs best.

Product Specifications

Hole diameter Staggered Centers Sheet Thickness Open Area
0.045” 1.14mm 0.066 0.033-0.039” 0.84-0.99mm 37%
1/16” 1.59mm 3/32” 0.027-0.033” 0.68-0.84mm 41%
5/64” 1.98mm 1/8” 0.027-0.053” 0.68-1.35mm 35%
0.081” 2.06mm 1/8” 0.053-0.066” 1.35-1.68mm 38%
3/32” 2.38mm 5/32” 0.053-0.066” 1.35-1.68mm 33%
1/8” 3.17mm 3/16” 0.027-0.127” 0.68-3.23mm 40%
5/32” 3.97mm 3/16” 0.027-0.066” 0.68-1.68mm 63%
3/16” 4.76mm 1/4” 0.027-0.127” 0.68-3.23mm 50%
1/4” 6.35mm 3/8” 0.033-0.111”,0.25” 0.84-2.82mm.6.35mm 40%
3/8” 9.52mm 1/2” 0.053”-0.082”,3/16” 1.35-2.08mm,4.76mm 51%
3/8” 9.52mm 9/16” 0.059’,0.119” 1.50mm,3.02mm 40%
1/2” 12.70mm 11/16” 0.033-0.127” 0.84-3.23mm,4.76mm 48%
1/4”Hex 6.35mmHex 0.285 0.027-0.033’ 0.68-0.84mm 76%
3/8”Sq. 9.52mmSq. 0.053-0.066” 1.35-1.68mm 51%

Product Fetures

1). Various kind of hole patterns.

2). Accurate holes, bending resistance, corrosion resistance.

3). Easy to process and install, good sound absorption

4). Durable and long service life.

5). Attractive appearance and wide range of thickness available.

Product Applications

  • Act as sieves for grain & seeds cleaning and drying machine.
  • Mill of flour and rice.
  • Rope belt conveyors.
  • Wall & ceiling panels.
  • Cladding and sunshade.
  • Fences and protective panels.
  • Decorative applications, etc.

Product show

Balconies Slot Hole Perforated Aluminum Panels Liquids And Solids Filtration

Balconies Slot Hole Perforated Aluminum Panels Liquids And Solids Filtration

Packaging and delivery

Balconies Slot Hole Perforated Aluminum Panels Liquids And Solids Filtration
