High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316
Specifications
Brand Name :
Hangshun
Model Number :
HS-WRM007
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
100 Square Meters
Price :
$10-$50 per sqm
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sqm per month
Delivery Time :
Negotiable
Packaging Details :
Wooden box
Product Name :
Knotted Stainless Steel 316 Cable Zoo Mesh
Material :
SS316
Type :
Knotted
Wire Diameter :
1.2-3mm
Aperture :
5x5cm
Width :
Negotiable
Length :
As required
Application :
Animal enclosure fence
Feature :
High strength
Description

High Strength Knotted Stainless Steel 316 Cable Zoo Mesh



Product Description

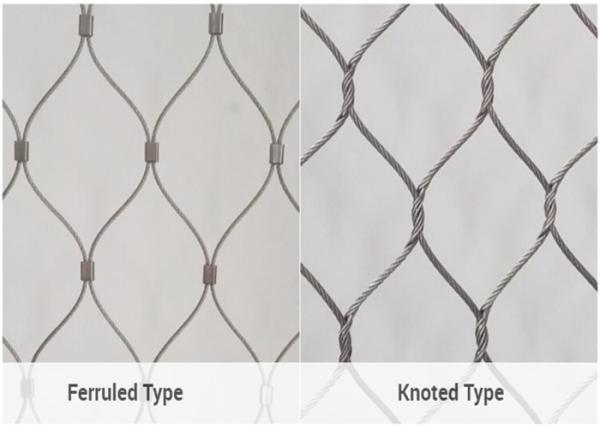

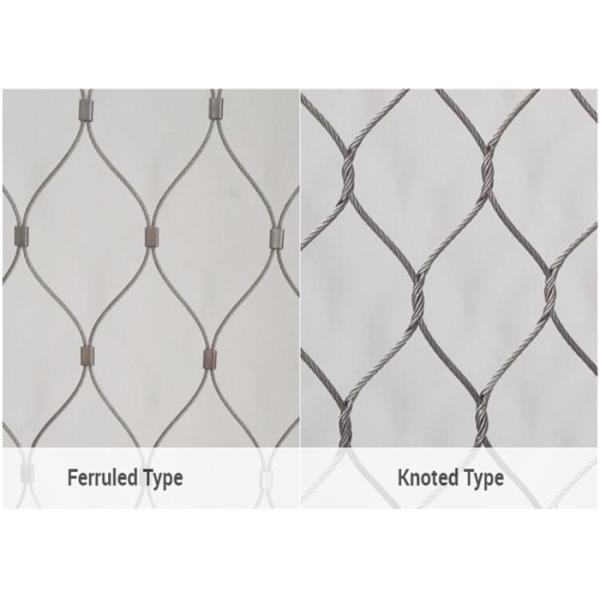

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope.

Warp and weft wire ropes generally have the same diameter.


2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style,

the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Product Specifications

Cable diameter

Mesh opening size

Nominal break
inch mm inch mm lbs.
1/8 3.2 4x4 102x102 1600
1/8 3.2 3x3 76x76 1600
1/8 3.2 2x2 51x51 1600
3/32 2.4 4x4 102x102 920
3/32 2.4 3x3 76x76 920
3/32 2.4 2x2 51x51 920
5/64 2.0 3x3 76x76 676
5/64 2.0 2x2 51x51 676
5/64 2.0 1-1/2x1-1/2 38x38 676
1/16 1.6 3x3 76x76 480
1/16 1.6 2x2 51x51 480
1/16 1.6 1-1/2x1-1/2 38x38 480
1/16 1.6 1x1 25.4x25.4 480
3/64 1.2 1-1/2x1-1/2 38x38 270
3/64 1.2 1x1 25.4x25.4 270
3/64 1.2 4/5x4/5 20x20

270

Product Applications

Stainless steel cable zoo mesh is mainly used in animal cages, bird nets, animal fences and garden decorations

in zoos, marine parks and other similar environments, parks, community protection, doors and windows, etc.,

and can also be applied to building reinforcement, lifting goods, car sealing and capping, high-grade decoration,

sports, acrobatics, home decoration, architectural decoration, fence fence, also used in mine support, slope

protection, security burglar, etc.

Product Fetures

1. corrosion-resistant, non-rusting, strong in tensile strength.

2. resistant to wind, frost, rain and snow, maintenance free.

3. good flexibility, flame retardant, anti-tear and pull, and long service life;

4. Environmental protection, without any chemical treatment, can be reused.

Product Show
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316



Package
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316

High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316


Our Company
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316
High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316High Strength Knotted 7 × 19 Stainless Steel Wire Rope Mesh 316

Why Choose Us

1. 100% QC inspection before shipment.

2. Competitive price- we can provide you the best quality with competitive price.

3. Quick response

4. Provide OEM customize.

5. We provide sample for free , you only need to pay for the delivery charge.

6. More than 10years export experience.


7.Best after sale service: we assure you that we will be responsible to the end once our service starts.
