2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable
2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable
2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable
2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable
2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable
2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable
Specifications
Brand Name :
Honesty&Faith
Model Number :
7 × 19 type
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
200sqm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500sqm/day
Delivery Time :
7-10days
Packaging Details :
In Carton,Wooden Box
Item Name :
2.5mm 7 × 7 Structure Anti-Climb Ferrule Cable Mesh
Material :
AISI 302,AISI 304,AISI 316,AISI 316L
Structure :
7x7 or custom
Diameter :
2.5mm or 3mm and so on
Type :
Ferrule type
Hole shape :
Diamond
Width range :
1m-8m
Length range :
5m-50m
Surface :
Soft and smooth
Advantage :
High transparency
Use life :
20Years or longer
Sample :
Free supply
Description

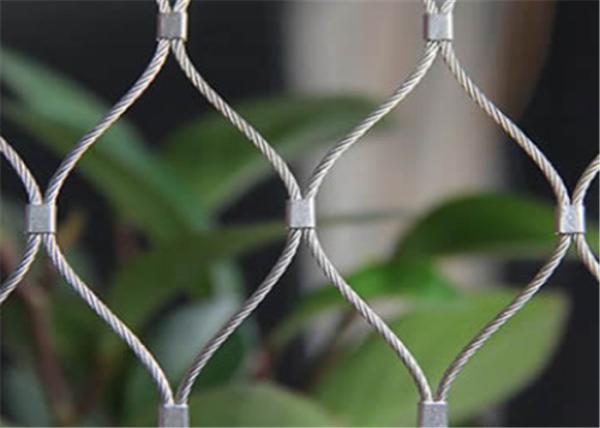

2.5mm 7 × 7 Structure Anti-Climb Ferrule Cable Mesh

Ferrule Cable Mesh description:

Ferrule cable mesh has similar physical properties to knotted cable mesh,but different combination style

-seamless ferrules that combine cables together to form a resilient metal fabric with rhombus holes.

Ferrule Cable Mesh specification​ list:

Product Name
Ferrule Cable Mesh
Material
302, 304, 304L,316, 316L Stainless steel wire
Color Silver,black also can as your need
Width
1m-6m or as your required
Length 10m-100m or as your required
Hole shape
Diamond hole
Wire diameter
1.5mm 2mm 2.5mm 3mm and so on
Opening size
2" x 2", 3" x 3" and 4" x 4".or customized
(30mm to 200mm)
Cable structure
7x7 7x19 and so on
MOQ 100SQM
Export market UK,AU,France,poland,Dubai,Singapore,South africa etc

Strength of Ferrule Cable Mesh
Construction 7 × 7 7 × 19
Diameter 1 mm 1.2 mm 1.5 mm 2 mm 2.5 mm 3 mm 4 mm 5 mm
Tensile strength (N/mm2) 1770 1770 1770 1570 1570 1570 1570 1570
Breaking load (lbs.) AISI 304 180 270 360 630 1011 1371 2383 3731
AISI 316 135 202 315 562 877 1169 2113 3282

Specifications of ferrule cable mesh
Mesh size (W × H) mm Wire diameter
1 mm 1.5 mm 2 mm 3 mm 4 mm
25 × 43 FCM-A1 FCM-B1
30 × 52 FCM-A2 FCM-B2
35 × 61 FCM-A3 FCM-B3 FCM-C3
40 × 69 FCM-A4 FCM-B4 FCM-C4
50 × 87 FCM-A5 FCM-B5 FCM-C5 FCM-D5 FCM-E5
60 × 104 FCM-A6 FCM-B6 FCM-C6 FCM-D6 FCM-E6
70 × 121 FCM-A7 FCM-B7 FCM-C7 FCM-D7 FCM-E7
80 × 139 FCM-A8 FCM-B8 FCM-C8 FCM-D8 FCM-E8
100 × 173 FCM-A9 FCM-B9 FCM-C9 FCM-D9 FCM-E9
120 × 208 FCM-A10 FCM-B10 FCM-C10 FCM-D10 FCM-E10
140 × 242 FCM-A11 FCM-B11 FCM-C11 FCM-D11 FCM-E11
160 × 277 FCM-A12 FCM-B12 FCM-C12 FCM-D12 FCM-E12
180 × 312 FCM-A13 FCM-B13 FCM-C13 FCM-D13 FCM-E13
200 × 346 FCM-A14 FCM-B14 FCM-C14 FCM-D14 FCM-E14

Ferrule Cable Mesh Advantages:

  • Weather resistant,
    Made of quality stainless steel AISI 304, 304L, 316, 316L, our ferrule cable mesh can be advantageous
    when applied to the harshest conditions thanks to its superb resistance to bad weather and ultraviolet.
    Thus, additional anti-corrosive coating is not needed.
  • High transparency
    These meshes are pulled into diamond patterns to let ample light and air pass through. Owing to high
    transparency, they are widely applied to animal enclosure, animal cages, aviary netting, ceiling and
    parking garages. With dull, silver sheen, they blend into the surrounding environment easily.
  • Flexible & impact resistance
    The advantages of impact resistance mainly lies within the flexible structure which make this cable mesh
    ideal to be used as balustrade for bridges, path and stairs. Meanwhile, its flexible structure also allows for
    numerous creativity in planning and execution of projects.
  • High strength
    Quality material and seamless ferrules impart high strength to the cable mesh and make it appropriate to
    projects requiring high load capacity and dependability, especially public applications subjected to vandalism
    and security fences for rockfall protection.
  • Non-flammable
    Our range of ferrule type cable mesh is environmental friendly and non-flammable so it functions well in fire
    escape.
  • Easy installation & maintenance-free
    Ferrule type cable mesh can be fixed to the steel tubular frame easily and quickly using simple hardware.
    Meanwhile, it retains original shape and resiliency indefinitely so that the needs of adjustment periodically is
    eliminated. In addition, it requires no maintenance, let alone the needs of caustic cleaners.

2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable

Tensile strength (Ft) Breaking load (Fb)

Application:

1. Animal zoo

2. Architecture facade

3. Staircase fence

4. Green wall

2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable

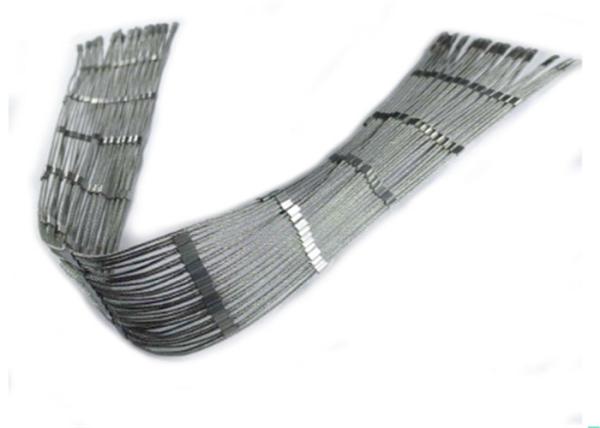

Show our Ferrule Cable Mesh for reference:

2.5mm 7 × 7 Structure Wire Rope Mesh Anti Climb Ferrule Cable
