50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
Specifications
Brand Name :
Honesty&Faith
Model Number :
7 × 19 type
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
200sqm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500sqm/day
Delivery Time :
7-10days
Packaging Details :
In Carton,Wooden Box
Item Name :
50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
Key word :
50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
Material :
SS302,304,316,316L
Type :
Cross Clip Type
Cable Structure :
7 × 7 or 7 × 19
Cable diameter :
1.5 mm to 10 mm
Mesh size :
25 mm to 200 mm
Mesh width :
20 mm to 500 mm
Hole shape :
Diamond
Clamps :
stainless steel clamps and galvanized steel clamps
Surface :
hard polyamide coating in available in any color
Length :
4m or as your required
Width :
10m or as your required
Use life :
Above 20Years
Description

50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type

Stainless Steel Cable Mesh description:

Stainless Steel Cable Mesh is a new kind of versatile mesh made from galvanized or stainless steel

cables. With elegant and beautiful appearance, square cable mesh is generally used as decoration mesh

for halls and walls. Meanwhile, its high strength and durability make it preferred to areas where safety is

the most concern, such as schools, stadiums, buildings and other public areas.

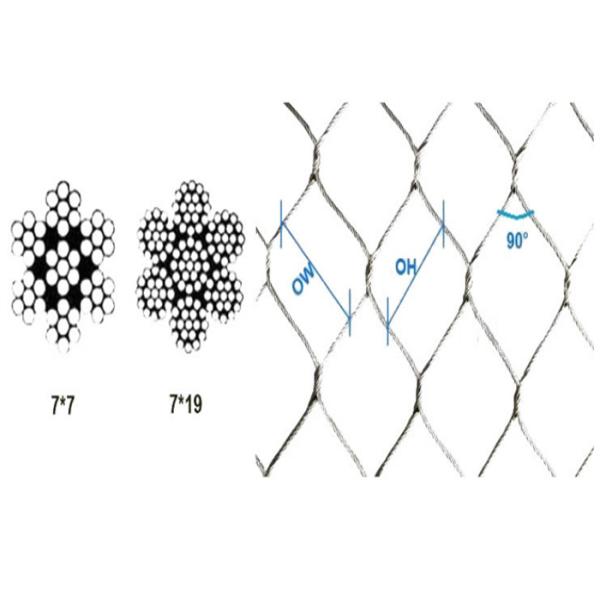

Stainless Steel Cable Mesh specification list:

Material
SS302,304,316,316L
Type Cross Clip Type
Cable Structure
7 × 7 or 7 × 19
Cable diameter 1.5 mm to 10 mm
Mesh size
25 mm to 200 mm

Mesh Width
20 mm to 500 mm
Hole shape
Diamond
Clamps stainless steel clamps and galvanized steel clamps
Surface hard polyamide coating in available in any color
Length 4m or as your required
Width 1m or as your required
Use life Above 20Years

Specification - cross clip type
Galvanized square cable mesh Stainless steel cable mesh
Code Rope diameter (mm) construction Min breaking force (kN) Code Rope diameter (mm) construction Min breaking force (kN)
SCM-CG1 1.5 7 × 7 1.2 SCM-CS1 1.5 7 × 7 1.7
SCM-CG2 2.0 7 × 7 2.7 SCM-CS2 2.0 7 × 7 2.5
SCM-CG3 2.5 7 × 7 4.8 SCM-CS3 2.5 7 × 7 3.9
SCM-CG4 3.0 7 × 7 6.1 SCM-CS4 3.0 7 × 7 5.6
SCM-CG5 4.0 7 × 7 10.9 SCM-CS5 4.0 7 × 7 10.7
SCM-CG6 5.0 7 × 19 14.7 SCM-CS6 5.0 7 × 19 13.7
SCM-CG7 6.0 7 × 19 25.1 SCM-CS7 6.0 7 × 19 20.5
SCM-CG8 8.0 7 × 19 44.7

Specification - bolted type
Galvanized square cable mesh Stainless steel cable mesh
Code Rope diameter (mm) construction Min breaking force (kN) Code Rope diameter (mm) construction Min breaking force (kN)
SCM-BG1 6 7 × 7 25 SCM-BS1 6 7 × 7 23
SCM-BG2 8 7 × 7 44 SCM-BS2 8 7 × 7 36
SCM-BG3 10 7 × 7 69 SCM-BS3 10 7 × 7 60

Stainless Steel Cable Mesh features:

  • High quality material
  • Standard mesh size
  • Standard width and length
  • Anti-rust and anti-corrosion
  • Superb durability
  • High tensile
  • Long use life

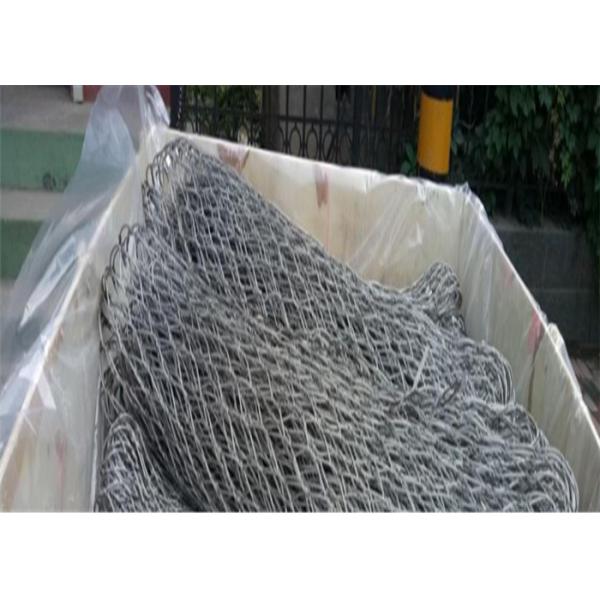

Stainless Steel Cable Mesh Packing way:

1.In carton

2.In pallet

3.In wooden box

4.As your required

Stainless Steel Cable Mesh Application:

  • Versatile as fences, balustrades and landing strip for heliports.
  • Perfect for boundary fence, animal enclosure and green wall.
  • Ideal for carrying heavy objects such as stones.
  • Appropriate to interior and exterior decoration.
  • High strength for facility protection and shark hunting.

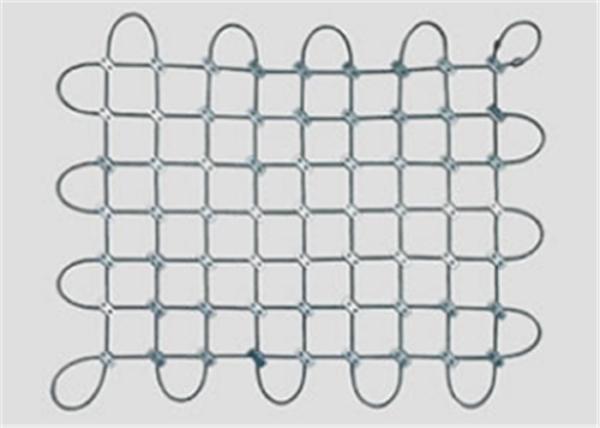

Show our Stainless Steel Cable Mesh for reference:

50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type

50mm Mesh size Stainless Steel Cable Mesh Cross Clip Type
