2.2m Width Hexagonal 304 Stainless Steel Perforated Metal Mesh Sheet
2.2m Width Hexagonal 304 Stainless Steel Perforated Metal Mesh Sheet
2.2m Width Hexagonal 304 Stainless Steel Perforated Metal Mesh Sheet
2.2m Width Hexagonal 304 Stainless Steel Perforated Metal Mesh Sheet
2.2m Width Hexagonal 304 Stainless Steel Perforated Metal Mesh Sheet
2.2m Width Hexagonal 304 Stainless Steel Perforated Metal Mesh Sheet
Specifications
Brand Name :
Honesty&Faith
Model Number :
HS-0015
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100-300units
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
380Sheets per day
Delivery Time :
7-10days
Packaging Details :
In pallet,wooden box or bundle
Item Name :
2.2 width 304 Stainless Steel Perforated Metal Sheet
Hole shape :
round,square,hexagonal,rectangle etc
Material :
304 stainless steel sheet
Color :
Silver,black,white,gold etc
Hole size :
2mm 2.5mm 3mm 3.5mm 4mm 4.5mm and so on
Thickness :
2.2mm or design as your need
Width :
0.5m 0.8m 1m 1.4m 1.6m 2m etc
length :
1m 2.5m 3m 4m 5m etc
Surface treatment :
Flat and smooth
Uses :
construction,protection
Sample :
Free supply and design for you
MOQ :
150SQM
Export Port :
XinGang,TianJin
Description

2.2 width 304 Stainless Steel Perforated Metal Sheet

Stainless steel perforated metal sheet​ description:

Stainless steel perforated metal sheet​ is use 304 stainless steel sheet.Make in different hole shape and

sheet size.The surface can be in silver,balck,white or other colors.It can widely use in construction,filter.

Stainless steel perforated metal sheet specification list:
Material stainless steel sheet,aliminium sheet,nickel sheet etc
Thickness 0.1mm-2mm or as your required
Hole size 2.5mm,3mm,3.5mm,4mm etc
Hole shape Round,square and so on

Surface treatment

 1. Powder Coating
2. Fluorocarbon Spraying (PVDF)
Surface smooth,clean,bright
Export market USA,UK,France,New zealand,Aurtralia,UAE,South africa etc
MOQ 150SQM
Hole Diameter Staggered Centers Sheet Thickness Open Area Perforated Area Percent
0.045" 1.14mm 0.066`` 0.033-0.039" 0.84-0.99mm 37.00%
1/16" 1.59mm 3/32" 0.027-0.033" 0.68-0.84mm 41.00%
1/16" 1.59mm 1/8" 0.027-0.066" 0.68-1.68mm 23.00%
5/64" 1.98mm 1/8" 0.027-0.053" 0.68-1.35mm 35.00%
0.081" 2.06mm 1/8" 0.053-0.066" 1.35-1.68mm 38.00%
3/32" 2.38mm 5/32" 0.053-0.066" 1.35-1.68mm 33.00%
1/8" 3.17mm 3/16" 0.027-0.127" 0.68-3.23mm 40.00%
5/32" 3.97mm 3/16" 0.027-0.066" 0.68-1.68mm 63.00%
3/16" 4.76mm 1/4" 0.027-0.127" 0.68-3.23mm 50.00%
1/4" 6.35mm 3/8" 0.033-0.111", 0.25" 0.84-2.82mm, 6.35mm 40.00%
3/8" 9.52mm 1/2" 0.053-0.082", 3/16" 1.35-2.08mm, 4.76mm 51.00%
3/8" 9.52mm 9/16" 0.059", 0.119" 1.50mm, 3.02mm 40.00%
1/2" 12.70mm 11/16" 0.033-0.127", 3/16" 0.84-3.23mm, 4.76mm 48.00%
1/4" Hex 6.35mm Hex 0.285 0.027-0.033 0.68-0.84mm 76.00%
9.52mm Sq. Cane« 0.053-0.066" 1.35-1.68mm 51.00%

Stainless steel perforated metal sheet have 3types Round hole:
1) . Round hole, 60° , staggered
2) . Round hole, 45° , staggered
3) . Round hole, straight row

4). Other hole patterns and hole arrangements can be customized.

Stainless steel perforated metal sheet production process:
  1. Punching or shearing,
  2. bending or multiple bending,
  3. drawing,
  4. deep drawing,
  5. and punching or precision blanking.
Stainless steel perforated metal sheet Characteristic:
  1. High quality material sheet
  2. Uniform hole size
  3. Standard size
  4. Standard weight
  5. Surface smooth and flat
  6. Anti-skid&anti-corrosion
  7. Easy use
  8. Long time use
  9. Strong package
Packing way:
  • In plastic film
  • In air bubble film
  • load in carton,
  • load in pallet
  • load in wooden box
  • As customer's required
Application:

2.2m Width Hexagonal 304 Stainless Steel Perforated Metal Mesh Sheet

Our service for you:

- 24Hours professional service for you

- Products of fine quality, favorable price and satisfactory post-sale service.

- Convenience to buy container loads of mixed products.

- Speedy delivery and standardized transportation service.

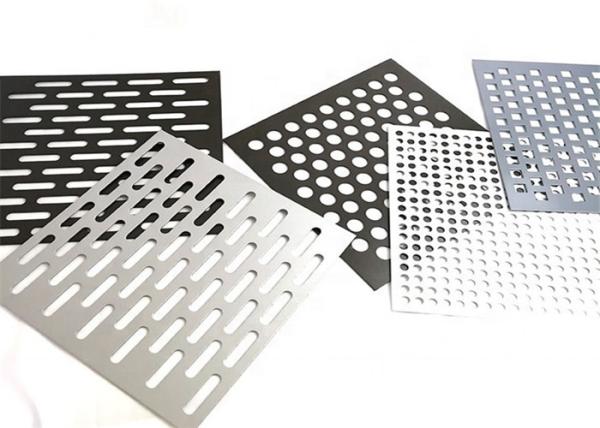

Show our stainless steel perforated metal sheet pictures to you:

2.2m Width Hexagonal 304 Stainless Steel Perforated Metal Mesh Sheet
