60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
Specifications
Brand Name :
HANGSHUN
Model Number :
HF-241205
Certification :
ISO9001,CE
Place of Origin :
CHINA
MOQ :
80M2
Price :
negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
800M2 Per day
Delivery Time :
10-12days
Packaging Details :
Wrapped with protect film,In carton,In pallet,In wooden case
Product name :
Stainless Steel Rope Mesh
Key word :
Stainless Steel Rope woven mesh
Type :
rope woven mesh type
Material :
AISI304,AISI316,AISI316L and so on
Structure :
7*19 rope or 7*7 rope
Rope diameter :
2.0mm,2.5mm,3.0mm,3.5mm,4.0mm etc
Kind :
Ferruled kind and Knitted kind
Hole shape :
Diamond shape
Hole size :
60mm*60mm,70mm*70mm,80MM*80MM,100mm*100mm,120MM*120MM etc
Length :
0.6m-50m or custom
Height :
0.6m-8m or custom
Use time :
Above 30years
Sample :
Free supply
Advantages :
Ant-UV,Anti-Rust,Easy install,Fast delivery,strong packing way
Description

60mm*60mm hole size 3.0mm Wire diameter Stainless Steel Rope Mesh for safety protection

Stainless Steel Rope Mesh Description:

Stainless Steel Rope Mesh (also called SS cable woven mesh).It is choose good quality stainless steel

wire rope.The material have many kins can choose like AISI304,AISI316.AISI316L etc.

The type have 2kinds:ferruled kind and knitted kind.The hole shape in diamond hole.The hole size can

make in small,middle and big.

Stainless Steel Rope Mesh has good feature:Anti-UV,anti-rust,anti-resistant.Widely use for safety protection.

Stainless Steel Rope Mesh Specification list:

Product Name
Stainless Steel Rope Mesh
Type
Rope woven mesh type
Kind
Ferruled kind and knitted kind
Material
AISI304,AISI316,AISI316L etc
Rope diameter 2.0mm,2.5mm,3.0mm,3.5mm,4.0mm etc
Hole size 60mm*60mm,70mm*70mm,80MM*80MM,100mm*100mm,120MM*120MM etc
Hole shape Diamond shape
Advantages Ant-UV,Anti-Rust,Easy install,Fast delivery,strong packing way
Height 0.5m-8m or custom
Structure 7*19 rope or 7*7 rope
Length 0.6m-50m or custom
Sample free sample
Use time Above 30years

Stainless Steel Rope Mesh can make the wire rope structure kinds:

  • 7*7​ rope
  • 7*19 rope
  • 1*19 rope
  • Or special custom

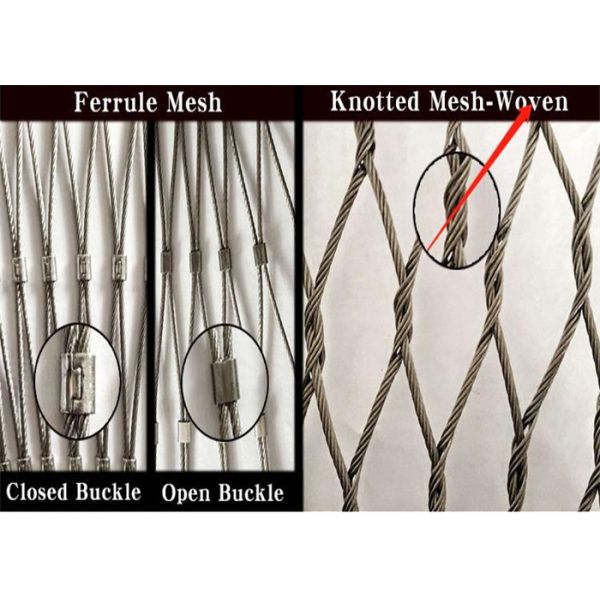

Stainless Steel Rope Mesh normal have 2kinds for reference:

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

Ferrule Kind Knitted kind

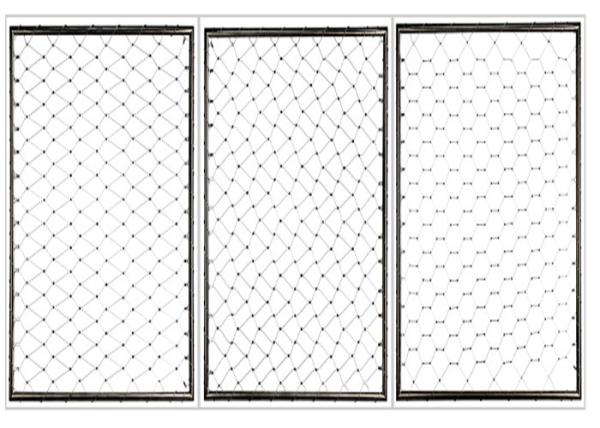

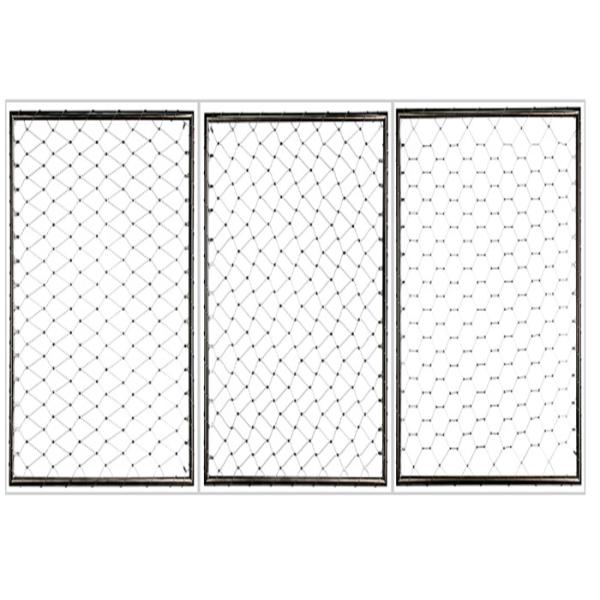

Stainless Steel Rope Mesh End sides have different types can choose:

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

Stainless Steel Rope Mesh size details:

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

Stainless Steel Rope Mesh advantages:

  • new and high quality material,
  • uniform hole size
  • woven tightly
  • enough height and length
  • surface bright and clean
  • strong strength tensile,
  • anti-UV,
  • anti-rust,
  • anti-corrison,
  • anti-resistant,
  • long use time,
  • fast delivery time
  • strong packing way
  • easy install

Stainless Steel Rope Mesh application:

  1. Saefty protection projects
  2. Decoration projects
  3. Security net
  4. Zoo mesh
  5. Helidek safety net
  6. Parking garage facades
  7. Fall protection
  8. Shopfitting.
  9. Facade greenery
  10. Balustrade infills
  11. Separation mesh

Stainless Steel Rope Mesh use accessories:

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

Show our Stainless Steel Rope Mesh pictures for reference:

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

Our company:

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection

60mm*60mm Hole Size 3.0mm Wire Diameter Stainless Steel Rope Mesh For Safety Protection
