10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline
10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline
10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline
10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline
10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline
10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline
Specifications
Brand Name :
H&F
Model Number :
HF-250405
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
1200 Square Meters
Price :
USD5.00 per square meter
Payment Terms :
T/T, Western Union
Supply Ability :
50000 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
50 rolls per bundle or as customers' requirements
Product Name :
Pipe Coating Reinforced Welded Mesh
Key word :
pipe concrete weight wire mesh
Material :
hot dipped Galvanized wire
Zinc coated :
75gm²~100g / m² or custom
Wire diameter :
1.8mm,2.0mm,2.2mm,2.4mm,2.7mm or custom
Hole Size :
25.4mm x 67mm
Surface treatment :
hot dipped galvanized
Line wire quantity :
10Lines or 6lines,8lines
Hardness range :
485N/mm2~650N/mm2
Middle line wire pitch :
25.4 mm
Exposed Wire Edge :
≤ 2.5 mm
Roll Length :
140m/145m/280m
Roll Width :
190.5mm
Sample :
Supply Free sample to you for confirm quality
Description

10Lines 145Meter Length Galvanized Pipe Coating Reinforced Welded Mesh for River Bottom Gas and Oil Pipeline

Pipe Coating Reinforced Welded Mesh Description:

Pipe Coating Reinforced Welded Mesh also called CWC Wire Mesh or Pipe coating Mesh.

Pipe Coating Reinforced Welded Mesh is one kind of our mesh.It is special design for the gas and

oil pipeline industry use.

Pipe Coating Reinforced Welded Mesh is made by professional machine.Choose our high grade

hot dipped galvanized wire.Make in uniform hole size and roll dimension.The roll length can make

in different size like export normal have 80m,100m,140m,145m,280m etc.

Pipe Coating Reinforced Welded Mesh surface bright and smooth.Easy open to use.Also have

strong anti-rust and anti-resistant features.So use widely River Bottom Gas and Oil Pipeline.

Pipe Coating Reinforced Welded Mesh specification list:

Product Name Pipe Coating Reinforced Welded Mesh
Material hot dipped Galvanized wire
Wire diameter 1.8mm,2.0mm,2.2mm,2.4mm,2.7mm or custom
Hole size 25.4mm x 67mm
Surface treatment hot dipped galvanized
Zinc coated 75gm²~100g / m² or custom
Middle line wire pitch 25.4 mm
Line wire quantity 10Lines or 6lines,8lines
Exposed Wire Edge ≤ 2.5 mm
Hardness range 485N/mm2~650N/mm2
Roll Width 190.5mm
Roll Length 140m/145m/280m
Sample Supply Free sample to you for confirm quality

Pipe Coating Reinforced Welded Mesh different specification for your choice:

10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline

Pipe Coating Reinforced Welded Mesh Good Advantages:

  • A coating reinforced with our Pipe Coating Mesh has uniform compressive strength.
  • The high bonding level between the concrete and the reinforcement obtained by a combination of the high specific
    and an optimum spread of the reinforcement throughout the entire layer of concrete increases the impact resistance
    of the coating.
  • The high degree of flexibility in the longitudinal direction of the Pipe is important for spreading and minimizing cracks
    during the laying of the pipeline.​
  • The use of hot-dip galvanized wire extends the lifetime of the reinforcement.
  • The exceptional continuity and uniformity enhances even more the ability of the concrete coating withstand impact.
  • The high tensile strength,when install use and make long time use.

Pipe Coating Reinforced Welded Mesh export 2Kinds of Lines number for choice:

10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline

10Lines Numer

Pipe Coating Reinforced Welded Mesh Export paking way:

  • In roll or In coil
  • 5Rolls or 6Roll make in one bundle
  • Then In Pallet
  • Or In wooden case
  • Also can In bulk Load container

Pipe Coating Reinforced Welded Mesh Applications:

  1. Subsea Gas & Oil Pipeline
  2. Chemical Processing Pipeline
  3. River Bottom Gas & Oil Pipeline
  4. Water and Wastewater Pipeline
  5. Everglades Gas Pipeline

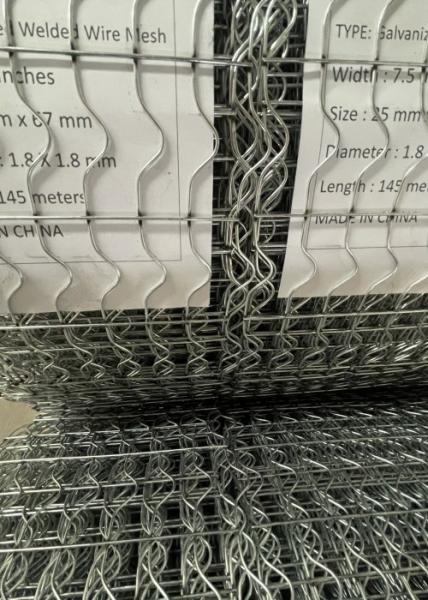

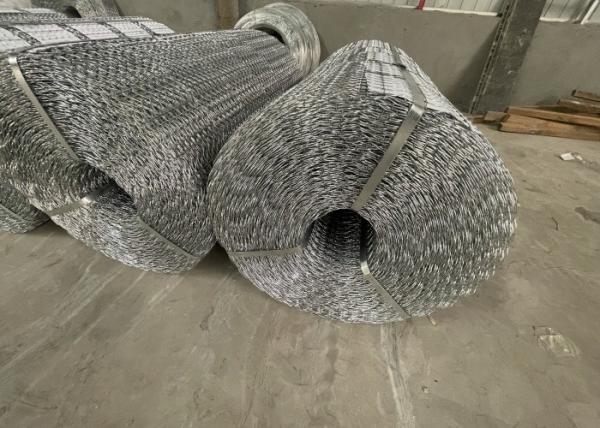

Show our Pipe Coating Reinforced Welded Mesh product pictures:

10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline

10 Lines 145 Meter Length Galvanized Pipe Coating Reinforced Welded Mesh For River Bottom Gas And Oil Pipeline
