TW-CL2000PCBA cleaning machine CE certification

The offline PCBA cleaning machine is an energy-saving and environmentally friendly, integrated high-end cleaning machine with small batch and multiple types of cleaning, which can automatically complete cleaning, rinsing, and drying functions; Mainly used in military and high-end precision products such as aviation, aerospace, electronics, medical, new energy, mining, automobiles, etc., it can effectively clean residual organic and inorganic pollutants such as rosin flux, water-soluble flux, and self-cleaning flux/paste on the surface of PCBA welded SMT/THT.

Characteristic:

1.Full process visualization: The cleaning room is equipped with a visualization window, and the cleaning room is equipped with lighting, making the cleaning process clear at a glance;

2.Fully automatic cleaning mode: complete the cleaning, rinsing, and drying processes in a cleaning room using a spray method, with a small footprint and compact structure;

3.Scientific nozzle design (patent): adopting a left and right gradually increasing distribution to improve cleaning efficiency, and an up and down staggered distribution to completely solve cleaning blind spots;

4.Adjustable pressure design for the upper, middle, and lower nozzles: to solve the collision and splashing problems of small-sized PCBA under high pressure spray conditions during cleaning;

5.Standard liquid tank heating system: greatly improves cleaning efficiency and shortens cleaning time;

6.Comprehensive cleaning system; Thoroughly and effectively clean the organic and inorganic pollutants such as rosin, water-soluble flux, cleaning free flux/solder paste left on the surface after PCBA welding of SMT and THT;

7.Convenient cleaning agent addition method: Automatically mix DI water and chemical solution according to the set proportion (5%~25%), and automatically add;

8.Lower operating cost: The built-in filtering device can achieve the recycling of solvents, reduce the amount of solvent used, and use compressed air blowing method at the end of cleaning: recover residual liquid in pipelines and pumps, which can effectively save 50% of cleaning agent;

9.The built-in heating system/condensation system in the liquid tank: more precise control of temperature, allowing for short-term warming and cooling within the set range;

10.More environmentally friendly and zero pollution emissions (authoritative SGS testing report): built-in rinsing solution discharge filtration system: effectively filters various impurities generated during the cleaning process, achieving safe and environmentally friendly emissions of COD, BOD, and PH.

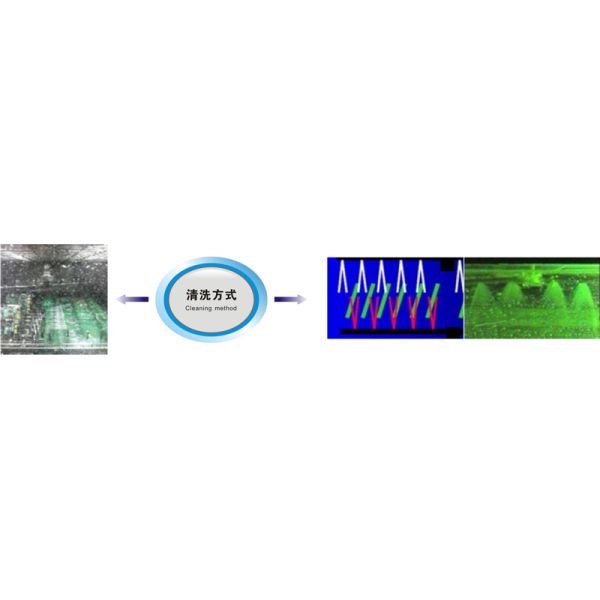

Working principle:

Technical Parameter:
