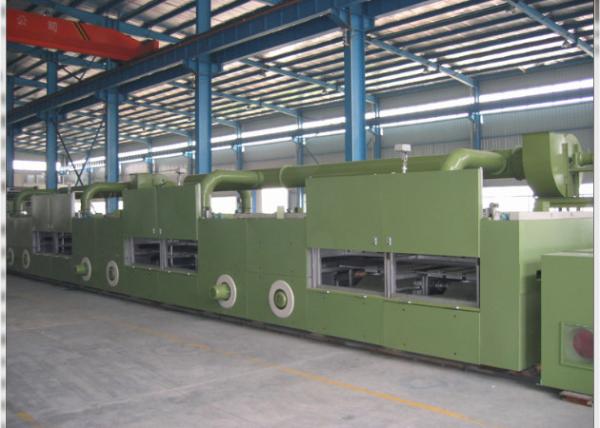

HMI Operation Textile Stenter Machine Nature Gas / Oil / Electricity / Steam Heating
HMI Operation Textile Stenter Machine Nature Gas / Oil / Electricity / Steam Heating
Specifications
Brand Name :
VIROCK
Model Number :
VK-NM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, T/T
Supply Ability :
4 sets per month
Delivery Time :
in 90 days
Packaging Details :
Wooden case
Padder roller quantity :
two/three bowel
Padder roller dia. :
400mm
Padder drive power :
15Kw
Exhaust No. :
2/3 sets
Dryer quantity :
As required
Guide roller dia. :
125mm
Packing standard :
Export packing
Pin/clip type :
Monforts type
Description

Friendly HMI operation Textile Stenter Machine , Even temperature , Multi-functional

1. Machine Application:

The VIROCK Stenter is enhanced and refined with the European Technology and the technical advice and feedback from the end users. It is designed to match the requirements of various kinds of fabric., from fabric feeding to overfeed, from stentering to cooling and to fabric exit. It is done just by adjusting the mechanical and electrical device on the machine, Various options are available to fulfill different requirements.

2. Technical data:

Roller width: 1400-3600mm Working width:

1200-3400mm
Heating source:

nature gas/ oil/ electricity/steam

 Width adjustment range:

700-3400mm

Chambers No.

 2-15 pcs Temperature of chamber:

100-230℃
Fabric held by:

clip/pin/combined

 Air pressure: above 0.5mpa
Padder type Finishing/Dyeing Installed power:

Approx 140Kw

3. Stenter chamber features:

1) Chamber equipped with double filters.

A suitable filter is provided just above the heat exchanger or in case of direct fired Natural Gas Burners, in the duct. The filter is easily accessible and can be cleaned standing outside the chamber while the machine is in operation. A second security filter is also provided.

2) Exhaust system.

The machine are provided with suitable quantity of exhausts to let out the moist and contaminated air efficiently from the chambers. The exhaust blowers are supplied with frequency controllers and moisture sensors to maintain uniform moisture and excellent drying results.

3) Heat recovery system.

The machine can be equipped with suitable heat recovery systems to pre-heat atmospheric air with the help of exhaust air, or to refeed into the stenter for higher temperature or to heat water to be used in processing machines or in boiler as feed water.
