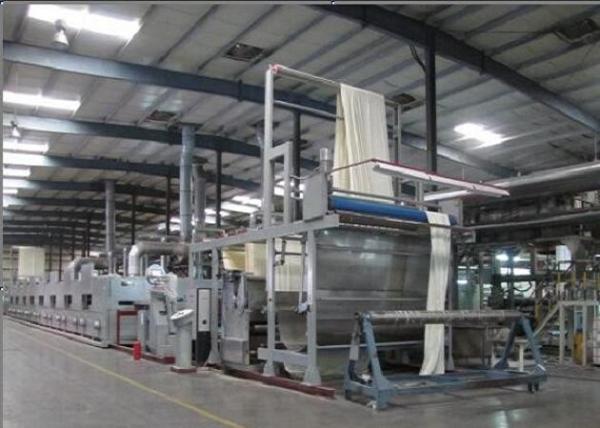

Gas Heated Hot Air Stenter Machine Woven Fabric Finishing Stenter Pin / Clip Combined
Gas Heated Hot Air Stenter Machine Woven Fabric Finishing Stenter Pin / Clip Combined
Gas Heated Hot Air Stenter Machine Woven Fabric Finishing Stenter Pin / Clip Combined
Gas Heated Hot Air Stenter Machine Woven Fabric Finishing Stenter Pin / Clip Combined
Specifications
Brand Name :
VIROCK
Model Number :
VK-NB
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Supply Ability :
4 sets per month
Delivery Time :
in 90 days
Packaging Details :
Wooden case
Payment Terms :
L/C, D/A, T/T
Fabric holding way :
pin & clip combined
Clip/pin type :
Monfort type
Chain type :
non-lubricated type
Operation control :
HMI controlled
Quantity of chamber :
Custom-built
Main drive mode :
single/double
Main drive motor capacity :
22Kw
Open way of chamber door :
Auto/manually
Weft straightner :
Mahlo/Pleva/E+L
Fabric exit :
Plaiting/batching
Description

Gas heated Woven fabric finishing Stenter , Pin & clip combined , High production

1. Description:

To prevent fabric distortion, obtain dimensional reliability, wrinkle resistance and temperature resistance is the main purpose of the stenters.
Through high temperature process, the stenter can bring the length and width ro determine dimensions of the textiles and heat set the finishing chemicals.

2. Stenter functions:

* Heat setting and fix different kinds of textiles.

* To control the fabric width.

* To finishing chemical applying on various types of textile.

* To control the moisture of the textile.

* To control the GSM of the textile.

* To dry fabrics.

* To control the shrinkage of the textile.

* Curing treatment for resin, water repellent fabric is done.

3. Machine flow-chat:

Open-width fabric entry --- Cloth guider ---- J-scray ---- Padder mangle --- Various tension applicator --- Weft straightner ---- Expanding roller ---- Lower overfeeding --- Screw expending ---Upper overfeeding --- Pleva or E+L Photocell device & Two-finger edge uncurler device--- Clipping/pinning-on ---- Chambers for heat setting ---Air cooling unit--- Clipping/pinning -off ---- End section --- Plaiting & batching.

4. Technical specifications:

Normal width: 1400-3800mm Working width:

1200-3600mm
Heat source:

naturegas/oil/

electricity

 Width adjustment range:

700-3600mm

Chambers No.

 2-10 Temperature of chamber:

100-230℃
Fabric held by:

clip/pin/combined

 Air pressure: above 0.5mpa
Overfeed range:

-10% to 30%

 Installed power:

Approx 120Kw

5. Feature advantages:

1) Temperature even: The temperature difference in each chamber is 2 degree.

2) High production: The air-volumn in each chamber is big, and the machine running speed is high.

3) High quality of finishing: The fabric is good hand-touch feeling.

4) Energy-saved: Gas consumption and power consumption is less.
