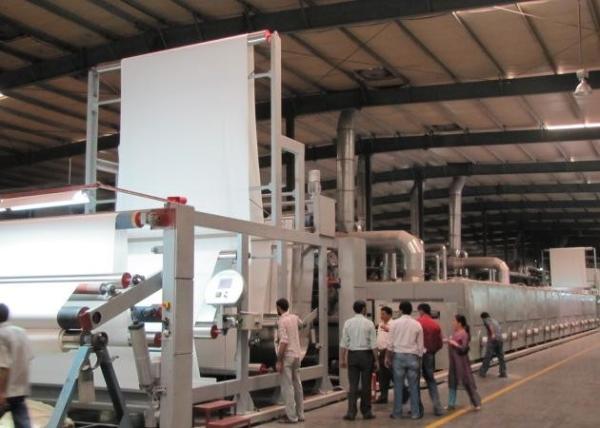

Thermal Oil Heated Fabric Stenter Textile Machine Knitted Fabric Heat Setting Machine
Thermal Oil Heated Fabric Stenter Textile Machine Knitted Fabric Heat Setting Machine
Thermal Oil Heated Fabric Stenter Textile Machine Knitted Fabric Heat Setting Machine
Thermal Oil Heated Fabric Stenter Textile Machine Knitted Fabric Heat Setting Machine
Specifications
Brand Name :
VIROCK
Model Number :
VK-NM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, T/T
Supply Ability :
4 sets per month
Delivery Time :
in 90 days
Packaging Details :
Wooden case
Brand of valve :
RTK or others
Quantity of dryer :
Optional
Automatic grade :
Automatic
Installation power :
App. 120Kw
Design speed :
150m/min
Chamber length :
3m/4m each
HMI brand :
Siemens/Omron
PLC brand :
Siemens/Mitsubishi
Description

Thermal oil heated fabric Hot Air finishing Stenter , Get temperature shortly

1. Machine working process:

Open-width fabric entry frame --- Infrared center device/Cloth guider ---- J-scray ---- Padder mangle with tension applicator --- Auto weft straightner ---- Expanding roller ---- Lower overfeeding --- Screw expending ---Upper overfeeding --- Edge guider & Edge uncurler device--- Clipping/pinning-on ---- Chambers for setting ---Air cooling unit--- Clipping/pinning -off ---- End section --- Plaiting & batching.

2. Feature advantages:

1) A limit switch is used. The machine will stop immediately when the fabric fails to be depinned and touch the rod of the limit switch.

2) The air-volumn in the chambers is big, the machine running speed is high.

3) Width-regulator: Can be controlled digitally on the computer. The width in each chamber can be regulated separately by individually motors. Limit switches also used to control the width regulation limitation.
