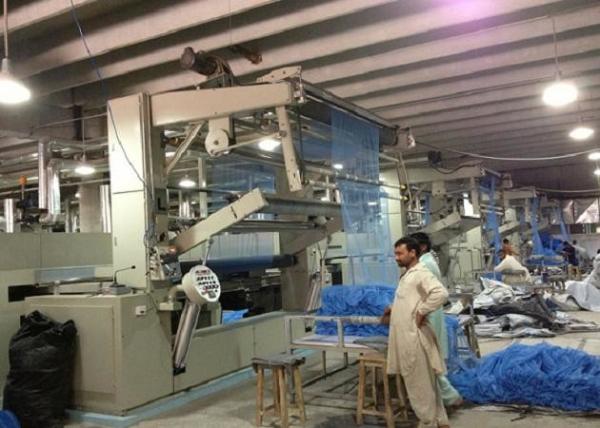

Friendly HMI Stenter Textile Machine , Custom - Build Textile Finishing Equipment
Friendly HMI Stenter Textile Machine , Custom - Build Textile Finishing Equipment
Specifications
Brand Name :
VIROCK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
as required
Delivery Time :
90 days
Packaging Details :
wooden case
Guide roller dia. :
125mm
Chamber quantity :
As customer's required
Main drive power :
18.5/22Kw
Padder type :
Slant padder
Padder quantity :
Optional
Padder motor capacity :
15Kw
Warranty :
1 year from B/L
Exit type :
Plaiting/Batching
Description

Advanced textile finishing Machine , Friendly HMI , custom - build

1. Process:

Open width entry --- Fabric positioning device ----Infrared center guider ---- Padder --- Tension applicator ---- Infrared center guider ---- Expanding roller (flat-wired type) ---- Lower overfeeding screw expending ---Upper overfeeding --- Edge detecting & four-finger uncurler device--- Pinning-on ---- Chambers for heat setting ---Air cooling --- Pinning-off ---- End section --- Plaiting & batching.

2. Main technical data:

Normal width: 1400-3800mm Working width: 1200-3600mm
Heat source:

naturegas/oil/

electricity

 Width adjustment range: 700-3600mm
Chambers No. 2-10 Temperature of chamber: 100-230℃
Fabric held by: clip/pin/combined Air pressure: above 0.5mpa
Overfeed range: -10% to 30% Installed power: Approx 120Kw

3. Stenter functions:

* Heat setting and fix different kinds of textiles.

* To control the fabric width.

* To finishing chemical applying on various types of textile.

* To control the moisture of the textile.

* To control the GSM of the textile.

* To dry fabrics.

* To control the shrinkage of the textile.

* Curing treatment for resin, water repellent fabric is done.
