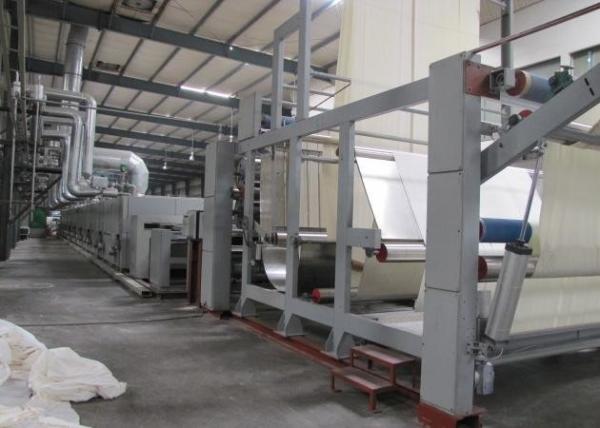

18.5Kw/22Kw Knitted Fabric Heat Setting Machine , Hot Air Stenter Machine
18.5Kw/22Kw Knitted Fabric Heat Setting Machine , Hot Air Stenter Machine
Specifications
Brand Name :
VIROCK
Model Number :
LVK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, D/A
Supply Ability :
4 sets per month
Delivery Time :
60-90 days
Packaging Details :
polywood case
Max. working width :
3600mm
Dryer quantity :
Customization
Chamber motor :
5.5Kw/7.5Kw
After-sale service :
Engineers are Available for oversea's market
Main drive motor capacity :
18.5Kw/22Kw
Drive mode :
Full inverter controlled
HMI :
Siemens or Mistubishi
Inverter :
Mistubishi
Description

Textile coating & finishing machine , Coating Lines For Suitcases or Bags

1. Machine description and applications:

The main function is to apply PVC/PU/AC and other adhesives (both water-based and solvent-based) onto the surface of the fabrics. By using the right mixtures of chemical products and the right application system, fabrics can be made waterproof, UV resistant, stain-proof, fireproof, etc, which is widely used in textile industry.

Application may vary according to specific needs. Sometimes the chemical product must provide a surface coating only, while in other cases it must penetrate deeply into the fabric in order to ensure different characteristics of strength and appearance depending on the performance required.The combination of the right products and application methods allows the creation of coated textile with excellent features and specifications.

2. Process Flow:

Fabric unwinding -> Fabric feeding -> Centering alignment -> Precision coating -> Hot air dryer -> Air cooling -> Water roller cooling -> Product rewinding

3. Technical data:

1) Working width : 1600mm-3600mm

2) Design speed: 10-100m/min

3) Heating source: Natural gas/thermal oil/steam/electricity/each two combined

4) Drive mode: Frequency converter controlled

5) Drying temperature: 90-230 degree

4. Machine Advantages:

1) Highest drying performance and process control matching any type of fabric due to the technically mature and efficient flow air circulation system.
2) Very homogeneous air flow and temperature distribution due to alternately arranged thermo zones (every 1.5m).
3) Very low specific energy consumption.
4) Exactly reproducible finishing results because of a complete automation and recipe administration in the line
5) Available types of heating: Gas direct, gas indirect, thermal oil, steam, electricity and combinations.
