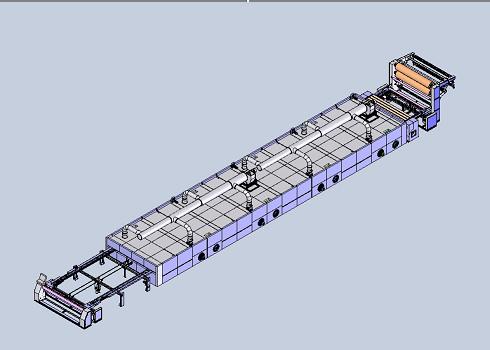

Plaiting / Batching Exit Stenter Machine Textile With Finishing Padder
Plaiting / Batching Exit Stenter Machine Textile With Finishing Padder
Specifications
Brand Name :
VIROCK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
as required
Delivery Time :
90 days
Packaging Details :
wooden case
Max. working width :
3600mm
Edge guider controller type :
Photocell type
Exhaust motor capacity :
5.5Kw
Cooling type :
Air cooling
Chemical tuff size :
1 L
Padder roller diameter :
400mm
Padder type :
Finishing padder
Exit type :
Plaiting/Batching
Description

Advanced woven Textile Finishing Machine , Humanized design , High productivity

1. Description:

Stenters are the heart of textile finishing.

Stenter is used for preventing distortion, obtaining dimensional reliability, wrinkle resistance and temperature resistance.

2. Technical specifications:

Roller width: 3600mm Working width: 3400mm
Heat source: nature gas Width adjustment range: 700-3400mm
Chambers No. 6 Temperature of chamber: 100-220℃
Fabric held by: clip/pin/combined Air pressure: above 0.5mpa
Overfeed range: -10% to 30% Installed power: Approx 120Kw

3. Stenter Automation process
Programmable Logic Control (PLC) and process visualisation.All fabric transport drives with frequency controlled AC drives.Controlled declaration of speed to final standstill for normal shutdown and emergency stop.Control and Monitoring instruments in the inlet and outlet area.Switch cabinet wired ready for connection designed for ambient temperature of maximum 45°C and a relative air humidity of 90%.12" touch screen at inlet, command input by touching the displayed range components.6" touch screen at outlet.Machine can be operated from outlet touch screen also in case of emergency.Other accessories like Panel A.C., CCD camera with monitor, Microphone with speaker, field wiring cables, cable trays are available on request.Set up automation for the operating parameters- Production speed- Fabric feed device- Stretching device- Overfeed device.Selvedge tensioning at the inlet device- Fabric width adjustment- Treatment temperatures- Air circulation- Exhaust air suction.Display of previous and current alarm reports.
