Simple Operation Stenter Machine Textile Finishing Machine 700-3600mm Working Width
Simple Operation Stenter Machine Textile Finishing Machine 700-3600mm Working Width
Specifications
Brand Name :
VIROCK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
as required
Delivery Time :
90 days
Packaging Details :
wooden case
Circulation motor capacity :
5.5/7.5Kw
Padder roller dia :
400mm
Padder roller quantity :
2/3 pcs
Entry rail length :
3m/6m
Dry quantity :
2-15
Working width :
700-3600mm
Padder type :
Slant finishing
Exit type :
Plaiting/Batching
Description

Advanced woven Fabric stenter Machine , Humanized design , Inverter controlled

1. Machine applications:

This machine is applicable to extending and heat setting of fabrics, such as pure cotton which gram per square meter is 50-400, polyester cotton and other blended fabrics.

The process is also used for artificial leather, PU, PVC, cotton, silk, blended fabric, color printing, bronzing transfer to base materials, also can be used as hot stamping glue compound of crepe fabric.

2. Main technical data:

Fabric width 1200mm-3600mm
Roller width 1400mm-3800mm
Padder mangle Finishing/Dyeing paddle
Padder roller quantity Two, Three
Padder roller dia 400mm
Chamber quantity 2-15 pcs
Guide roller diameter 125mm/150mm
Heating media Thermal oil/Natural gas/Steam/Electricity or any two combined
Pinning motor 0.75 Kw
Blower motor quantity in each chamber 4pcs
Exhaust Two, Three or Four

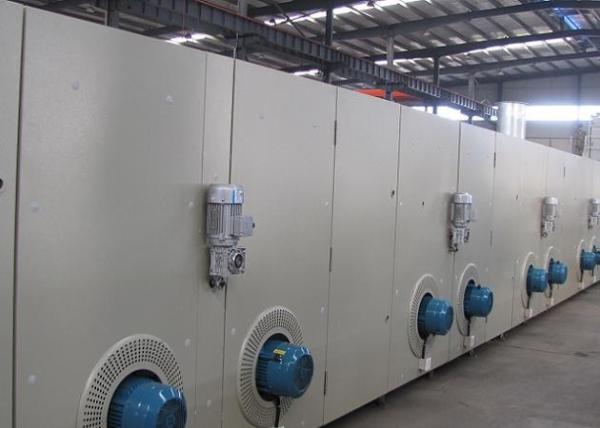

3. Stenter chamber features:

1) Chamber equipped with double filters.

A suitable filter is provided just above the heat exchanger or in case of direct fired Natural Gas Burners, in the duct. The filter is easily accessible and can be cleaned standing outside the chamber while the machine is in operation. A second security filter is also provided.

2) Exhaust system.

The machine are provided with suitable quantity of exhausts to let out the moist and contaminated air efficiently from the chambers. The exhaust blowers are supplied with frequency controllers and moisture sensors to maintain uniform moisture and excellent drying results.

3) Heat recovery system.

The machine can be equipped with suitable heat recovery systems to pre-heat atmospheric air with the help of exhaust air, or to refeed into the stenter for higher temperature or to heat water to be used in processing machines or in boiler as feed water.
