Specifications
Brand Name :
VIROCK
Model Number :
VK-280x8
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, D/A
Supply Ability :
4 sets per month
Delivery Time :
60-90 days
Packaging Details :
wooden case
Brand of valve :
RTK
Open way of the chamber door :
manually
Max.temp. of chamber :
220 degree
No. of exhaust :
2
Height of entry frame :
6m
Pad mangle type :
finishing type
Color of the machine :
Optional
Paiting type :
Powder coated
Description

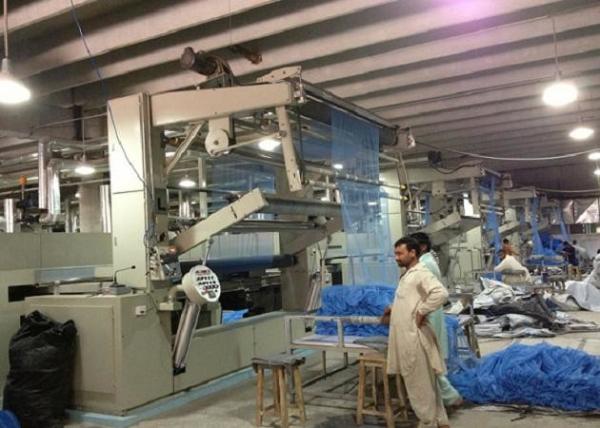

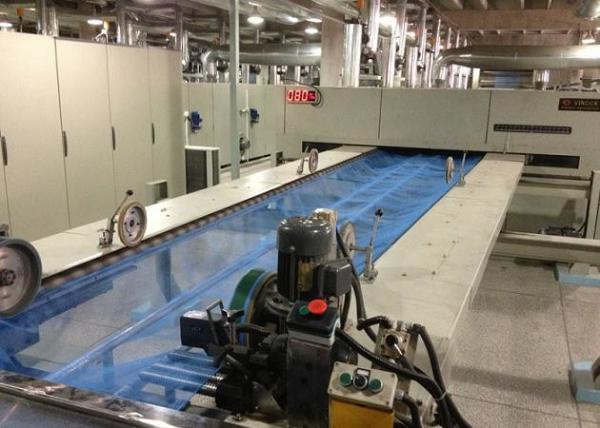

Open-width Mosquito-net finishing Stenter , Single pin , Thermal oil heated

1. Description:

This type of Virock stenter is designed to produce Mosquito-net. Together with the pad-mangle, the stenter can apply different special chemicals on the mosquito netting, strech and heat set the net at some temperature.

2. Machine features:

1) With HMI, PLC, inverters, the machine Automatic grade is high.

2) The exhaust pipe is placed inside of the chamber, which prevent the condensed water from the fabric.

3) High quality mosquito-net can be finished due to tension-free processing.

4) The width of each chamber can be adjusted individually.

5) The temperature of each chamber can be set on the HMI easily.

3. Technical data:

Normal width: 1400-3600mm Working width: 1200-3600mm
Heat source system: nature gas /oil / steam / electricity/combined Width adjustment range: 500-3600mm
No. of Chambers 2-15 Max. Temperature of chamber: 230℃
Fabric held by: clip/pin/combined Air pressure: above 0.5mpa
Overfeed range: -10% to 80% Installation power: App. 120Kw
