Servo Motor Textile Screen Printing Machine With Magnetic Table / Adjustable Glue Thickness
Servo Motor Textile Screen Printing Machine With Magnetic Table / Adjustable Glue Thickness
Specifications
Brand Name :
VIROCK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
4 sets per month
Delivery Time :
60-90 days
Packaging Details :
wooden case
Patter repeat length :
640,820,914,1018
Individual driving motor type :
Servo motor
Printing woking width :
1200mm to 3000mm
Dryer No. :
Optional
Heating source :
gas/oil/steam
No. of exhaust :
Optional
Description

Human - based design Rotary Screen Printing Machine , individual driving

1. Application:

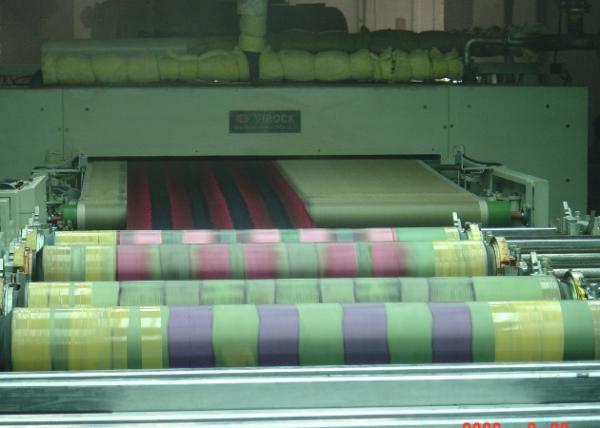

The product is the Magnetic rod style rotary screen printing machine,suitable for knitted, Woven fabric.For the high quality printing production from the Min.width to Max.width.


2. Main parameters:

Production model VK608
Printing type Magnetic/squeegee/combination
Nominal width 180,200,220,240,260,280,300,320
Effective printing width (mm) A series standard 1620,1850,2050,2250,2450,2650,2850,3050
B series standard 1620,1850,2000,2200,2400,2600,2800,3000
Standard colors 4.6.8.12.16
Repeat size (mm) 640,820,914,1018
Printing varieties Knitted, woven fabric processing

3. Main features

  • Magnetic table: professional magnetic table provides eveness printing permeation, magnetic table is the latest design of elctromagnetic type coil, high precision mechanical contracture makes printing paste permeate uniformly,no left,middle,right chromatism, maintenance free.
  • Coating: thermoplastic or hydrosol(customer chooses any type),glue thickness is adjustable when coating.
