Premium Grade Stereo Vacuum Tubes CV181-T MKII 4 Pins Socket Featuring
Premium Grade Stereo Vacuum Tubes CV181-T MKII 4 Pins Socket Featuring
Specifications
Brand Name :
PSVANE
Model Number :
CV181-T MKII
Certification :
Rhos
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Type :
Audio Tube
Model :
CV181-T MKII
Brand :
PSVANE
Application :
tube amplifier
Socket :
4 pins
Material :
Glass
Description

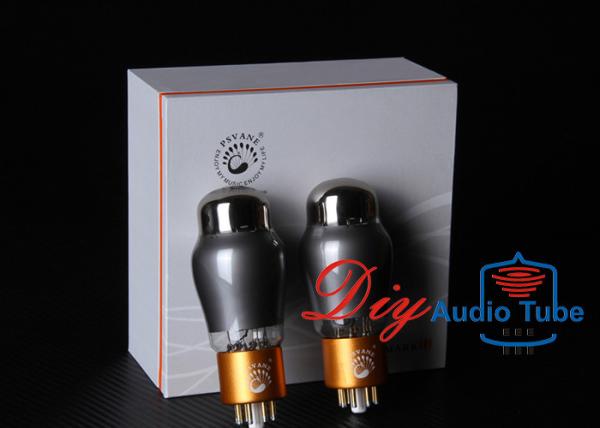

Matched pair psvane CV181-T MKII Premium grade replace Shuguang CV181 Stereo Vacuum Tubes

CV181-TII

TII-Series: Positioning in exceeding totally, not only exceed all the same types of productions that always been imitating on the market, but also to exceed itself.

CV181-TII is double triode, used in voltage amplification circuit, Can be replaced directly by 6N8P and 6SN7GT.

Heater
UH………… 6.3 V

IH ………… 0.6 A


Static Parameter
Ua ………………………… 90 250 V

Ug………………………… 0 -8V

Ia ………………………… 10 9 mA

Gm………………………… 3 2.6 mA/V

Ri ………………………… 6.7 7.7 kΩ

μ ………………………… 20 20

Ia when Ug=-12.5V _ 1.3mA

Ug whenIa=-10uA - 7 -18V

Maximum Rating
class A1
Ua………………………… 450V

Ik………………………… -20mA

Pa ………………………… 5w

Pa(No.1+No2) ………… 7w

Rg ……………… 1MΩ

Uhk ………………±100V

Premium Grade Stereo Vacuum Tubes CV181-T MKII 4 Pins Socket Featuring

Premium Grade Stereo Vacuum Tubes CV181-T MKII 4 Pins Socket Featuring

Premium Grade Stereo Vacuum Tubes CV181-T MKII 4 Pins Socket Featuring

Premium Grade Stereo Vacuum Tubes CV181-T MKII 4 Pins Socket Featuring

Premium Grade Stereo Vacuum Tubes CV181-T MKII 4 Pins Socket Featuring
