Western Electric Stereo Vacuum Tubes Filament Heating If DC 3.25A PSVANE WE211
Western Electric Stereo Vacuum Tubes Filament Heating If DC 3.25A PSVANE WE211
Western Electric Stereo Vacuum Tubes Filament Heating If DC 3.25A PSVANE WE211
Western Electric Stereo Vacuum Tubes Filament Heating If DC 3.25A PSVANE WE211
Western Electric Stereo Vacuum Tubes Filament Heating If DC 3.25A PSVANE WE211
Western Electric Stereo Vacuum Tubes Filament Heating If DC 3.25A PSVANE WE211
Specifications
Brand Name :
PSVANE
Model Number :
WE211
Certification :
Rhos
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Price :
Negotiable
Type :
Audio Tube
Model :
WE211
Brand :
PSVANE
Filament heating :
Uf (DC) 10V, If (DC) 3.25A
Input capacitance :
6PF
Output capacitor :
5.5PF
Description

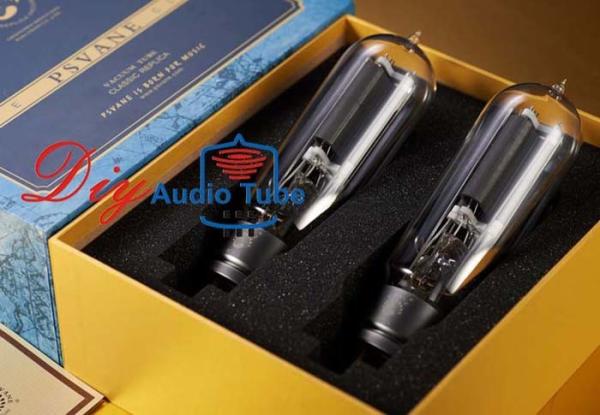

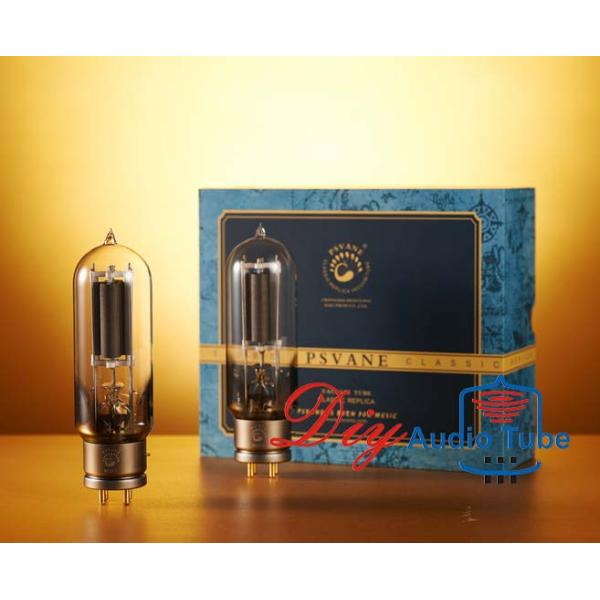

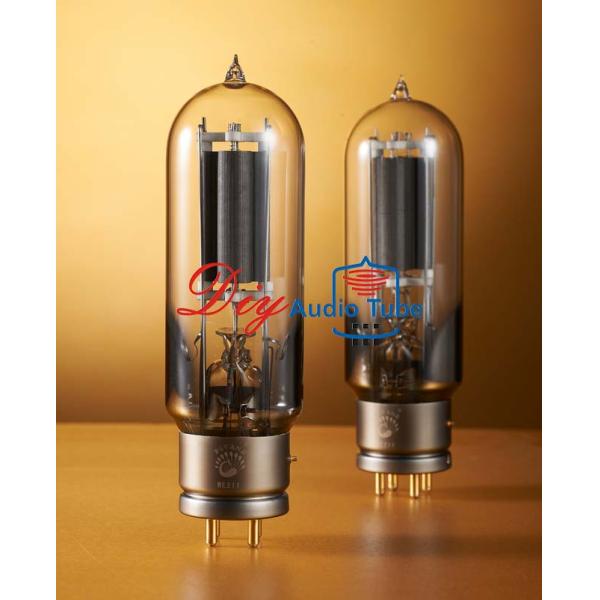

PSVANE WE211 Vacuum Valve Tube WE 211 Western Electric Vacuum Tubes

Item specifics:

Type: Vacuum tube

Brand: PSVANE

Model: WE211

Country/Region of Manufacture: China

Description:

WE211 is direct-heated type thorium tungsten cathode triode, can be used as class A, B and C.

Feature:

Heater
Uf--------------------------------------10 V
If---------------------------------------3.25 A

Direct Interelectrode Capacitances
input----------------------------------6 PF
output----------------------------------5.5 PF
grid to plate----------------------------------14.5 PF
Static parameter
Ua--------------------------------------1250 V
—Ug------------------------------------70 V
Ia--------------------------------------100 mA
Gm-------------------------------------3.8 mA/V
u( Ia=75mA )---------------------------12
RL--------------------------------------7 KΩ
Pout------------------------------------10 W


Recommended Operating Conditions ( reference value)
class A(A-F) for two tubes:
typical working condition limited parameter
Ua--------750 1000 1250 1250 V
Pa----------------------------75 W
—Ug-------46 61 80 V
Ug(pk)-----41 56 75 V
Ia(0)-------34 53 60 mA
ri---------4.4 3.8 3.6 KΩ
RL--------8.8 7.6 9.2 KΩ
Pout-------5.6 12 19.7 W

Push-pull. class B(A-F)
typical working condition limited parameter
Ua------------------ 1000 1250 1250 V
Ia (mAx.sig per tube)-------------------175 mA
Pa (in) (mAx.sig per tube)--------------- 220 W
Pa (per tube)------------------------- 100 W
—Ug------------------72 95 V
Ug(pk)-----------------380 410 V
Ia (0)------------------20 20 mA
Ia(mAx.sig)-----------320 320 mA
Pd(mAx.sig)------------7.5 8 W
RL(a—a)---------------6.9 9 KΩ
Pout------------------200 260 W
