Specifications
Brand Name :
Shuguang
Model Number :
805A-T
Certification :
Rhos
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Model :
Shuguang 805A-T
Package :
Gift Box
Type :
HIFI AMP Tube
Price :
Negotiable
Description

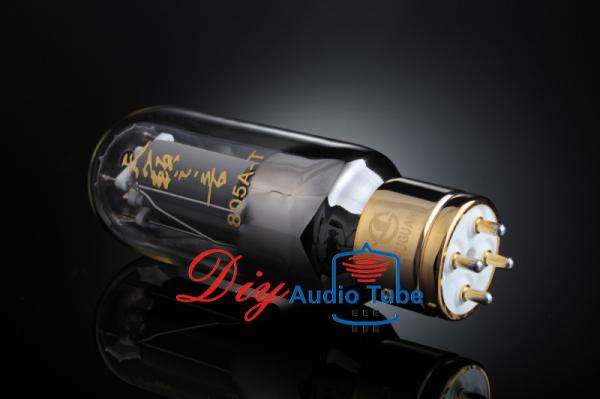

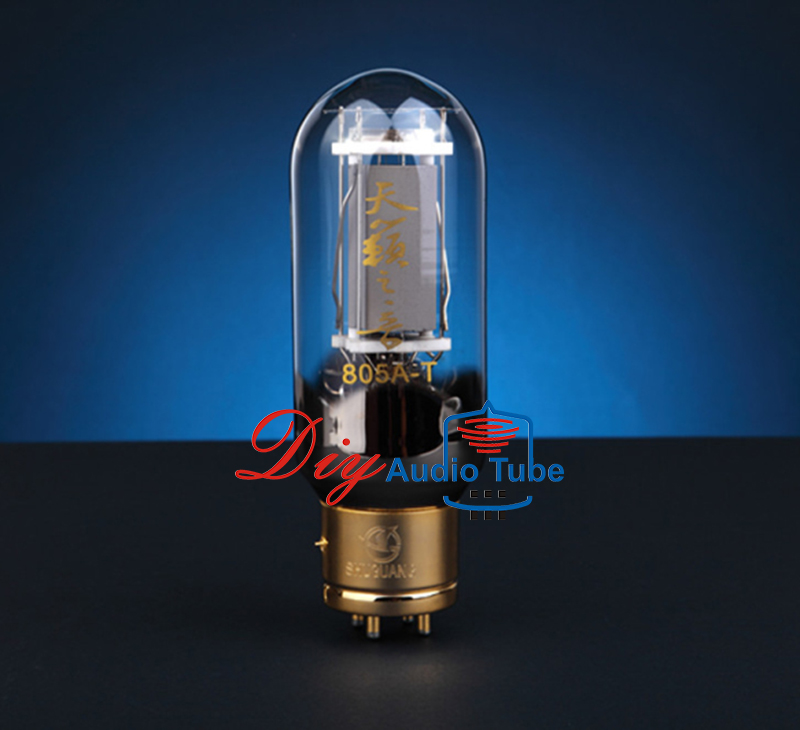

Shuguang 805A-T 805 Nature Sound Series Vacuum Tubes Hi-End HIFI AMP Tube

Improved structure over the old Shuguang 805, model for safe shipping, wider diameter (2 1/2″) for stability and quick heat dissipation, gold coated brass base to improve shielding to interference, Gold coated pins to enhance connection over long term, Can be used to replace Shuguang 805 directly, all parts are selected to the highest grade plus only highly experienced workers to assemble, suggested burn-in time is 75-150 hours.

Tube type: Triode, vacuum Power/Output


Ua………………………1250 1500 1500 V
Ia(max.sig.per tube)……………210 mA
Pa(in)(max.sig.per tube) z……315 W
Pa (per tube) ………………………125 W
Ug……………………………………-16 V
üg(pk)…………………235 280 V
Ia(0)……………………148 84 mA
Ia(max.sig)……………500 600 mA
Pd…………………………6 7 W
RL(a-a)……………………6.7 8.2 kΩ
Pout(max.sig)…………300 370 W

Ua………………1250 1500 1500 V
Ug…………………………-10 V
Ia………………135 115 150 mA
Pa(in)……………………………………185 W
üg(pk)…………70 70 V
Ig………………15 15 mA
Pd………………11 7.5 W
Pout……………55 57.5 W

Ua………………1000 1250 1500 1500 V
Ug………………-95 -100 -105 -500 V
Ia………………200 200 200 210 mA
Ig………………40 40 40 70 mA
Pa(in)………………………………………………315 W
Pa……………………………………………………125 W
üg(pk)…………225 230 235 V
Pd………………8.5 8.5 8.5 W
Pout……………130 170 215 W
