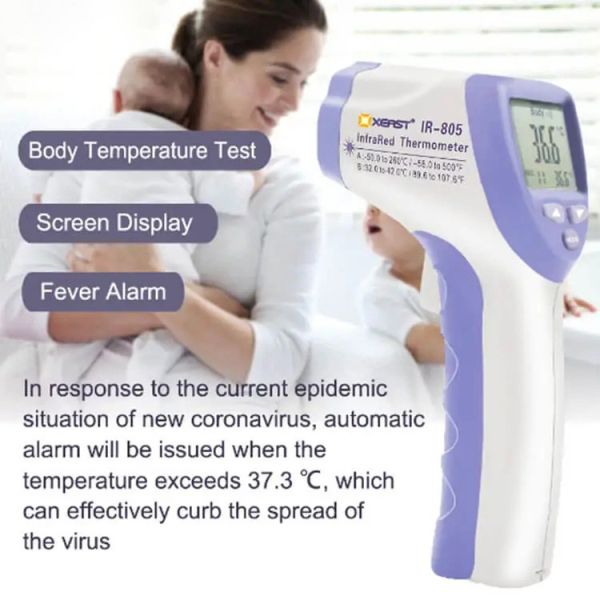

Handheld Medical Infrared Forehead Thermometer Baby Non Touch Thermometer
Medical supplies baby Infrared Digital Body Non-contact IR Infrared Thermometer
IR-805, this household product is a professional hand-held non-contact infrared thermometer which can reduce cross infection effectively.
The meter has two measuring modes of BODY and SCAN and is widely used for measuring temperature of human body, environment, milk, coffee, water, etc. Under BODY mode, use the meter to test the temperature of temporal artery, which is the middle of the forehead
from the hair line down to brows, could get stable and accurate measuring.Too much to right or left in the middle of the forehead
will bring an inaccurate temperature reading.
Features
* Precise non-contact measurement *User selectable units and modes
* Backlight LCD display *Memorization of latest 32 measurements
* Auto data hold *Auto power off
* Automatic measurement range selection with resolution of 0.1ºC/ 0.1ºF
Safety
* Please read this user's manual thoroughly before using this unit
* For the most accurate results, making reading with and ambient temperature of 10~50ºC
* Do not use the meter near electrified objects to avoid electric shock
* Do not use the meter in the relative humidity over 85%
* Do not use volatile liquid to clean the unit, swipe it with dry soft cloth.
* Do not disassemble the unit, repair it by qualified personnel
Operating Instruction
.1 Notice before operation
* If the meter has been stored in a cold or hot environment, allow it 15 to 20 minutes to acclimate to room temperature before
making measurements.
* Measurement readings are varied from skin color and thickness
* Do not keep the meter in the sun or immerse it in water
Note: Make sure the skin is dry and that no hair interferes with the measurement.
2,Normal body temperature range for different parts of body | ||||
Measuring parts | Normal Temperature | |||
Anus | 36.6ºC~38.0ºC/97.8ºF~100.4ºF | |||
Oral | 35.5ºC~37.5ºC/95.9ºF~99.5ºF | |||
Armpit | 34.7ºC~37.3ºC/94.4ºF~99.1ºF | |||
Ear | 35.8ºC~38.0ºC/96.4ºF~100.4ºF |
3,Normal body temperature range for different ages | ||||
Ages | Normal Temperature | |||
0~2 | 36.4ºC~38.0ºC/97.5ºF~100.4ºF | |||
3~10 | 36.1ºC~37.8ºC/97.0ºF~100.0ºF | |||
11~65 | 35.9ºC~37.6ºC/96.6ºF~99.7ºF | |||
>65 | 35.8ºC~37.5ºC/96.4ºF~99.5ºF |
Specifications | ||||
Measuring Range | BODY: 32.0ºC~42ºC(89.6ºF~107.6ºF) SCAN: -50ºC~260ºC(-58ºF~500ºF) | |||
Accuracy | 32.0ºC~35.9ºC(89.6ºF~96.6ºF): ±0.3ºC/0.5ºF 36.0ºC~39.0ºC(96.8ºF~102.2ºF): ±0.2ºC/0.4ºF 39.1ºC~42.5ºC(102.3ºF~108.5ºF): ±0.3ºC/0.5ºF | |||
-50ºC~0ºC(-58ºF~32ºF): ±3ºC/5.4ºF 0ºC~260ºC(32ºF~500ºF): ±1.5% or ±2ºC/3.6ºF | ||||
Resolution | 0.1ºC/0.1ºF | |||
Measuring Distance | 5~15cm | |||
Operating Temp. | 10ºC~50ºC | |||
Relative Humidity | ≤85% | |||
Auto Power Off | Meter shuts off automatically after 8 seconds of inactivity | |||
Power Supply | 9V battery | |||
Weight | 176g | |||
Dimensions(L*W*H) | 155×100×42mm |
