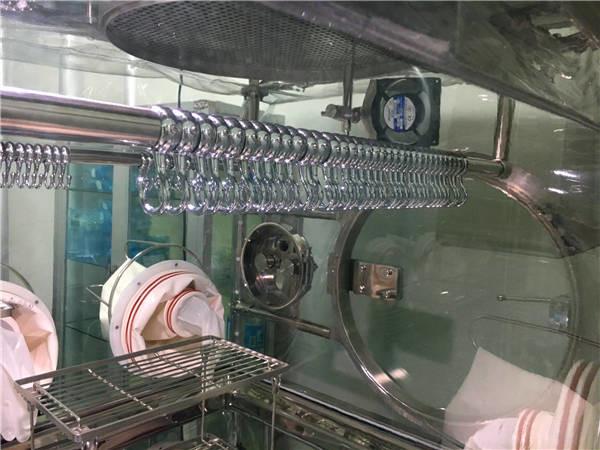

Laminar flow pvc compounding aseptic isolator with 4 gloves for pharmaceutical industry

isolator.pdf brochure

Hard cabin structure consisting of stainless steel + tempered glass;

The ventilation mode is sent to the top row, and the airflow model is engineering turbulence, which greatly reduces the air volume and simplifies the design of the room ventilation system;

The material door is inflated and sealed, with pneumatic locking and working state interlocking function;

Equipped with H14 grade tank sealed high efficiency air filter;

Integrated vaporized hydrogen peroxide sterilization system and YT-601A, YT-608A type aseptic detection system;

Siemens PCL+ touch screen automatic control;

The air lock chamber can continuously perform biological decontamination on the surface of the article to avoid pollution caused by material transfer, and meet the needs of rapid multi-batch experiments;

With data curve printing and storage.

The isolation system is sealed or has a microbial filtration system (HEPA) that provides air and is self-cleaning. When confined, use only the purified interior surface or use the fast transfer channel for material transfer. When opened, material is only allowed to pass in and out through a specific, designed and verified opening to remove the transfer of contamination. It can be used to isolate active mixtures during aseptic processing or for both sterilization and isolation

• Sterile laminar flow isolators are excellent sterile barriers that provide good environmental control for minimal false positive interference during aseptic processing. With advanced material transfer technology and biological decontamination methods, it can effectively reduce bioactive substance pollution up to 106. Depending on the process characteristics and requirements, special design systems and configurations are available to suit different batch and process flows. Through the configuration selection system determined by the end user, the operating state of the isolator can be changed to a positive pressure operation or a negative pressure operation mode, so that the system has versatility to meet the operational needs of sterile or positive bacteria detection.
• Hard hatch structure consisting of fully enclosed stainless steel and tempered glass;
• The cabin is welded integrally with 316L stainless steel, and all internal angles of the inner cavity are arc angles, which are convenient for cleaning and sterilization operations;
• Completely unidirectional airflow mode provides an exceptional aseptic operating area;
• The airflow mode is a vertical unidirectional airflow that quickly eliminates biofouling during ventilation;
• The material door is inflated and sealed, with pneumatic locking and working state interlocking function;
• Integrated or independent hydrogen peroxide sterilization can effectively reduce bioactive substance pollution up to 106;

Parameter

1. Multi-parameter monitoring system such as cabin temperature, relative humidity and pressure, supporting real-time printing, storage and other functions

2. Built-in weighing device can be built in, and the explosion-proof function can be customized. Comfortable operation, low noise, low operating energy

3. All functions with negative pressure isolators can be installed in Class D clean rooms or rooms without cleanliness
