Registration Plate Making Machine , Acrylic Vehicle License Plate Making Machine
Registration Plate Making Machine , Acrylic Vehicle License Plate Making Machine
Registration Plate Making Machine , Acrylic Vehicle License Plate Making Machine
Registration Plate Making Machine , Acrylic Vehicle License Plate Making Machine
Specifications
Brand Name :
Winteam
Model Number :
YT-S1800
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 sets
Price :
Negotiable
Name :
license plate production line
power :
12kw
plate roll load :
400kg
speed :
800-1000pc/h
Material :
Aluminum Alloy or acrylic
condiction :
new
Description

automatic production line license plate japan servo License plate production line

Automatic production line license plate.pdf

Main Features

1. Strips were payoff and feed to power press and then Number plate was blanked etc automatically.


2. Straightener and plastic film covering device were combined in one machine, full automatically and saving space.

3. Press feeder adopted NC SERVO ROLL FEEDER. Feeding length is no limited, feeding speed is fast and feeding tolerance is precious.

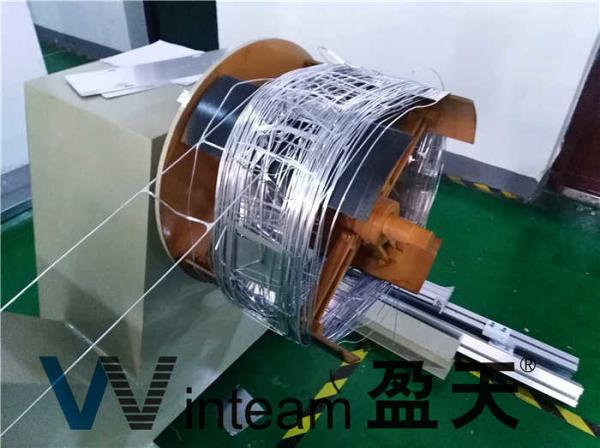

4.Scrap strips were rolled in coil automatically.

Feature and advantage

1. Save factory space. 2 machines (decoiler straightener) together in one.

2. High feeding precision: +/-0.05mm

3. Suitable for material thickness: 0.2-3.2mm.

4. Suitable for all kinds of metal coil automatic straightening and feeding, easy to operate.

5. Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous

pressing production, straightening and feeding.

6. Japan servo motor, PLC and other electrical parts, with little malfunction and long using

time. High quality, lowest maintenance.

7. Can feed different length at the time, easy operation, safe and high stability.

8. We can customize the machine.

9. Fast speed: 20m/min.

10. Coil car , pressing arm, conveyer belt , shearing machine , oiling machine etc. for

choosing.

Terms and Conditions:

  • Payment terms: 60% T/T prepay,40% when you see the copy of B/L
  • Packing: Export Wooden case.
  • Delivery: N.A. work days from date of contract signing (down payment)
  • Validity: 180 days from the day quoted.
  • Guarantee period: 12 months

Parameter

main parameter
length 10-12m
produce speed 25-30pc/min
total power 12kw
suppier 3ph 380v 50hz

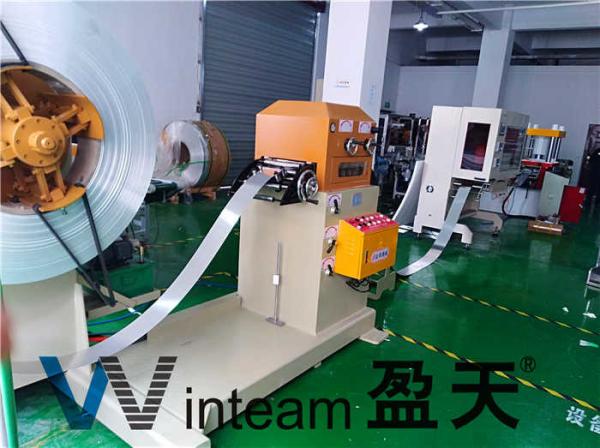

discharge and leveling machine
size(mm) 1900*900*1350
power 1.5kw
loading 400kg
past foils machine
size(mm) 1500*870*1800
power 1.8kw
loading 30kg foils
Correction automatic
feeder
size(mm) 1170*530*1200
power 2.3kw
die cutting
size(mm) 1250*1500*2600
pressure 60T
produce speed 25-30pc/min
recycle
size(mm) 1800*750*1100
power 0.75kw
loading 400kg

Registration Plate Making Machine , Acrylic Vehicle License Plate Making Machine

Registration Plate Making Machine , Acrylic Vehicle License Plate Making Machine

Registration Plate Making Machine , Acrylic Vehicle License Plate Making Machine

FAQ
Q: Do all products have English operating interfaces and operating manuals?
A:Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version.

In addition, there are are operating videos for our products for the convenience of customers to use.

Q: How is the after-sales service of your company?
A:We offer quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only
Q: What is your MOQ of the spray dryer?
A:1 set.
Q: How long is your delivery time of spray dryer?
A: Generally it is depending on order quantity.The specific time can be negotiated.
Q: How to choose suitable spray dryer?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.
Q: How to solve the equipment trouble during using ?
A:Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
