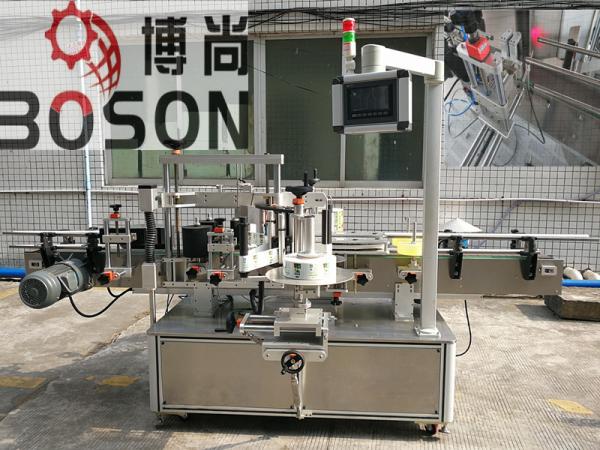

Oval Bottle labeling machine two stickers on bottles 5000B/H - 8000B/H Capacity per hour
Oval Bottle labeling machine two stickers on bottles 5000B/H - 8000B/H Capacity per hour
Specifications
Brand Name :
Boson
Model Number :
WT-650GS-
Certification :
CE
Place of Origin :
Guangzhou
MOQ :
1 Set
Price :
19500USD-38000USD
Payment Terms :
T/T, L/, Western Union, L/C
Supply Ability :
40 Set/Month
Delivery Time :
20days
Packaging Details :
Woodcase(Inner with PE packaging film)
Capacity per hour :
Oval bottle 5000-8000B/H
Labeling Precision :
±1mm
Label height max. :
190mm
Paper roll inner diameter :
76.2mm
Label outer diameter :
330mm
Packaging material :
Adhesive Labels
Electric machine :
Imported motor
Domain :
Bevarage/Drinks/Daily Chemical
Description

Bottle labeling machine which can place two stickers on bottles

Applications for

1 , This double sides sticker labeling machine suit for front and back labels labeling of the square bottle,flat bottle and round bottles (when the label size is not over 1/3 girth of round bottle) speed 5000-8000B/H

2 , It can install round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3 , Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some cone bottles. can accept custom according to your labeled samples .

4 , Labeling head: new type,width 200mm,suit max label high 190mm,eight orienation adjustment

5 , We can provide ribbon date printer and injek printer for options

6 , When you have a lot of kinds of bottles,when labeling,only need to adjust institution

7 , If you also have oval bottle,then only need to adjust oval bottle synchronous chain correcting institution , easy to opearate

8 , We can also design according to your requirement

Technical Parameters

Production speed 45m/min
Labeling accuracy ±1mm
Label max width 190mm
Bottle diameter 30-100mm
Label inner diameter 76.2mm
Label outer diameter Max330mm
Outline size L4048×W1400×1650mm
Air source 4-6KG 30L/MIn
Using power 220V 50HZ 1200W

Most Advantage

1. The labeling machine can achieve front and back side labeling of round bottle, flat bottle, square bottle, special-shaped bottle)

2. Adopting a rigid double sided synchronous oriented chain, automatically guarantee the bottle in center, low requirement on workers ' correct putting position, greatly reducing the difficulties of the workers ' jobs for lining and docking.

​3. The labeling system save a lot of labor cost,after adjusting the machine for bottle,no need to recheck ,from label on the first bottle and last bottle area are same.this means labeling accuracy is very stable and high

4. The machine can work separately or work on production line.

5.All industries double sides labeling products,and round bottle labeling such as daily chemicals, petroleum, machine oil, cleaning supplies, food and beverage, pharmaceutical and so on.

Labeling bottles

Oval Bottle labeling machine two stickers on bottles 5000B/H - 8000B/H Capacity per hour
