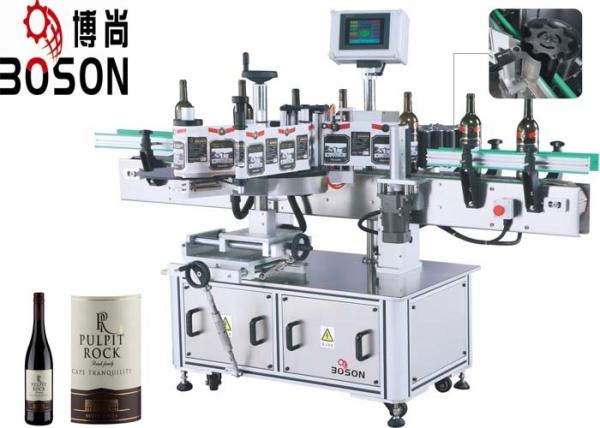

Pulpit Rock Wine Sticker Label Applicator , Round Bottle Sticker Labeling Applicator

Product Characteristic

1 , The model used in cosmetics, beverage, pharmaceutical and other industries do not locate high speed labeling round bottle

2 , In the English-touch operating system, the real man-machine dialogue, easy to learn

3 , Sent to scaler 8-dimensional space can be adjusted, different sizes of replacement quick and easy adjustment

4 , The especially high demand for the full week posted; the use of active drivers and curved rubber roller nylon baffle combination, can significantly reduce the cone due to product labeling and other unknown factors that caused the error.

5 , Dedicated to a week or semi-weekly round bottle labeling, labeling and high precision, no bubbles and folds have

6 , According to customers need to connect the assembly-line production line, stand-alone operation can increase the automatic feeding accessory equipment, can also be specially designed according to customer requirements

FEATURES

1 , Touch Screen operation system, easy to operate, multi-functions with online help function.

2 , Structure designed simple, smart, easy to maintenance.

3 , Use famous brand motor driven, label supply stable and reliable.

4 , PLC control system, the whole machine work stable with high speed.

5 , Common diverter is suitable for different diameter of bottles, fast adjustment and locked location.

6 , Labeling speed, convey speed, diverter speed can be adjusted.

7 , Use resilience cotton belt ensure labeling smooth, no fold, improved labeling quality.

8 , Photoswitch inspection to ensure no bottle, no labeling; no label, autocorrection and alarm.

9 , Coding Machine for option, it can print date, lot No. online.

Application

1 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

2 , The machine is apply to the Daily Chemical and Food Industry,

3 , Labeling max width is 190mm(can be raised according to the require).

4 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.

Technical Parameters

Advantages

1 , Most component are made by aluminum of anodizing 3.0 side board ,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.

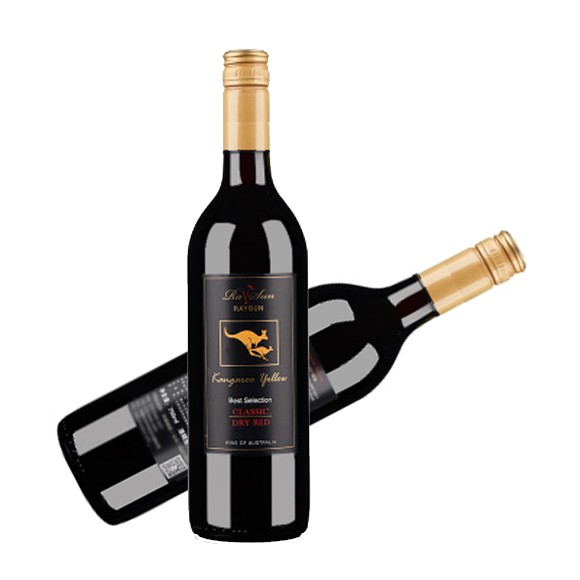

Labeling Samples
