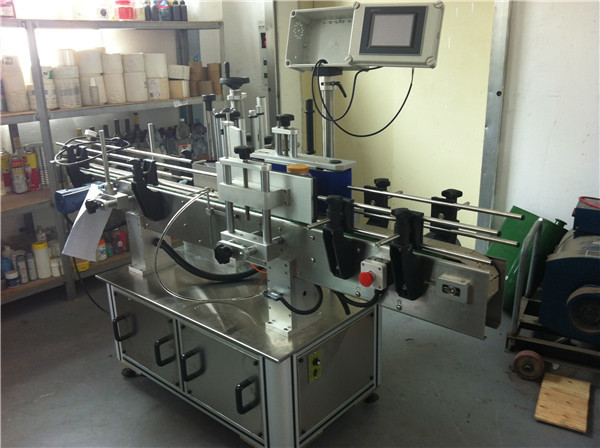

Fruit / Vegetables Juice Round Bottle Sticker Labeling Machine For Drink Industry

1 , This kind of machine is apply to label round bottles in daily chemicals,beverages,pharmaceuticals.

2 , This kind of machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.

3 , This kind of machine is particularly applicable to circular label for 30-80mm diameters round bottles,high repeat accuracy,without air bubbles,with special design.

4 , no need the structure of separate bottle it makes the system easier,higher efficiency.

5 , The range of labels is extended because of high-power servo motor.Solves the common problem of the insufficient strength.

5 , This kind of machine is our company patent technology.The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.

6 , It can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.

7 , The advanced kind human interface system,on-line helping system,really humanized.it is easy to operate so the workers can operate the machine in several hours.

Technical Parameters

Application

1 , The machine is apply to the Daily Chemical and Food Industry.

2 , Labeling max width is 190mm(can be raised according to the require).

3 , Bottle diameter:30-100mm, Label inner diameter is 76.2mm.

4 , Max outer diameter is 330mm.

5 , The air pressure pump of air source is 4-6KG,about 30L/MIn.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.
