Accuracy Round Bottle Sticker Labeling Machine / Pressure-Sensitive Wrap Around Labeler For Cans
Accuracy Round Bottle Sticker Labeling Machine / Pressure-Sensitive Wrap Around Labeler For Cans
Specifications
Brand Name :
Boson
Model Number :
WT-630GS
Certification :
CE
Place of Origin :
Guangzhou
MOQ :
1 Set
Price :
10000USD-38000USD
Payment Terms :
T/T, L/, Western Union, L/C
Supply Ability :
40 Set/Month
Delivery Time :
20days
Packaging Details :
Woodcase(Inner with PE packaging film)
Capacity :
4000B/H around
Labeling accuracy :
±1mm
Label height max. :
120mm
Paper roll inner diameter :
76.2mm
Label outer diameter :
330mm
Specialty :
Adhesive Labels
Electric machine :
Imported motor
Domain :
Bevarage/Drinks/Daily Chemical
Round products diameter :
30-110mm
Description

Fully automatic pressure-sensitive wrap around labeler for bottles or cans

Advantages

1 , Its designed to wrap labels around round bottles and other cylindrical products that are stable when standing vertically. Vertical wrap labeling systems are available in several formats depending on production requirements. For instance a simple three roll wrap labeler is a great machine for speeds of 2500 bottles per hour and under.

2. For front and back labeling when both labels are printed on the same roll. Another type of vertical wrap labeling system is more of a continuous motion machine where bottles are spaced and labels are dispensed as the bottle meets up with the label dispense point and the bottle is captured between a pressure pad assembly and a belt that spins the bottle at the same rate of speed as the label dispense speed.

3. This type of labeler is driven by servo drive motor.

4, plus one sensor ,can realize orientation labeling of the round bottles.

5, Suit for diameter 30-110mm bottles,95% round bottle can use this machine

6, Particularly suitable for the whole high demanding paste; three-roller automatic orientation can greatly reduce the cone due to product labeling and other unknown factors that caused the error(Which can be achieved with one label of round bottle any paste;installing one sensor can achieve positioning stickers, one label, two labels symmetric and positioning for round bottle).

7, We can also design according to your requirement

Technical Parameters

Production speed

45m/min

Labeling accuracy

±1mm

Label max width

190mm

Bottle diameter

30-100mm

Label inner diameter

76.2mm

Label outer diameter

 Max330mm

Outline size

L2000×W700×1400mm

Air source

4-6KG 30L/MIn

Using power

220V 50HZ 1200W

Product Characteristic

1 , The machine is applicable to label cylinder bottles for daily chemicals,beverages,pharmaceuticals etc.

2 , The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.

3 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy,without air bladder,with special design,no need the structure of separate bottle it makes the system easier,higher efficiency.

4 , The range of labels is extended because of hign-power servo motor.Solves the common problem of the insufficient strength.

5 , The machine adopts our company patent technology.The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.

6 , It can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.

7 , The advanced kind human interface system,on-line helping system,really human-machine

communicating,it is easy to operate so the worker can operate the machine in several hours.

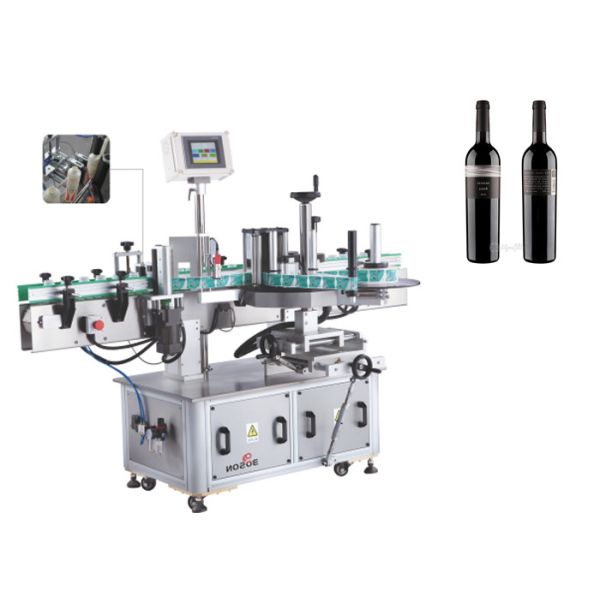

Labeling machine picture
