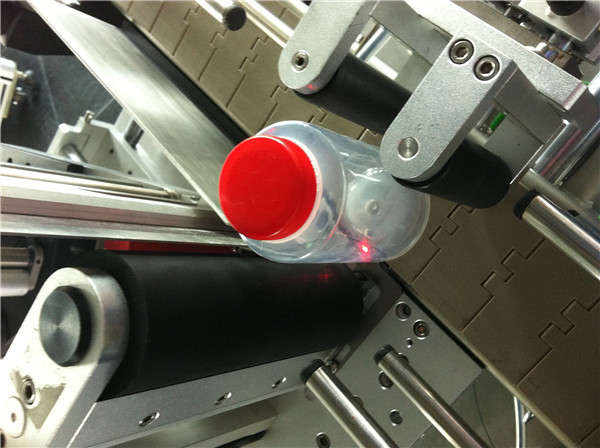

Pawpaw / Guava Round Bottle Sticker Labeling Machine For Drink Field
Pawpaw / Guava Round Bottle Sticker Labeling Machine For Drink Field
Specifications
Brand Name :
Boson
Model Number :
WT-630GS
Certification :
CE
Place of Origin :
Guangzhou
MOQ :
1 Set
Price :
10000USD-38000USD
Payment Terms :
T/T, L/, Western Union, L/C
Supply Ability :
40 Set/Month
Delivery Time :
20days
Packaging Details :
Woodcase(Inner with PE packaging film)
Production speed :
45m/min
Labeling accuracy :
±1mm
Label max width :
190mm
Inner diameter :
76.2mm
Outer diameter :
330mm
Using :
Adhesive Labels Bottles
Description

Pawpaw / Guava Round Bottle Sticker Labeling Machine For Drink Field

Technical Parameters

Production speed

45m/min

Labeling accuracy

±1mm

Label max width

190mm

Bottle diameter

30-100mm

Label inner diameter

76.2mm

Label outer diameter

 Max330mm

Outline size

L2000×W700×1400mm

Air source

4-6KG 30L/MIn

Using power

220V 50HZ 1200W

Product Characteristic

1 , Using new style machine head (patent design),convient to adjust,new design,good stability.

2 , The machine adopts the special structure of air driving and labeling rollers with high labeling accuracy.

3 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy,without air bladder,with special design,no need the structure of separate bottle it makes the system easier,higher efficiency.

4 , The range of labels is extended because of hign-power servo motor.Solves the common problem of the insufficient strength.

5 , The machine adopts our company patent technology.The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.

6 , It can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.

7 , Advanced control system program, high precision of label stop.

Range

1 , This machine is apply to the Daily Chemical,Food and Beverage Industry.

2 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

3 , Labeling max width is 190mm(can be raised according to the require)Bottle diameter:30-100mm.

4 , The air pressure pump of air source is 4-6KG,about 30L/MIn.

Advantages

1 , The machine’s Using power,dimension,Weight are customized.

2 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

3 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.

Details

Pawpaw / Guava Round Bottle Sticker Labeling Machine For Drink Field
