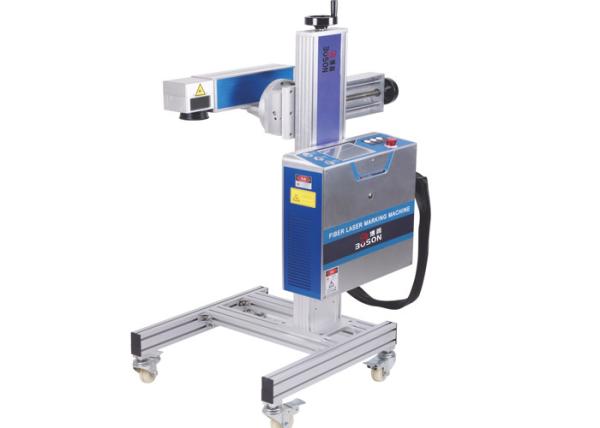

20W Fiber Laser Marking Machine , Laser Printing Machine Air cooling Method
20W Fiber Laser Marking Machine , Laser Printing Machine Air cooling Method
Specifications
Brand Name :
Boson
Model Number :
BS-D2010i
Certification :
CE
Place of Origin :
Guangzhou
MOQ :
1 Set
Price :
10000USD-38000USD
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100Sets/Month
Delivery Time :
7days
Packaging Details :
Woodcase(Inner With PE Packaging Film)
Output Power :
20W
Machine weight :
25kgs
Interface :
Touch screen
Materail :
Aluminum structure
Machine Size :
730mm x 137mm x 192mm
Cooling Method :
Air cooling
Environmental conditions :
External temperature 10℃-40℃ humidity≤95%
Description

20W Fiber Laser Marking Machine , Laser Printing Machine Air cooling Method

Fiber laser Characteristic

1. The machine is made up of laser generator, deflection galvanometer ,photoeletric sensor,controller and power

2. Widely used in metel ,PE product (Mixed material need samples to test)

Laser machine Features

1. Microcomputer system, prevent power off

2. Red light focusing or located

3. USB port ,adjust the size

4. Software changing flexiable,easy operation,more stable

5. Warranty one year

Technical Parameter

The Material Aluminum Structure

Rated Power

20W

The Weight

25KG

Power Demand

220V 50/60Hz,300W

Marking Range

110mm×110mm (option)

Marking Speed

≤12000mm/s

Cooling Method

Air Cooling

Environmental conditions

External temperature of 10℃-40℃ humidity≤95% without condensing and vibration

Machine dimension

500mm×450mm×160mm
Proudction line speed 0-189m/min (up to the material)
Interface Touch screen

Product Characteristic

1.This machine is made of generator laser, lens, photoelectric sensor, main controller board and power.

2. It can marking under flying status, and can count it when working. Raster font, vector font for choosing.

3.Can non-stopping working for 24 hours.

The product own the following advantages

1. Small in size with the integrated touch screen

2. High speed flying marking system

3. Raster font, vector font for choosing

4. No limiting characters in the working area

5. Economical and low maintenance cost

6. We import advanced foreign technical and parts to keep the machine’s competitiveness. Such as generating laser and the lens, which can meet almost marking need.

7.The machine is small size so it takes small space. Widely used in food& beverage ,medicine cosmetics industry and garment industry.
