Manual Three Phase 380V 440V 710mm 15HP Terrazzo Floor Grinder
Manual Three Phase 380V 440V 710mm 15HP Terrazzo Floor Grinder
Manual Three Phase 380V 440V 710mm 15HP Terrazzo Floor Grinder
Manual Three Phase 380V 440V 710mm 15HP Terrazzo Floor Grinder
Specifications
Brand Name :
Merrock
Model Number :
V12-710
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
USD1000-3500
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
20
Delivery Time :
30
Packaging Details :
Iron frame+carton
Product name :
Manual Three Phase 380V / 440V 710mm 15HP Terrazzo Floor Grinder
Voltage (V) :
380V/460V
Motor (HP) :
15HP
Inverter (HP) :
15HP
Working area :
71*71cm
Revolution Speed :
0-1500RPM
Water tank :
Yellow
Apply to :
marble granite concrete epoxy floor grinding polishing
Description

Manual Three Phase 380V / 440V 710mm 15HP Terrazzo Floor Grinder

Quick Detail:

Product name

Manual Three Phase 380V / 440V 710mm 15HP Terrazzo Floor Grinder

 Application Marble, granite, terrazzo, concrete and quartzite floor
Type V12-710 Function Leveling, polishing, grinding, renovating

Description:

1. Wtih multi-functional grinding plate is available for all kinds of diamond resin pads and metal blades.
2. Manual Three Phase 380V / 440V 710mm 15HP Terrazzo Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
5. With vacuum cleaner interface could install a industrial vacuum cleaner outside.
6. V12-710 with water tank can wet and dry grinding.
7. It's applied to marble, granite, terrazzo, concrete floor, natural stone floor and quartzite floor etc.
8. It's easy to control and has stable performance.

9. It's best choose for professional systems.

Application:

Manual Three Phase 380V / 440V 710mm 15HP Terrazzo Floor Grinder it's for marble floor leveling, granite floor polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...

Type S12-710
Phase 3
Voltage 380V
Motor 15HP
Inverter output 11KW
Grinding Speed 0-1500rpm
Grinding width 710*710mm
Grinding Heads 12 pieces
Grinding plate 4 pieces
Water tank 30L
NW (KG) 375
GW (KG) 425

Feature:

1. Manual Three Phase 380V / 440V 710mm 15HP Terrazzo Floor Grinder with magnetic plate.

2. 710mm big width improve the working efficiency.

3. V12-710 can use the dry and wet resin polishing pads, metal diamond grinding blades.

4. Save time - ready for further treatment.

5. Environmentally friendly - save energy.
6. Improve your working environment - smarter working methods.

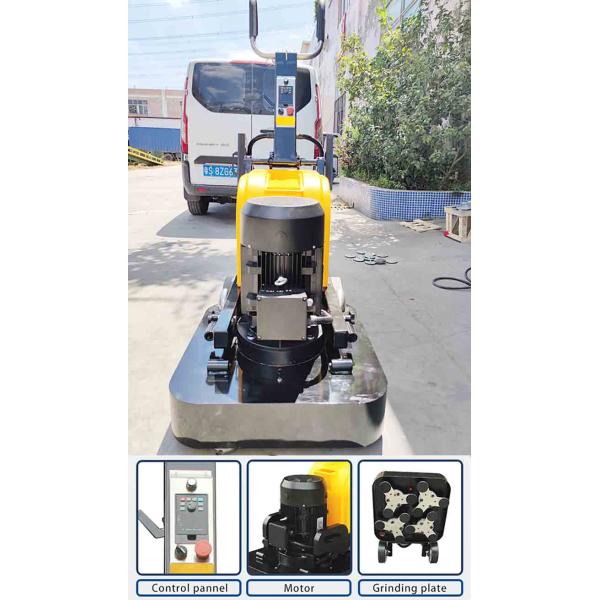

Detail picture:

Manual Three Phase 380V 440V 710mm 15HP Terrazzo Floor Grinder

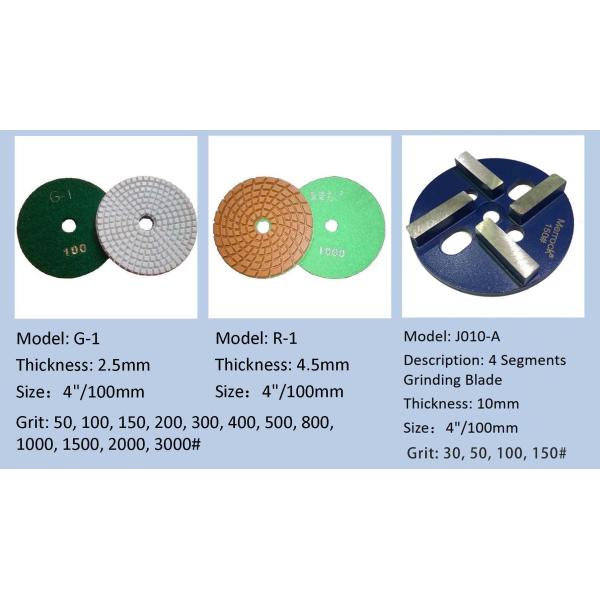

Tools for V12-710:

Diamond resin polishing pads ( Wet polishing pad / dry polishing pad / renovation pad)

1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

Diamond metal grinding shoes (J009) for concrete terrazzo and epoxy floor

Metal diamond grinding discs for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor

Solution for concrete floor:

Manual Three Phase 380V 440V 710mm 15HP Terrazzo Floor Grinder

1. Metal diamond grinding blade

J009 30#

J009 50#

J009 100#

2. Resin diamond wet polishing pad

R-1 50#

R-1 150#

R-1 300#

R-1 500#

3. Resin diamond dry polishing pad

G-1 800#

G-1 1500#

Packing:

Carton + iron frame (Export package)


catalog-grinder polisher.pdf
