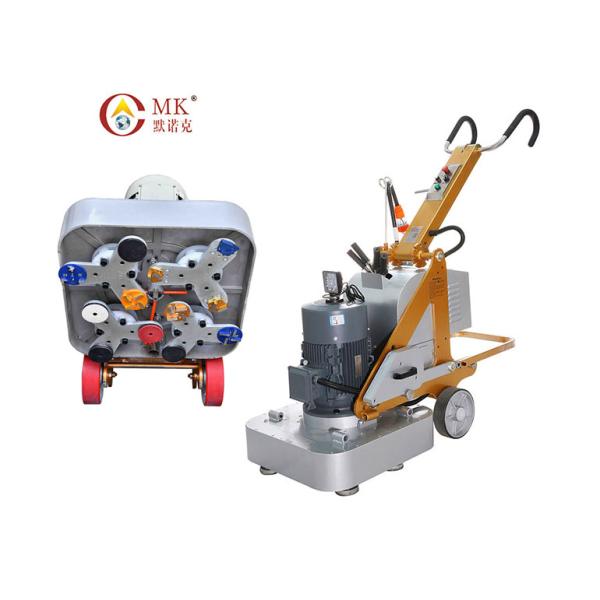

Aluminum Casting Gear Box 440V 15KW Concrete Grinding Equipment
Aluminum Casting Gear Box 440V 15KW Concrete Grinding Equipment
Aluminum Casting Gear Box 440V 15KW Concrete Grinding Equipment
Aluminum Casting Gear Box 440V 15KW Concrete Grinding Equipment
Specifications
Brand Name :
MERROCK
Model Number :
S12-700 15KW
Certification :
CE
Place of Origin :
Made-in-China
MOQ :
1pc
Price :
USD 2500-3500
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
20
Delivery Time :
30
Packaging Details :
Iron frame+carton, Export wooden box
Product name :
Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder
Voltage(V) :
380V/440V
Power(HP) :
15KW/20HP
Inverter(HP) :
15KW/20HP
Work area :
700*700mm
Grinding Speed :
0-1500RPM
Water tank :
30L
Gear box :
Aluminum Casting
Function :
Surface preparation, marble granite floor grinding polishing
Description

Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder

Quick Detail:

Name

Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder

 Application Marble, granite, terrazzo, concrete floor
Type S12-700 415V Function Leveling, polishing, grinding, renovating

Description:

1. Aluminum alloy die-casts one body base plate is hard and don't deform, its work efficiency is about 3 pieces of MRK-V12-510.
2. Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder with removable led light can work at night.
5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
6. With vacuum cleaner connector could install a vacuum cleaner outside.
7. It with water tank can wet and dry grinding.
8. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
9. It's easy to control and has stable performance.

Application:

Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...

Model S12-700 S12-700
Phase three three
Voltage 380V 380V
Power 15HP/11KW 20HP/15KW
Inverter 15HP/11KW 20HP/15KW
Speed 0-1500rpm
Work width 700*700mm
Heads 12 pieces
Grinding plate 4 pieces
Water tank 30L
NW(KG) 480/500
GW(KG) 530/550
Packing size(CM) 110x70x134cm

Feature:

1. Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder with aluminum alloy die-casts one body base plate.

2. Use helical to reduce the noise of machine.

3. It can use the dry and wet resin polishing pads, metal diamond grind blades.

4. With storage bin can collect some tools.

5. With led light can work at night.

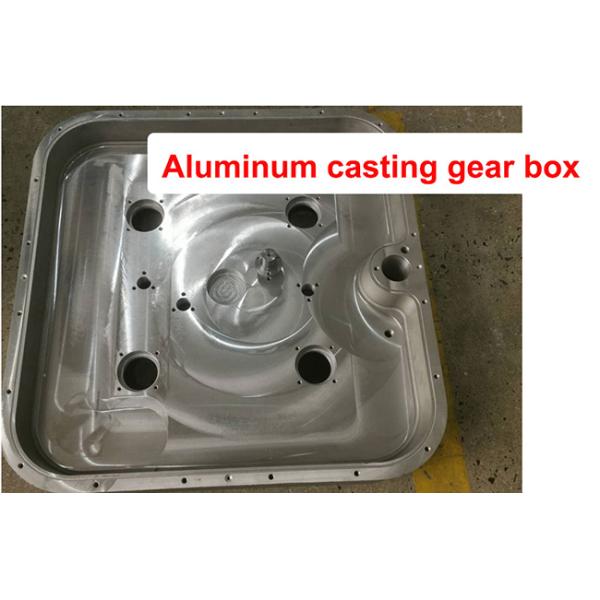

Detail picture:

Aluminum Casting Gear Box 440V 15KW Concrete Grinding Equipment

Aluminum Casting Gear Box 440V 15KW Concrete Grinding Equipment

Tools for the machine S12-700:

Diamond polishing pads (Include wet polishing pad, dry polishing pad and renovation pad)

1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.

Metal diamond grinding shoes (J007 and J007B) for concrete terrazzo and epoxy floor

Metal diamond grinding discs (J008, J009, J010, J011) for concrete terrazzo and epoxy floor

Metal diamond grinding blades for concrete terrazzo and epoxy floor

16# J013 diamond grinding disks for removing the old epoxy floor

J016 PCD diamond grinding shoes for removing the old epoxy floor

Packing:

Carton + iron frame

Size: 1100x700x1340mm

S12-S6 concrete grinder.pdf
