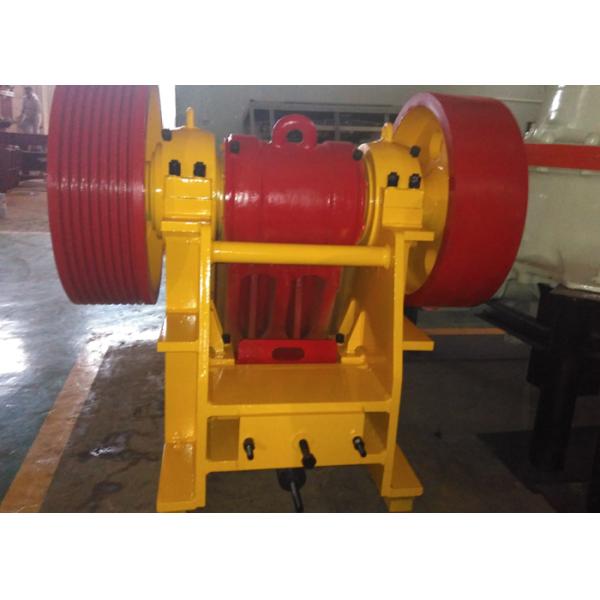

Gold Ore Quarry PE-400x600 Jaw Crusher With AC Motor Power 30KW
Gold Ore Quarry PE-400x600 Jaw Crusher With AC Motor Power 30KW
Gold Ore Quarry PE-400x600 Jaw Crusher With AC Motor Power 30KW
Gold Ore Quarry PE-400x600 Jaw Crusher With AC Motor Power 30KW
Specifications
Brand Name :
White Lai
Model Number :
PE400X600
Certification :
CE, ISO
Place of Origin :
Shanghai, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 set per month
Delivery Time :
15 working day
Packaging Details :
main unit in nude, motor and other accessories in wooden case
Condition :
new
Wear parts :
fix jaw plate, movable / swing jaw plate
Color :
yellow
Process :
steel sheet welded
Feed opening :
400x600 mm
Warranty :
12 Months
Motor power :
30kw
Description

Small Size PE-400x600 Jaw Crusher With Motor Power 30KW Specs:

Model: 1624 (PE-400x600)

Feed opening: 400x600 mm

Max. Feed size: 340 mm

Capacity: 16-85 tph

Eccentric shaft rotation speed: 275 r/min

Power: 30 kw

Discharge opening range: 40-100 mm

Weight: 6.5 t

Small Size PE-400x600 Jaw Crusher With Motor Power 30KW Working Principle:


The working principle of PE series jaw crusher is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, jaw crusher is easy to maintain and repair. These features promote its popularity to a great extant.


PE series jaw crusher list:

Model Size of feed opening Max. feed size Capacity Eccentric shaft rotation speed Electric motor power Adjustable range of discharge opening Weight
(mm × mm) (mm) (t/h) (r/min) (kW) (mm) (t)
PE-150x250 150x250 125 1~3 300 5.5 10-40 0.88
PE-250×400 250×400 210 5~30 300 15 20-60 2.8
PE-400×600 400×600 340 16-65 275 30 40-100 6.5
PE-500×750 500×750 425 45-100 275 55 50-100 10.1
PE-600×900 600×900 500 50-120 250 55-75 65-160 15.5
PE-750×1060 750×1060 630 52-180 250 110 80-140 28
PE-800×1060 800×1060 650 85-143 250 110 100-200 30
PE-870×1060 870×1060 670 181-210 250 110 200-260 30.5
PE-900×1200 900×1200 750 140-260 200 110-132 195-165 50
PE-1000×1200 1000×1200 850 160-300 200 110-132 195-265 51
PE-1200×1500 1200×1500 1020 300-600 180 160 150-300 100.9
PEX-250×750 250×750 210 8~30 330 22 25-60 4.9
PEX-250×1000 250×1000 210 16-52 330 30-37 25-60 6.5
PEX-250×1200 250×1200 210 20-60 330 37 25-60 7.7
PEX-300×1300 300×1300 250 20-90 330 55 20-90 11

Small Size PE-400x600 Jaw Crusher With Motor Power 30KW Shipment:

Gold Ore Quarry PE-400x600 Jaw Crusher With AC Motor Power 30KW

Guarantee and After-sales Service:


1- One years guarantee for main machine, excluding wearing parts
2- Experienced technicians and guidance are available
3- 24 hours technical support by e-mail, by phone.
4- Use-friendly English user manual
5- Engineers could be dispatched to the quarry site, if requested by customer.
