4 Axis Stone Carving Machinery Granite Marble Polished Cutting
4 Axis Stone Carving Machinery Granite Marble Polished Cutting
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
MCDK-1325
Certification :
CE,ISO,ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic FIlm
Voltage :
380V/50Hz
Weight :
2000KG
Use :
Granite,Marble
Condition :
New
Dimension(l*w*h) :
1300*2500*300mm
After-sales service provided :
Online support
Type :
Stone Cutting Machine,CNC Router
Warranty :
One Year
Product name :
stone cutting machine
Application :
Stone Industrial,Stone Engraving or Cutting
Description

Rock Carving Machine Characteristics:

1. Stable construction: thick wall sq . tube welding, aspect plate tempering treatment, the lathe your bed is processed by five side milling processing center, getting older treatment, solid without deformation.

2. Do it yourself structure design, guaranteed safe mode, to guarantee the speed and reliability of operation.

3. It adopts gantry type movement, and can process the materials on the significant table widely, which is convenient for operation.

4. X / Con axis adopts high-precision rack drive, with high speed and precision.

5. The particular three-axis adopts the square linear guide rail to guarantee the high precision of the device and bear the heavy load

Granitic, marble, bluestone, amazingly stone, microcrystalline rock, artificial stone, a glass, mural, village batiment, tombstone, milestone, ornamental skirting line, and so forth can be engraved and carved conveniently.

Program field of rock machine:

one About three dimensional carving of natural granite, marbled and various unnatural stones.

2. Within Tombstone industry, hard tile industry, home decoration and pedaling industry, characters, outlines, reliefs and hollows can be created on stone, a glass and ceramic ceramic tiles.

3. Dragon support beams, stone lions, wrist watches, capitals, stone hand rails, three-dimensional figures and animal statues, and so on.

4. Cabinet unnatural stone, quartz rock table and clean basin, tea pot, European style building, and so on

Technical Paramaters:
X working size
1800mm
Y working size
2500mm
Z working size
400mm
transportation
X/Y axis is rack gear,Z axis is screw
Maximum work rate
15m/min
Spindle power
5.5kw*3

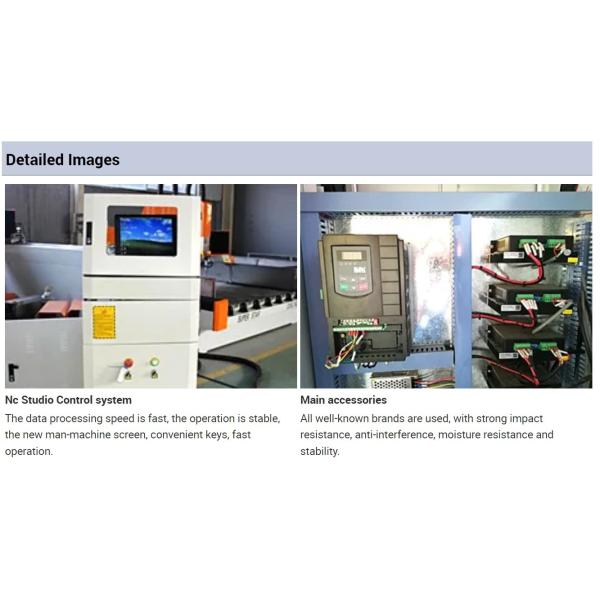

Control system
Nc Studio
Driver
Step motor/Servo motor
Working Voltage
380V 50HZ
Cooling method
Water-cooling
Machine Size
3600*2800*2500
Weight
About 2500kgs
