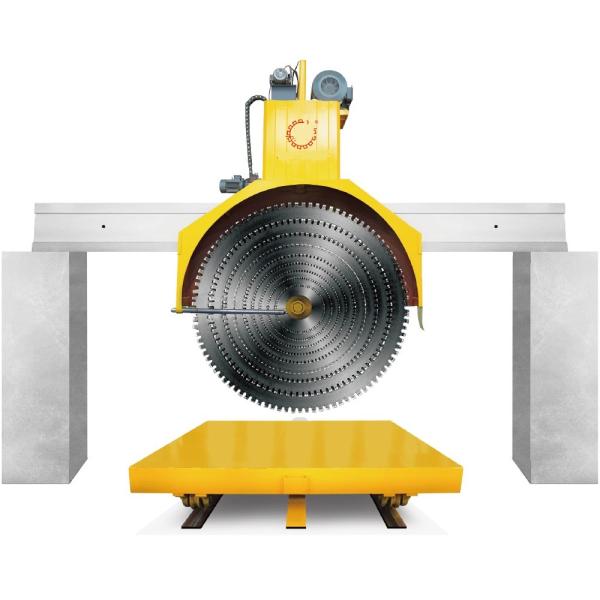

2500 Blade Bridge Type Hydraulic Up And Down Stone Cutting Machine
2500 Blade Bridge Type Hydraulic Up And Down Stone Cutting Machine
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
MCDQ-2500
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic FIlm
Voltage :
380V/50Hz
Weight :
12000kg
Use :
block cutter
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas
Type :
Stone Cutting Machine
Warranty :
One Year
Description

2500 Blade Bridge Type Hydraulic Up And Down Stone Cutting Machine

QSQ2500 Bridge Type Hydraulic up and Lower Stone Cutting Device:

QSQ2200 2500 3 thousands combines different diameters of blades functioning simultaneously as multiblade cutting. It offers screw-rod lifting system in addition to hydraulic lifting method for choice. The particular crossbeam moves regarding feeding so the desk for block is usually not necessary ( which does not necessarily supply along together with machine, limited on request ). Large duty strcuture, reasonable control system, effortless operation together together with " Wanlong" cutting tool give high creation as well as make the particular finish slab together with flat surface, zero tapper, It is usually also flexible inside modification for Individual blade cutting.

Technical Parameter

Model QSQ-2200 QSQ-2500 QSQ-3000
Max. blade diameter/mm 2200 2500 3000
Max. cutting length/mm 3200 3000 2500
Max. cutting width/mm 1800 1800 1800
Max. cutting height/mm 950 1100 1350
Max. No. of blades 9 3 1
Main motor power/kw 55 55 55
Power requirement 3 Phs 380V 50Hz(other is available)
Overall dimension (LxWxH)/mm 7300X3800X5500 7300X3800X5500 7300X3800X6100
Total Weight/kg 10,000 11,000 12,000

Merchandise Features:

High performance for cutting obstruct into slabs together with multi-blade combination, this specific machine is the particular perfect equipment regarding creating large slabs.

one SIEMENS major motor with better seats.

2. PANASONIC PLC and inverter.

3. Encoder regarding X, Y, Z . movement.

4. Sturdy cast iron HT200.

5. Double V-shape guide rails improve the smooth slicing and movement.

six. Touch sensitive -panel Easy for staff member to operate.

several. Locking system about vertical beam in order to protect the device collaption.

8. Fast hydraulic lifting system.

being unfaithful. 110sqm per 12 hours for method hard granite.
