Automatic Bridge Saw Machine
Automatic Bridge Saw Machine
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
MCQJ-400
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic FIlm
Voltage :
380/220/415V,3ph
Weight :
5000kg
Use :
granite and marble
Condition :
New
Dimension(l*w*h) :
6000x5000x2600mm
Type :
Stone Cutting Machine,Bridge Saw
Warranty :
One Year
Control system :
PLC SYSTEM
Product name :
stone cutting machine
Color :
customized
Motor :
AC Servo System
Application :
Stone Industrial
Spindle :
13kw
Name :
stone cutting machine,Bridge Saw Granite Marble Stone Cutting Machine
Blade diameter :
350-600mm
Function :
STONE CUTTING,marble/granite edge cutting machine
Keyword :
Stone cutting machine,CNC Marble Cutting Machine
Description

Automatic Bridge Saw Machine

Features:

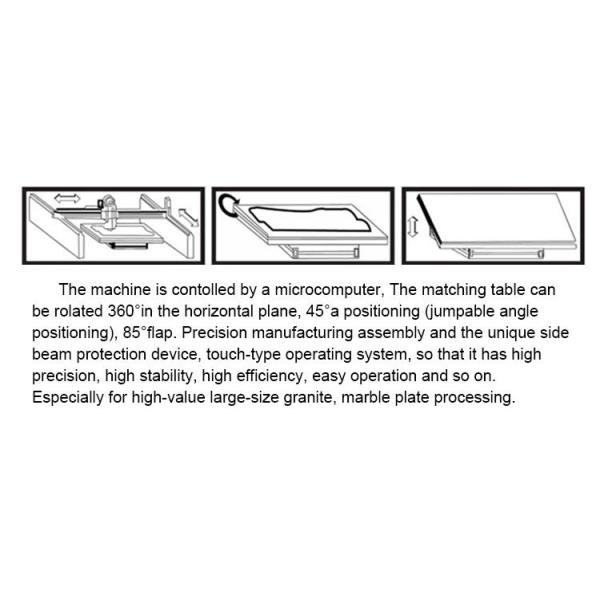

With Micro Computer control system to achieve multi programming methods.Easy to do auto-cutting,edge polishing,slotting,kitchen countertop processing,special shape processing and other operations.

Compact structure,small area coverage,no need to do ground foundation.

Powerful functions combined in one machine to achieve almost all processing works for small sized factory.

Strenth:

1. Durable:

Good quality steel is used as the mechanical parts and reliable imported electric parts are used to guarantee high reliability & durability.

2. Precise:

a, Crossbeam movement(Y-axis) along linear guide way with high precision.
b, Z-axis movement by lead screw.
c, Magnetic ruler is adopted for slicing measure.
d, Laser device for accurate alignment.

3. Use-friendly:

a, Touch screen contral panel and all 3D movement is controlled by micro computer to realize automatic operation available.
b, Both manual and automatic operation available.
c, Worktable can rotate 90° or 360°(optional).

4. Multi-functional:

With optional sensor, profiling function can be added.

Appellation
Unit
MCQJ-450
MCQJ-600
MCQJ-800
Blade Diameter
mm
300~450
350~600
400~800
Max.Verical stroke
mm
230
350
350
Worktable Dimension
mm
3200x2000
3200x2000
3200x2000
Worktable Tilting Degree
N°
0-85
0-85
0-85
Worktable rotating degrees
N°
0-90/0-360
0-360
0-360
Max.Cutting Depth
mm
110
180
280
Water Consumption
m³/h
1.8
1.8
1.8
Main Motor
kw
15
18.5
22
Total Motor
kw
24.5
26
26
Overall Dimesion(LxWxH)
mm
6000x4800x2900
6000x4800x3000
6000x4800x3000
G.W.
kg
4500
5600
5600
