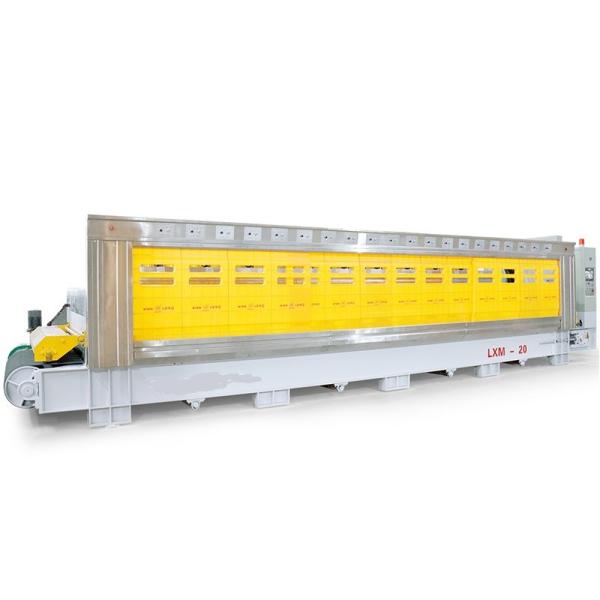

Automatic Stone Polishing Machine
Automatic Stone Polishing Machine
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
ZDMJ-12
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic FIlm
Voltage :
380/220/415V
Weight :
20000 kg
Use :
granite and marble
Condition :
New
Dimension(l*w*h) :
9200x2200x2200mm,
Type :
Stone Polishing Machine
Warranty :
1 Year
Control system :
DSP(NC-studio control)
Product name :
Automatic Stone Polishing Machine
Color :
customized
Motor :
AC Servo System
Application :
Stone Industrial
Spindle :
7.5kw
Name :
Stone Polishing Machine
Function :
Marble Granite Grinding Polishing Machine
Keyword :
Stone Polishing Machine
Description

Multifunctional Manufacturer Automatic Polishing Machine For Stone Slate
Mode: SCT-8/12/16/20/24(disc type):

Usage: The machine is made by standard castings and steel, branded electrical equipment made in German, Japan and Taiwan, as well as branded bearing, motor and gear reducer.

Product Features:

1: Adopted advanced combination of grinding head and the control mode.
2: The conveying belt is famous brand with same thickness, which assures the thickess of slab uniform.
3: Low labor intensity ,and the finished material are smoothe and gloss.
4: PLC controlling system, touch screen,easy operation,one worker can simply handle a machine.


The control system of this machine adopts PLC terminal control with LCD touch screen terminal as HMI for parameter setting and fault prompts during operation, etc. It is applicable to continuous grounding and polishing granite tile. Operating speeds of plate conveying and crossbeam of polishing disc are controlled by frequency converter; working pressure and the polishing width of tile-plate are adjustable within the setting values. This machine can also automatically identify the shape of tile-plate, so that each polishing disc (polishing head) could automatically lift and lower according to the identified shape of tile-plate, and conduct tracking records for tile-plate polishing at the same time. The overall machine is produced according the standard requirements with performance up to the leading domestic level.

Product Specification:

Model Unit SCT-8 SCT-12 SCT-16 SCT-20 SCT-24
The number of polishing heads piece 8 12 16 20 24
Thickness of the effective work mm 15-50 15-50 15-50 15-50 15-50
Effective working width mm 300-1300 300-1300 300-1300 300-1300 300-1300
Belt feed rate m/min 0-2.5 0-3 0-3.5 0-4 0-5
Grinding motor power kw 7.5 7.5 7.5 7.5 7.5
Total power kw 65 95 125 155 190
Water consumption m3/h 8 12 16 20 25
Dimensions m 4.2x2.2x2.5 6x2.2x2.5 7.8x2.2x2.5 9.3x2.2x2.5 10.8x2.9x2.5

Automatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing Machine

Automatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing MachineAutomatic Stone Polishing Machine
