Stone Saw Machine For SandStone Quarrying
Stone Saw Machine For SandStone Quarrying
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
MCHL-1400
Certification :
CE, ISO9001:2015, ISO14001:2015
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
50 Sets Per Month
Delivery Time :
20 days
Packaging Details :
Plastic FIlm
Product Name :
Stone Saw Machine for SandStone Quarrying
Type :
Stone Saw Machine
Application :
sandstone, limestone and lieterate
Warranty :
one year
Key Selling Points: :
High Productivity
Voltage: :
380VAC/50Hz-3phrase
Core Components: :
Motor, Bearing, Gear, Gearbox
Brick size: :
38.5/39*20*20cm
Description

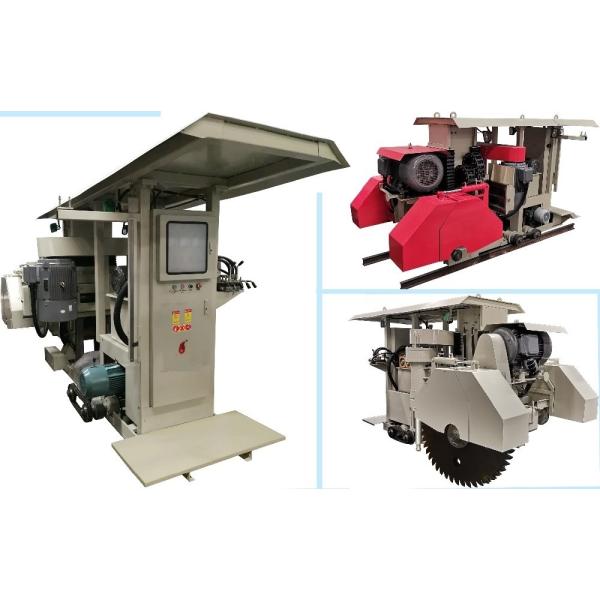

Stone Saw Machine for SandStone Quarrying

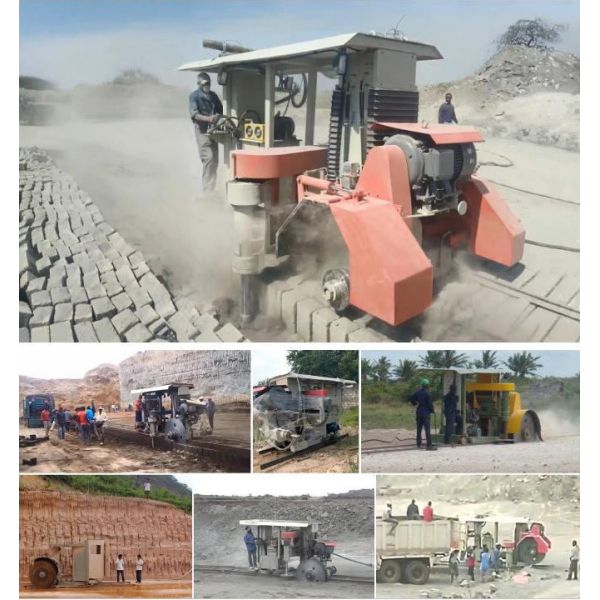

Stone Saw Machine for SandStone Quarrying is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.
Two-cylinder guide is used for lifting, which makes the whole structure more stable and flexible.
Higher automatically, it is suitable for all kinds of sandstone.

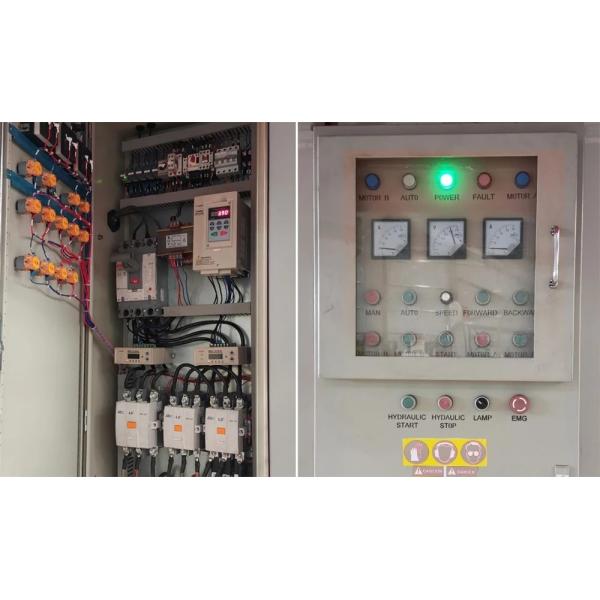

2.With automatic intelligent frequency conversion control technology, more Convenient operation,
higher precision and efficiency, novel appearance.
3.Characteristic of the rocker arm, swing arm and main transmission frequency controls the speed,
Steady and rapid lifting the blade, suitable for various of cutting.


Main Features:
1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong,
straight up and down runs stably.
2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.
3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.
4) Powerful motors with 93% efficiency, tall output and low consumption.

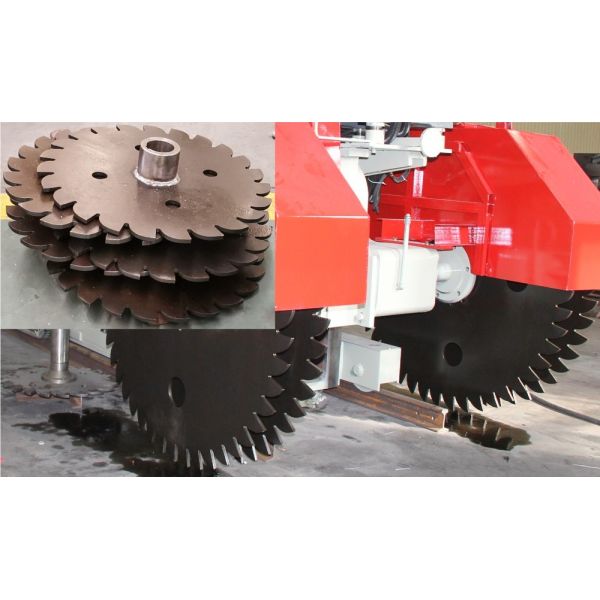

Blades are made of Q460c manganese steel(difficult deformation)+heat treatment,HR up to 52. The cutter heads are made of cemented
carbide,hard,wear-resisting,heat-resisting and corrosion resisting.

Thechincal Data for MCHL-1400 Sandstone Cutting Machine
Power of Motor
Vertical
kw
75
Horizontal
kw
45
Rail
kw
5.5
Main Performance Parameters
Moving speed (forward & backward)
m/min
10-45
Max. distance of cylinder lifting
mm
700
Max. cutting depth
mm
520
Blade
Diameter of the vertical
mm
1330
Diameter of the horizontal
mm
600
Thickness
mm
11.5
Dimensions
(L x W x H)
mm
4835x2450x2900
