Stone Hydraulic Press Machine
Stone Hydraulic Press Machine
Specifications
Brand Name :
StoneSawMachine.com
Model Number :
MCSM-70T
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic FIlm
Voltage :
380/220/415V
Use :
granite and marble
Condition :
New
Dimension(l*w*h) :
1300*2500*300mm
Type :
Stone Cutting Machine
Warranty :
One Year
Control system :
PLC SYSTEM
Product name :
Stone Hydraulic Press Machine
Color :
customized
Motor :
AC Servo System
Application :
Stone Industrial
Spindle :
3/4.5/6KW water cooling spindle
Name :
stone cutting machine
Function :
STONE CUTTING
Keyword :
Stone cutting machine,CNC Marble Cutting Machine
Description

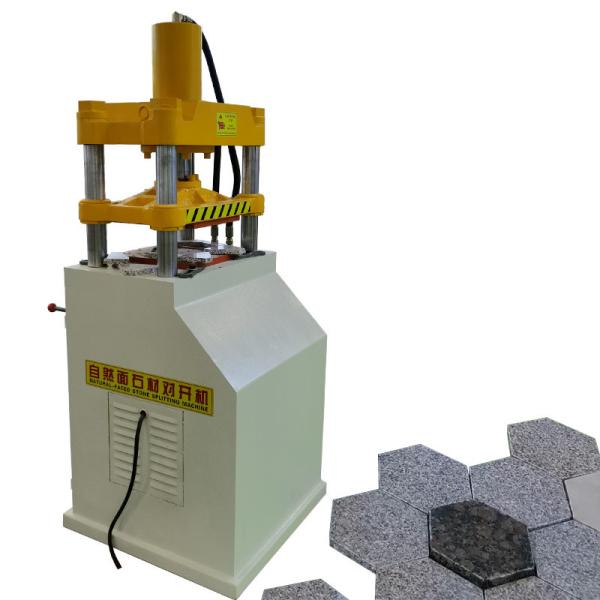

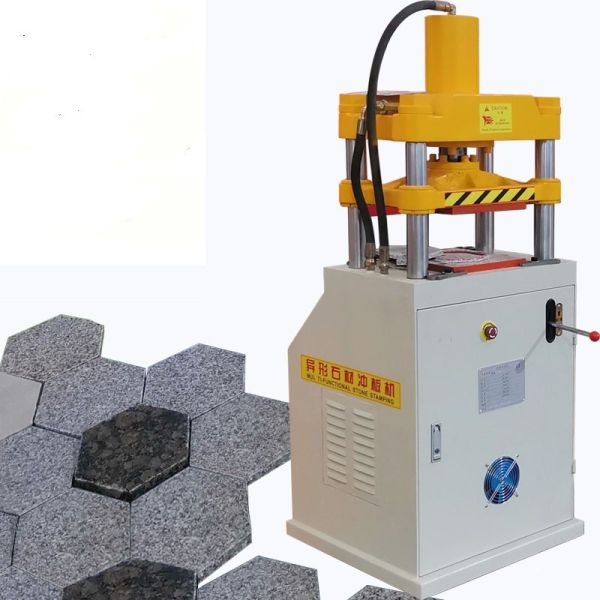

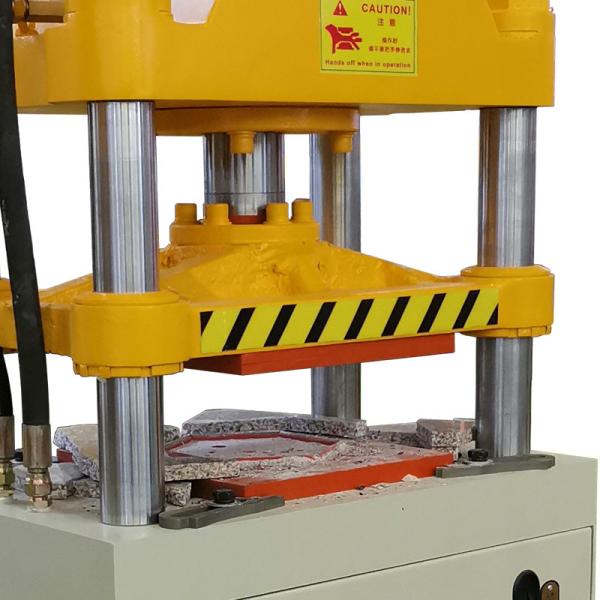

Stone Hydraulic Press Machine is an easy to operate dual-function hydraulic punching machine for processing artifical granite, marble slabs.

With this stone machine, you can

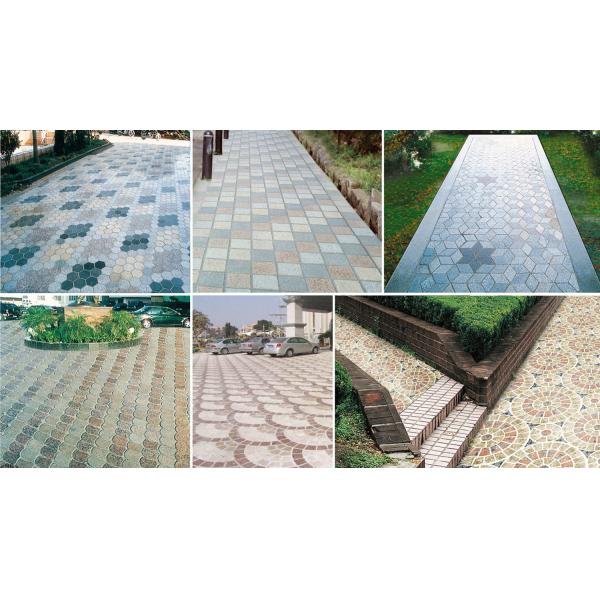

1) Turn waste to wealth --- Do with the leftover stone slabs /tiles, stamp/cut them into amazing paving stone bricks.

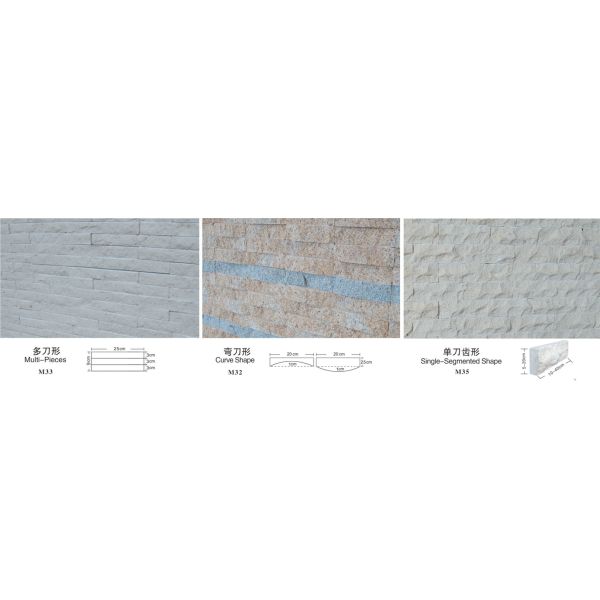

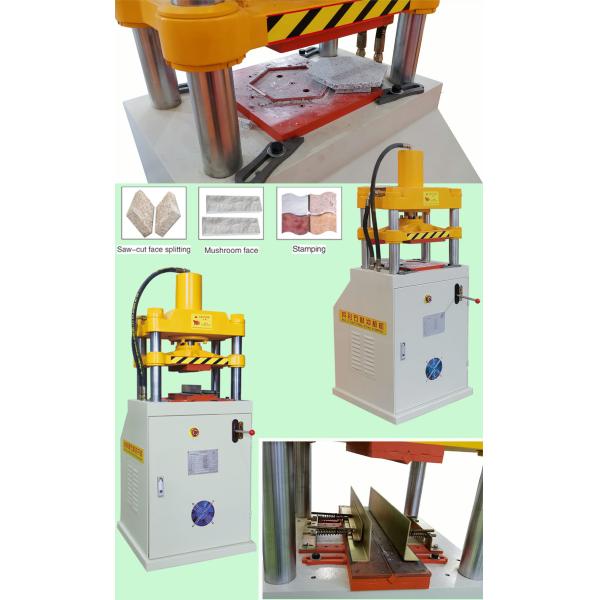

2) Split stone into two pieces of slabs with a rustic appearance, getting natural effect exterior wall tiles .

Main Features

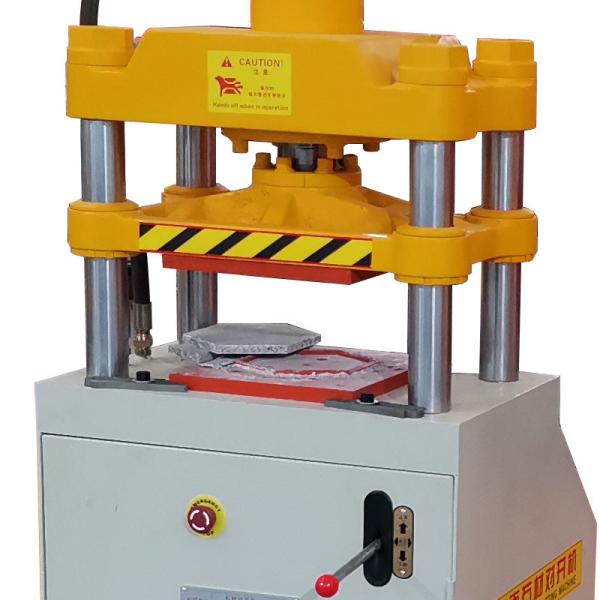

* Open frame machine model, simple to maintain
* Made of 4 strong iron pillars and high quality parts ensuring stability during working.
* Convenient to start and easy to operation
* Fast lift up movement improves the working efficiencty greatly .

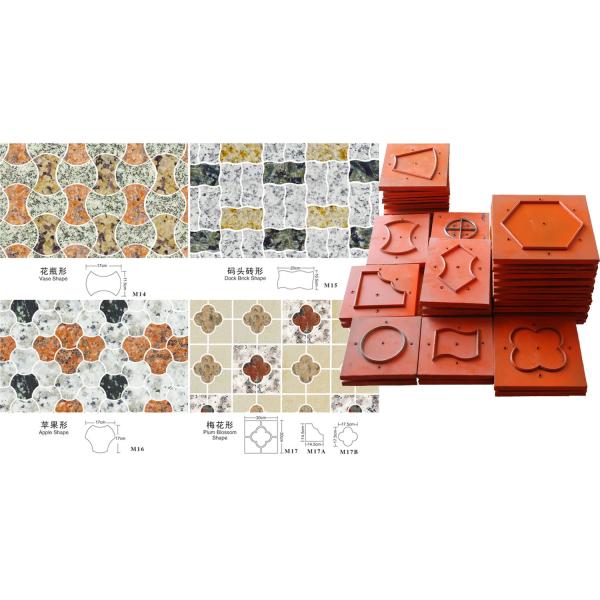

* Stamping moulds can be changed easily thanks to special clip-on for producing different types of patterns.
* Low cost and high productivity

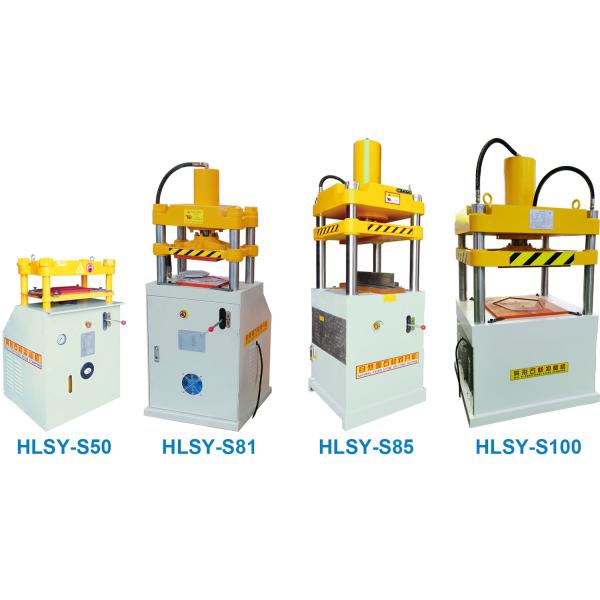

Technical Data
Model No.
HLSY-S50
HLSY-S81
HLSY-S85
Pressure force
ton
20
30
60
Blade feeding speed
mm/s
30
35
30
Max. working height
mm
50
100
300
Max. working length
mm
200
300
600
Output per hour
m2/h
7
15
20
Power
kw
3
4
4
Voltage / Frequency
V / Hz
380 / 50
380 / 50
380 / 50
Flow rate
L/M
10
10
17
Hydraulic oil grade
#
46
46
46
Oil tank capacity
L/kg
15 / 12
28 / 23
90 / 74
Gross weight
kg
700
850
1150
Dimensions ( L x W x H )
mm
650x600x1050
650x650x1600
620x620x2000

Stone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press MachineStone Hydraulic Press Machine
